# Mathematical Computations Using Bergman

### Jörgen Backelin, Svetlana Cojocaru, Victor Ufnarovski

ISBN:91-631-7203-8
Mathematics
Centre for Mathematical Sciences
Lund University
Box118, SE-221 00 Lund, Sweden
http:/www.maths.lth.se/
© 1999, 2000, 2002, 2004, 2005 by J.Backelin, S.Cojocaru, V.Ufnarovski

# Contents

1  A brief bergman tutorial
1.1  Preliminaries
1.1.1  Starting a bergman session
1.1.2  Ending a bergman session
1.1.3  What you need to know about Lisp syntax
1.2  Simplest calculations in bergman
1.2.1  Selecting alternatives
1.2.2  Commutative algebras
1.2.3  Non-commutative algebras
1.2.4  Normal form and reduction
1.2.5  Starting a new calculation
2  Computations in bergman
2.1  Introduction
2.2  Bergman: philosophy and approach
2.3  Bergman: main restrictions
2.4  The polynomial ring set up
2.4.1  Variable names and the flag raise
2.4.2  Ordering
2.4.3  Using eliminating ordering
2.4.4  Coefficients: background
2.4.5  Coefficients: choices
2.4.6  Weights handling
2.4.7  Rings exchange
2.5  Homogenisation
2.6  Choosing a strategy
2.7  Input-output modes for the polynomials
2.7.1  Commutative case
2.7.2  Non-commutative case
2.8  Calculating and using series
2.8.1  Hilbert series computation
2.8.2  Computation of Gröbner basis using known
Hilbert series

2.9  The jumping rabbit
2.10  Some bricks to build your own procedures
2.11  Modules over non-commutative algebras
2.11.1  Gröbner basis for modules over
non-commutative algebras

2.11.2  Hilbert series for modules over
non-commutative algebras

2.11.3  The Anick resolution and Betti numbers for the tri -vi -al module
2.11.4  Writing own procedures
2.11.5  The Anick resolution and Betti numbers for a right module
2.11.6  The Anick resolution and Betti numbers for right, two-sided ideals, and factor-algebras, considered as right modules
2.11.7  Working with the left modules
2.11.8  Betti numbers for two modules
2.11.9  Calculating Hochschild homology of an algebra
2.12  Bergman under Reduce
2.12.1  Working in the Reduce syntax
2.12.2  Parametric coefficients
2.13  Debugging in bergman
2.14  Customising bergman
2.15  Computations in bergman under shell
2.15.1  Problems of interface to bergman
2.15.2  Shell overview
2.15.3  Shell description
3  Bergman for the advanced user
3.1  References
3.1.1  Mode handling
3.1.2  Sustained operating mode alternatives
3.1.3  The mode designator tree structure
3.1.4  The mode handling procedures
3.2  Monomials and polynomials in bergman
3.3  Controlling the calculations process
3.4  The commutative Hilbert series procedures
3.5  User available flags
3.6  User available counters
4  Some useful appendixes
4.1  Bergman proceedings extending
Standard Lisp

4.1.1  Introduction
4.1.2  Fast variant Standard Lisp extensions
4.1.3  General Standard Lisp extensions
4.2  Formal description of bergman
4.2.1  Organisation of the programme source files
4.2.2  Overview of the (main) units and source files
4.2.3  Basic structures and naming conventions
4.2.4  Global structures and programme outline
4.3  Mathematical background
Index

# Chapter 1 A brief bergman tutorial

"If easy of use was the only valid criterion
people would stick to tricycles and never
try bicycles".
D.Engelbart

## 1.1  Preliminaries

Bergman is a system for computations in commutative and purely non-commutative algebra. It is mainly developed by Jörgen Backelin (Stockholm University). Some additional facilities are implemented in the framework of a joint project "Non-commutative computer algebra" executed by the Department of Mathematics at the Stockholm University in collaboration with the Lund University and the Institute of Mathematics and Computer Science of the Academy of Science of Moldova in Chisinau. The project is supported by the Royal Swedish Academy of Sciences which is gratefully acknowledged.
We would like to express our sincere gratitude to the first project leader and a faithful bergman user Prof. Jan-Erik Roos.
We also thank other people participated the project since its beginning: Alexander Podoplelov who took part in the developing of Anick resolution component, Sergey Verlan who took part in the elaboration of the Common Lisp version. Our colleagues Alexander Colesnicov and Ludmila Malahova are working on the project starting with 1994. They have drawn up the Common Lisp version, the bergman site and programmed two versions of shell: the first one under MS DOS and the current one in Java. Section 2.15 in this book is written together with them.
Bergman is public domain software available from the following address http://servus.math.su.se/bergman. It is written in Standard Lisp, the Lisp dialect underlying Reduce implementation. An alternative Common Lisp version is also supported for some platforms.
In principle, bergman can be used on all platforms where Reduce, PSL, or CLISP are implemented. We have implemented it on:
• MS Windows 95 and later (CLISP);
• Linux on different machines (PSL, Reduce, CLISP);
• Sun Solaris for Sparc and Sun Blade (PSL, Reduce, CLISP);
• Dec Alpha under OSF and Linux (PSL, Reduce).
For detailed information about different versions of operating systems and Reduce or Lisp releases, see the installation guide.
Bergman is far from a full computer algebra system. However, it may be run under Reduce and in the commutative setting be treated as any Reduce module.
Using bergman one can compute both for ideals and right modules:
• Gröbner basis
• Hilbert series
• Poincaré series
• Anick resolution
• Betti numbers
The last three features are destined to the graded non-commutative computations only.
One can find the description of bergman, including a demo version on its home page.
Of course, the demo version offers only limited possibilities, but you can try to solve your own problems.
Here we describe a version of bergman, installed under Reduce, and working in the Standard Lisp environment. In this installation the user can use both Reduce and Lisp syntax. Nevertheless most of the text is valid for other installations too. The Reduce-oriented syntax will be discussed in section 2.12.
For those who is unfamiliar with the Gröbner basis concept we refer to 4.3 for an elementary introduction in the subject.

### 1.1.1  Starting a bergman session

You can start a bergman session by typing bergman followed by Enter. When you are successful in starting the bergman session you will see a prompt. If the installation was under Reduce, the prompt (after some possible messages about memory and version) may look like:
4:
Now you maybe want to switch to the Lisp-mode. (If you prefer to work in the Reduce-mode read section 2.12 instead.) For this you simply type end; and then press Return key. You will see a new Lisp-prompt:
```
Entering LISP ...

Bergman 0.984, 14-Dec-2004

1 lisp>

```
(If your installation was without Reduce you are here from the very beginning). Of course, the date and the version can be different - it depends from the date when bergman was compiled on your computer.
Typically bergman will print a prompt such as
4 lisp >
at the beginning of the line you should enter. Whenever you see a prompt, bergman is waiting for you to enter new commands.
The Common Lisp version starts directly:
```  i i i i i i i    ooooo    o        ooooooo   ooooo   ooooo
I I I I I I I   8     8   8           8     8     o  8    8
I  \ `+' /  I   8         8           8     8        8    8
\  `-+-'  /    8         8           8      ooooo   8oooo
`-__|__-'     8         8           8           8  8
|         8     o   8           8     o     8  8
------+------    ooooo    8oooooo  ooo8ooo   ooooo   8

Copyright(c) Bruno Haible,Michael Stoll 1992, 1993
Copyright(c) Bruno Haible,Pierpaolo Bernardi,Sam Steingold 1998

Welcome to the BERGMAN system.

[1]>

```
Now you are ready for computations: [1] > is the input prompt. Lately we will not distinguish PSL and Common Lisp version and will use the word Lisp for both of them.

### 1.1.2  Ending a bergman session

The command (quit) followed by the Return key, ends a bergman session.
Example. Here you finish the session.
10 lisp > (quit)
In Reduce syntax you omit the parenthesis but add a semicolon, thus:
10: quit;
An alternative solution on some platforms is to use Ctrl-D; holding down the Ctrl-key while pushing one or several times on key "D" will make quit. This may work in Reduce syntax, too.

### 1.1.3  What you need to know about Lisp syntax

The user should realise that bergman is a Lisp program and whenever (s)he starts bergman (s)he works under Lisp and in the Lisp notations. Here we describe the necessary minimum of Lisp syntax to deal with bergman in the simplest cases.
First of all, all commands should be written within parenthesis - see Example above.
It is important that uppercase and lowercase may be different in Lisp. One can use, for instance, only lowercase. Nevertheless in some situations, arising from mistakes, you leave bergman, but still need to leave Lisp. In this case (quit) not necessary ends the session and you need to use (QUIT) to do this. In the later version of Reduce the situation is opposite: you are able to use lowercase, but uppercase produces errors. Conclusion: try both in troubles!
Note also that a typical mistake is to forget one of the right parenthesis or quotes (" ). So maybe a couple of them might be useful to leave Lisp safely.
During the session you can get some kind of messages from Lisp. All of them start with stars. The message that starts from five stars ***** means an error. Three stars *** mean a minor error or only a warning - it is possible to continue the work.
Example. Here we forget to write the parenthesis.
2 lisp > simple
***** `simple' is an unbound ID
3 lisp >

## 1.2  Simplest calculations in bergman

Here we describe and explain several examples that you can easily copy and modify.
The simplest way to employ bergman is to start it, to use some specially written routines such as simple or ncpbhgroebner, to feed it input interactively or by means of an input file prepared in advance, and to quit.
In a slightly more sophisticated use, you may influence the behavior by various "mode changing" procedures.
In very sophisticated use, you may employ and expand the experimental procedures enclosed to the program, and/or interact directly with the underlying Lisp representations of the algebraic objects.
You also have access to all source code and can use all procedures to implement your own applications.
This chapter covers the first use. For more sophisticated use guidance see the next chapters.

### 1.2.1  Selecting alternatives

Bergman works in different modes. You can find a full overview of these in 3.1.
To perform some computations in bergman it is necessary at least to set up the polynomial ring selecting commutative or non-commutative alternative, ordering (degrevlexify or deglexify), coefficients field (characteristic 0, 2 or arbitrary prime), weights of variables etc.
For the first examples we skip the complete description of alternatives using the corresponding setting included in the main top level procedures. We shall distinguish here only commutative and non-commutative calculations.

### 1.2.2  Commutative algebras

Let us start with an example of Gröbner basis computation for an ideal. It will be performed by the procedure simple. There are several ways to call this procedure explained below. Here we illustrate two of them.
Calling simple without arguments one can introduce the relations directly from the screen following the prompt and respecting one restriction: the relations must be homogeneous. An example of the session follows:
```1 lisp> (simple)
Now input in-variables and ideal generators in
algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars x,y;x^2-y^2,x*y;
% 2
x*y,
x^2-y^2,

% 3
y^3,

Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
nil
2 lisp>

```
The result contains three elements of Gröbner basis : xy, x2y2, y3. Note that, according to the order of variables, x (the first in the list) is highest, so xx, xy and yyy are highest monomials. Thus, only the monomials 1, x, y, yy are normal (not divisible by the highest monomials) and serve as a basis of our algebra. Its dimension is equal to 4 and we can easily create a multiplication table too. (All elements of the Gröbner basis are equal to zero in the quotient algebra, so we can use their highest terms for the reduction of non-normal words). For example, x ·x=yy, y ·x=0, y ·yy=0.
As was said above, simple may be called in several ways. One of them is to perform input and output by means of files. Let us prepare the following one (suppose that its name is "test1.a". Check its existence in the directory bergman/tests and copy it into your current directory):
(algforminput)
vars x,y;
x*x−y*y, x*y;
The first line informs bergman that the succeeding lines are input data in the algebraic form. It means that you need to write multiplication symbol * or powers for example x^2 or x**2 instead of x*x but not xx (the same conventions as in Reduce or Maple). The other possibility is Lisp-form; read about them in the subsection 2.7.
The next two lines are the input data themselves. The first one contains variables, they should be written between keyword vars and semicolon. Then comes the defining relations, separated by commas and finished by semicolon.
To start the calculation select the name for output file, for example "test1.bg" (it should not exists!), start bergman, switch to the Lisp mode and write
(simple "test1.a" "test1.bg")
(do not forget double quotes!) and then quit.
The following is the full session of our work.
```1 lisp> (simple "test1.a" "test.bg")
t
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
nil
2 lisp> (quit)

Quitting

```
Here is the resulting file "test1.bg", containing Gröbner basis
```% 2
x*y,
x^2-y^2,

% 3
y^3,

Done

```

### 1.2.3  Non-commutative algebras

The procedure simple may be used to perform non-commutative Gröbner basis computations also. Bergman by default is in commutative mode, so, first of all we need to turn it to non-commutative calculations. Here is an example of the session:
```2 lisp> (noncommify)
nil
3 lisp>  (simple)
Now input in-variables and ideal generators in
algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars x,y;x^2-y^2,x*y;
% 2
x*y,
-y^2+x^2,

% 3
x^3,
y*x^2,

Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
nil
4 lisp>

```
Although variables and generators look the same as in the commutative case, we have, of course, different output of Gröbner basis.
According to the order of variables, y (the last in the list - opposite to the defaults in the commutative case) is the highest, so xy, yy, xxx and yxx are the highest monomials. Thus only monomials 1, x, y, xx, yx are normal (do not contain the highest monomials as subwords) and serve as a basis of our algebra. Its dimension is equal to 5 and we can easily create a multiplication table too. (All elements of the Gröbner basis are equal to zero in algebra, thus we can use their highest terms for the reduction of non-normal words). For example, x ·x=xx, y ·y=xx, x ·xx=0.
In the non-commutative case the homogeneity restriction also must be respected (excepting "the jumping rabbit" strategy, see 2.9).
The input can be performed also by means of a file. Let us prepare the following one (suppose that its name is "test2.a". Check its existence in the directory bergman/tests and copy it into your current directory):
(noncommify)
(setmaxdeg 10)
(algforminput)
vars x,y;
x*x−y*y,x*y;
The first line switches bergman to the non-commutative mode. The second line is not necessary in this example. It restricts calculations up to degree 10. Here calculations stops in degree 3 (as you will see later), but in general Gröbner basis might be infinite so it is recommended to restrict the degree of calculations (although bergman will try to do them until the memory doesn't suffice).
The third line informs bergman that the following are the input data in the algebraic form. It means that you need to write multiplication symbol * or powers, for example x^2 or x**2 instead of x*x, but not xx (the same as in Reduce or Maple). Another possibility is Lisp-form; read about it in the section 2.7.
The next two lines are input data themselves. The first contains variables, they should be written between keyword vars and semicolon. Then the generators are listed, separated by commas and finished by a semicolon.
To start the calculation select the name for output file, for example "test2.bg" (it should not exist!), for example "test2.bg", start bergman, switch to the Lisp mode and write
(simple "test2.a" "test2.bg")
(do not forget double quotes!) and then quit.
The following is the full session of our work.
```1 lisp> (simple "test2.a" "test2.bg")
nil
nil
t
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
nil
2 lisp>

```
The file test2.bg contains the corresponding Gröbner basis:
```% 2
x*y,
-y^2+x^2,

% 3
x^3,
y*x^2,

Done

```
Summing up our knowledges about the procedure simple we can describe it now in a more formal way.
Simple can be applied both in the commutative and noncommutative case. By default bergman works in the commutative mode. To turn off commutativity one need to call (noncommify)
Simple is called as a procedure with 0, 1, or 2 file names as arguments (file names being given in the explicit form.) If you give no argument, the procedure assumes that you want to give input on-line in "algebraic form" (see the section 2.7) and prompts you for this. If you give arguments, and the first one is the name of an existing file, this is read, and it is assumed that it (inter alia) contains the input (in one or another form). If file does not exist, the procedure works as if there were 0 names. Note, that if input file contains (noncommify) or (commify), the procedure will work in the corresponding mode (and save it after returning).
If there is a second argument, the output is put there. However, if there is an existing file with this name, it is NOT overwritten and the procedure informs you about its existence and finishs its work without doing something else.
There exists a related procedure stagsimple which works similarly, but it uses a different algorithm of calculations, namely the Staggered linear basis Algorithm With Substance (SAWS). It thus may only be used in the commutative case. It takes 0, 1, 2, or 3 arguments; the last two are for output of the SAWS. deduced Gröbner basis and for the reduced Gröbner basis, respectively. In some cases it works more efficient than simple.
In the next example we use another procedure, working with non-commutative algebras only and calculating besides the Gröbner basis of the algebra the Hilbert and Poincaré series for the corresponding monomial algebra (see 4.3).
There is no screen input, we should use files only. We can use the same test2.a for input and test2.bg for output (supposing that the output file does not exist. If there is such file in your current directory remove or rename it) and want to get two new files: test2.hs for the Hilbert series and test2.pb for the Poincaré series. The procedure has the name ncpbhgroebner (from NonCommutative Poincaré-Betti and Hilbert series) and it always has 4 parameters. Here is a session (messages can be different):
```1 lisp>(ncpbhgroebner "test2.a""test2.bg""test2.pb""test2.hs")
*** I turn on noncommutativity
nil
10
nil
*** Function `degreeenddisplay' has been redefined

% No. of Spolynomials calculated until degree 2: 0
% No. of ReducePol(0) demanded until degree 2: 0
% Time: 425

% No. of Spolynomials calculated until degree 3: 2
% No. of ReducePol(0) demanded until degree 3: 0
% Time: 646

% No. of Spolynomials calculated until degree 4: 8
% No. of ReducePol(0) demanded until degree 4: 5
% Time: 833
*** Function `degreeenddisplay' has been redefined
nil
2 lisp>

```
The file "test2.hs" for Hilbert series looks now as:
```+2*z^2
+0*z^3
+0*z^4

```
(note that the known from the very beginning part  1+2*z is absent here), and the file "test2.pb" for the monomial Poincaré series looks as:
```+t^2*(2*z^2)
+t^3*(2*z^2+2*z^3)
+t^4*(6*z^3+2*z^4)

```
and also does not contain the first terms  1+t*(2*z).
Note also that neither series contains terms in degree more than 4 - the last degree where bergman have done some calculations. Look to the section 2.8.1 if you need more terms.
The file "test2.bg" is the same as "test2.bg" in the example with simple:
```
% 2
x*y,
-y^2+x^2,

% 3
x^3,
y*x^2,

Done

```
Now we give a formal description of this procedure.
Ncpbhgroebner always takes 4 arguments, which should evaluate to file names. The first file is the input file (which must exist). The second one will be the Gröbner basis output file. It must not exist before the call to ncpbhgroebner. On the third and fourth files the double Poincaré-Betti series and the Hilbert series of the associated monomial ring will be output. Existing files are overwritten. The output will be done degree by degree, whence you may read partial results while the calculations continue (and interrupt the calculations without losing the lower degree results). Note that the ring and its associated monomial ring have the same Hilbert series, while the double Poincaré-Betti series only fulfill a termwise inequality; due to the existence of a certain spectral sequence, the coefficients in the Poincaré-Betti series of the associated ring can never be less than the corresponding coefficients for the `true' ring.
A related procedure is ncpbh. The only difference with the previous one consists in the absence of output file for the Gröbner basis. So, the computations are the same, but it takes only 3 arguments.

### 1.2.4  Normal form and reduction

The main idea to use Gröbner basis is to have a possibility to reduce a given element u to its normal form. Bergman suggests a simple procedure named readtonormalform which interactively asks an input for a desired polynomial and prints its normal form - the result of the reduction. Let us consider a small example. Suppose that we want to check if two elements a3 and b3 commute in the non-commutative algebra A= < a,b|2a2−3b2 > . The way to do it is the following:

A) Calculate Gröbner basis:
```
2 lisp> (noncommify)
nil
3 lisp> (simple)
Now input in-variables and ideal generators in
algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars a,b; 2*a^2-3*b^2;
SetupGlobals
... done
+t^2*(z^2)
% 2
-3*b^2+2*a^2,

+t^3*(z^2+z^3)
% 3
-b*a^2+a^2*b,

+t^4*(z^3+z^4)
Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
nil
4 lisp>

```
B) Check the commutator a3*b3b3*a3:
```
algebraic form input> a^3*b^3-b^3*a^3;
is reduced to
2/3*(-a^4*b*a+a^5*b),
nil

```
We see that the result (the normal form of the commutator) is nonzero, so, the elements are not commuting. Moreover, we know exactly how far from zero the commutator is. The same computation with a4 and b2 gives us a different result:
```5 lisp> (readtonormalform)
algebraic form input> a^4*b^2-b^2*a^4;

is reduced to
0,

```
and we can conclude that those elements are commuting. More generally, the procedure readtonormalform can be used for the equality test: u=v in our factor-algebra if and only if their difference is reduced to zero.
To be able to use the normal form in his own programs one can apply the following procedures:
• (readpol l), which reads the list l of polynomials from the input, separated by the semicolons,
• (writepol l), which prints them on the screen,
• (reducepol a b), which reduces the polynomial a to the (printable) polynomial b,
• (printqpols b), which prints (printable) polynomial.
Note the difference between inner form of the polynomial, which normally is unprintable and external, printable form.

### 1.2.5  Starting a new calculation

We hope that your first experiments with bergman were successful and following the prompt after calculations you can:
• kill bergman with (quit); or
• interrupt bergman with   ^Z ; or
• clear the memory with (clearideal), and run a new (simple).
Presuming you would like to run a new computation let us explain more carefully what the function clearideal is doing.
According to its name it does not clear all that was done before, but only clear memory from the ideal generators and results of the previous calculations.
You always should call this function before starting a new cycle of the calculations. The only exclusion is when you want to add some new elements to the already calculated Gröbner basis or use the Gröbner basis for reduction, but for doing this kind of stuff you should be a professional. So, once again, in this chapter: before the calling at the second time one of the top-of-the-top procedures, such as simple, ncpbhgroebner always call clearideal (or clearring, see below.)
You need not do it from the very beginning, but you need to know what it really clears. It clears:
• initial ideal generators,
• calculated Gröbner basis,
• all the memory, used for the calculations.
It saves:
• all selected modes (see section 2.4), including list of input variables.
You can use this possibility: do not introduce the same set of variables, skipping vars ...

Example. Several computations in the same polynomial ring with different ideals.
```
1 lisp> (simple)
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input>  vars x,y,z;
algebraic form input> x^3, x^2*y-y^2*x, z^2*x, x^2*z-y^2*z;
% 3
x*z^2,
x^2*z-y^2*z,
x^2*y-x*y^2,
x^3,

% 4
y^2*z^2,
y^3*z,
x*y^2*z,
x*y^3,

Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
nil
2 lisp> (clearideal)
nil
3 lisp> (simple)
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> y*z^2-z^3, x^2*z-y*z^2, x*y*z;
% 3
y*z^2-z^3,
x*y*z,
x^2*z-z^3,

% 4
z^4,
x*z^3,

Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
nil
4 lisp>

```
A more powerful function is clearring which clears also the list of input and output variables and their weights. Depending how you plan to continue calculations you can select one of the clearing functions.
Note that both of them do not clear all the selected alternatives, a part of settings being kept even after their applying. One can see how to avoid troubles caused by this situation reading the section 2.13.

# Chapter 2 Computations in bergman

## 2.1  Introduction

In this section we suppose that the user is already familiar with bergman and is able to start and use it in the simplest cases. The aim of this section is to explain more detailed how to use bergman and to present all its facilities.

## 2.2Bergman: philosophy and approach

The philosophy of bergman is to give the user a possibility to use Bergman's Diamond Lemma with a maximum flexibility. It means that bergman is mainly a powerful instrument for calculating Gröbner basis in several situations: commutative and non-commutative algebras, modules over them.
Besides that it provides some facilities to calculate appropriate invariants of the algebras and modules: Poincaré and Hilbert series, Anick's resolution and Betti numbers.
The aim is maximum efficiency with few restrictions. Note however the homogeneity setting. The user need not care how long the coefficients might be if (s)he wants to work over rationals, but should also have a possibility to work over prime characteristic or to include indeterminates as coefficients.
Nevertheless bergman is not a full computer algebra system. Rather it is a box, containing several useful routines, so it takes some efforts from the user to find them here and to use them in a correct way. Additional problems might appear because of the Lisp-oriented form of the procedures. But this box is not black: the user can read, modify the procedures and create its own. Moreover, (s)he can use them together with Reduce, so from this point of view, bergman can be considered as a Reduce package. (You can read more about this in section 2.12). The purpose of this chapter is to explain bergman as if it is a black box, describing all its main (unmodified) procedures.

## 2.3Bergman: main restrictions

Bergman has two main restrictions. First, it is not a separate program and cannot be used without some underlying Lisp, like PSL or CLISP (or Reduce, which contains PSL). The second and important one, mentioned above, is homogeneity. All input to the simple top level procedures (excepting rabbit, see 2.9) must be homogeneous (e.g. by the natural grading, where each variable has degree one). They do not automatically check homogeneity. The possibility to use weighted variables extends the class of problems which can be solved by bergman: the degree function need not be a natural ("standard") grading.
There are some experimental procedures which under some restrictions test for homogeneity, homogenise input, and dehomogenise output; see the subsection 2.5 below.
In the commutative case homogeneity is not the principal restriction. It is not so difficult to homogenise relations to obtain the same, in principal, result. But for the non-commutative algebras this restriction is essential and this is the price for the efficiency. Unfortunately, it means that it is impossible to use bergman for the homological investigations of the groups or most of the finite dimension nontrivial idempotents. Nevertheless, using the rabbit strategy it is possible to calculate their Gröbner bases.
Note also that bergman has no routines for the polynomial factorisation. So, the applications of bergman to the solutions of the nonlinear systems of equations are sufficiently restricted.

## 2.4  The polynomial ring set up

To perform some computations in bergman you should set up the polynomial ring and its environment. This action includes selection of the algebra type (commutative or non-commutative), the variables, the ordering, the type of coefficients, and variable weights. One can also select the strategy of computation, and input-output mode. There are some minor mode selections too. For a complete description see section 3.1. This section contains an informal explanation of the most important components in the ring definition.

### 2.4.1  Variable names and the flag raise

We start from the variables - generators of our algebras (modules). Their names may be specified to almost any valid Lisp identifiers. (Some special signs, like * and , should not be used unslashified in the identifier names.) So, not only usual letters such as x,Y may be used, but also x1,Y45 or even I_kiss_you_a_1000_times can be used as a variable. But do not try x[1] or Y(2) as names! In any place you may have a look to your current list of variables using (getinvars).
Here is a possible example.
```6 lisp> (getinvars)
(x y z)

```
One important question is if the names "y" and "Y" represent the same variable. The answer depends on the current value of the flag raise. If it is in the state OFF, they are different, otherwise (if it is in the state ON) "y"="Y".
The meaning of this flag is to translate all the letters to capitals (or the oppsite case in the later versions). Next come several important notes, concerning this flag:
1. From the very beginning the value of this flag is ON. That is why you can write (SIMPLE) instead of (simple)
2. You may influence whether or not reading of variables and generators is case sensitive mode. Typing
(setcasesensalgin t)
you establish the case sensitive mode of algebraic input and by
(setcasesensalgin nil)
the mode is switched to no-case sensitivity.
3. Most the procedures, available to user have been written in source files using capital names. The procedures, intended to be unavailable to the normal user have been written with the names containing both small and capital letters, such as SecretProcedure. They will be unavailable because by the default flag raise is ON.
In the later versions of Reduce and LISP the situation is more complicated. Because flag raise works in the opposite direction now (decapitalizing instead of capitalizing), all the procedures written in capitals would be unavailable too. That is why in those versions a special converter is used to interchange lowercase and capital characters. So, for example, even if in the source files the procedure is written as (SIMPLE) it will have the name (simple) inside the bergman and will be available independent of the flag raise. The unpleasant effect of this is that such procedures as SecretProcedure can appears as sECRETpROCEDURE or even as s!E!C!R!E!Tp!R!O!C!E!D!U!R!E, but this ugly names we can see in the case of errors only (when the user is able to recover easy the original name the SecretProcedure).
More exactly, some procedures may turn OFF the flag raise while they are working. If a break loop (for example because of mistake) happens during their work the value of the flag will be OFF and, for example, you will be unable to quit from the program writing
(QUIT)
because in this case the name should be decapitalized:
(quit)
Another way to quit is
(on raise)
(QUIT)
4. If the user wants (e.g. for the debugging) to have access inside the bergman to the procedures and variables with the names, containing both small and capital letters, such as SecretProcedure (s)he needs to switch the flag raise OFF and use the names, where secret letters (capital in last version and lowercase in the older versions) are printed after exclamations: b!A!D. Even the multiplication in some versions is secret and looks as !*. But normally you don't need take care about this.

### 2.4.2  Ordering

In the commutative setting bergman can perform computations in two different orderings: lexicographical (DEGLEX) or reverse lexicographical ordering (DEGREVLEX, which is the default choice). Both of them are graded, it means that first we compare length (or weights) of words and only after that use the lexicographical comparison. For example, if x > y > z is our ordered alphabet, then we have
 1 < z < y < x < zz < yz < yy < xz < xy < xx <  . . .
in the commutative DEGLEX computation and
 1 < z < y < x < zz < yz < xz < yy < xy < xx <  . . .
in the commutative DEGREVLEX computation.
By default the DEGLEX ordering is chosen in the non-commutative bergman computation. Keeping the same ordered alphabet with x > y > z we have
 1 < z < y < x < zz < zy < zx < yz < yy < yx < xz < xy < xx < zzz . . .
Besides that there exist two eliminating orderings in the non-commutative mode: ELIMLEFTLEX and INVELIMLEFTLEX. In the first one the words are compared first as commutative words in DEGLEX. If they are equal as commutative words they are compared as in noncommutative DEGLEX .
Keeping the same ordered alphabet with x > y > z we have

 1 < z < y < x < zz < yz < zy < yy < xz < zx < xy < yx < xx < zzz . . .
In the INVELIMLEFTLEX the first comparison is as commutative DEGREVLEX, and if the words are equal as the commutative words they are compared as in noncommutative DEGLEX .
So the order will be:

 1 < z < y < x < zz < yz < zy < xz < zx < yy < xy < yx < xx < zzz . . .
It is important for the Gröbner basis calculations which of the variables is the highest (largest). The rule is determined by the order of the variables, written after vars in one of the top-of-the-top procedures and is as follows:
• in the non-commutative DEGLEX mode the last variable is always the highest;
• in the commutative mode and both eliminating orderings first variable is the highest.
The following procedures set the corresponding orderings.

 Ordering Procedure DEGREVLEX REVLEXIFY() DEGLEX DEGLEXIFY() (commutaive case) DEGLEFTLEXIFY() (noncommutaive case) ELIMLEFTLEX ELIMORDER() INVELIMLEFTLEX INVELIMORDER()

Note that the procedure deglexify works only in the commutative mode, in the noncommutaive case DEGLEX ordering is established by the procedure degleftlexify.

### 2.4.3  Using eliminating ordering

Despite the fact that bergman works with graded algebras only, it can be successfully applied to the non-graded case. The idea is to homogenize the ideal (using an additional commuting homogenizing variable h) and to perform calculations in the eliminating ordering and then dehomogenize the result setting h=1.
Let us consider an example suggested by Prof. I.Kantor. Let A be the following algebra:

 A = < r,l,q| r2−q2+lr−r,rq−qr+lq−q,lr−rl,lq+ql−2q,rr−rl−2lr+2l2−r+l >
It was important to find the minimal polynomial for q. Here is the solution achieved by bergman:
```2 lisp> (noncommify)
nil
3 lisp> (elimorder)
nil
4 lisp> (simple)
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input>  vars r,l,q,h;
algebraic form input>  r*r-q*q+l*r-r*h,r*q-q*r+l*q-q*h,
algebraic form input>  l*r-r*l,l*q+q*l-2*q*h,
algebraic form input>  r*r-r*l-2*l*r+2*l*l-r*h+l*h,
algebraic form input>  r*h-h*r,q*h-h*q,l*h-h*l;

% 2
-h*q+q*h,
-h*l+l*h,
q*l+l*q-2*q*h,
-h*r+r*h,
-q*r+r*q+l*q-q*h,
-4*r*l+2*l^2+l*h+q^2,
4*l*r-2*l^2-l*h-q^2,
4*r^2-4*r*h+2*l^2+l*h-3*q^2,

% 3
4*r*q*h-4*l^2*q+10*l*q*h-q^3-9*q*h^2,
4*r*q^2+12*l^3-10*l*q^2-3*l*h^2-3*q^2*h,

% 4
l*q^3-3*l*q*h^2-q^3*h+3*q*h^3,
-12*l^3*h-4*l^2*q^2+20*l*q^2*h+3*l*h^3-q^4-6*q^2*h^2,
-4*l^3*q+12*l^2*q*h-11*l*q*h^2+3*q*h^3,
12*l^4-8*l^2*q^2-3*l^2*h^2-2*l*q^2*h+q^4,

% 5
-48*l^2*q*h^2+96*l*q*h^3-q^5+10*q^3*h^2-57*q*h^4,

% 6
-48*l^2*q^2*h^2+96*l*q^2*h^3-q^6+10*q^4*h^2-57*q^2*h^4,

% 7
-q^7+13*q^5*h^2-39*q^3*h^4+27*q*h^6,

```
If we look at the last element of the obtained Gröbner basis and put h=1 we get the desired equation:
 q7−13q5+39q3−27q=0
The secret is in the command elimorder: now if two words are compared, they are compared first as the commutative words in pure left lexicographical ordering and after that (if commutatively they are equal) as usual. That is why if the minimal polynomial exists its homogenized variant should belong to the Gröbner basis: if the leading monomial is qn all other terms should contain the letters h and q only, h being in the end because it commutes with q. To obtain the minimal polynomial for l it is sufficient to put l before the homogenizing variable (which should remain the last) in the list of the variables, e.g. vars r,q,l,h;

### 2.4.4  Coefficients: background

Coefficients handling is an important part of bergman. Mathematically, the ring of coefficients should be a field K, the coefficient field. In basic bergman, this field must be a prime field; i.e., either the field Q of rational numbers, or the Galois field Z/ (p) of residue classes of integers with respect to a prime number p. The characteristic of Q is 0, and the characteristic of Z/ (p) is p, so that the prime field is completely determined by its characteristic.
If you run bergman under Reduce in commutative mode, then you have further possibilities, as it is described in the next subsection. In order to employ these, it is necessary to understand the way bergman treats coefficients.
In order to simplify the internal representation and thus make coefficient calculations faster, bergman tries to avoid fractions in coefficients, whenever feasible. This is done by means of the coefficient domain, associated polynomials, and gcd calculations.
The coefficient domain  A should be a sub-domain of the coefficient field K, such that its field of fractions is K. (Here domain signifies integral domain, i.e., unitary commutative ring without non-trivial zero-divisors.) In the basic coefficient modes, A is the smallest possible sub-domain of K, so that A = Z = the ring of integers in characteristic 0, but A = K = Z/ (p) in positive characteristic.
Recall that if f = f(x1,…,xn) and g = g(x1,…,xn) are elements in R = K [ x1,…,xn], then f and g are associated polynomials if g = uf for some non-zero uK. (Then clearly f = u−1g; and more generally, `associatedness' is an equivalence relation on R.) Since K is the field of fractions of A, each fR has associated polynomials with all their coefficients in A. We may e.g. write all coefficients of f as fractions of elements in A, and let u be the product of all the denominators; then clearly ufA [ x1,…,xn].
However, normally this is far from efficient. The coefficients in this uf often are extremely large (or complex). For A = Z, this may be avoided by factoring out the content of uf, i.e., the greatest common divisor of all the coefficients. Thus we get a new associated polynomial, hopefully with reasonably complex coefficients.
If gi is associated to fi for i = 1, …, r, then f1,…,fr and g1, …, gr generate the same ideal in R. Hence, if K = Q and all we want is to calculate a Gröbner basis, then we may always replace any appearing polynomial by an associated polynomial in Z[x1,…,xn ] of content 1. In practice, it is more efficient to make such replacements dynamically during the calculation of normal forms. This is the default content taking strategy of bergman.
There are some situations when such tactics does not work, as when we want to calculate Anick resolutions. For these cases bergman also has a procedure normalform for calculating the true normal form of a polynomial.

### 2.4.5  Coefficients: choices

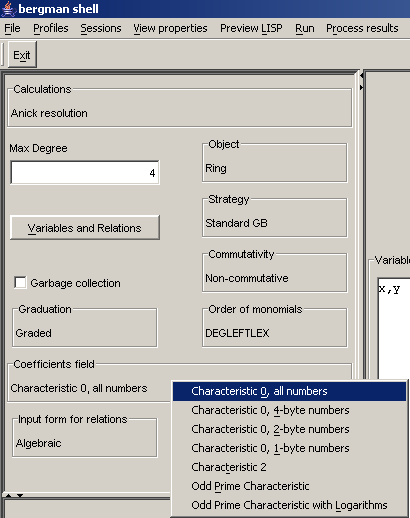

To select a coefficient field (and a coefficient domain) you call (setmodulus p) where either p is the desired characteristic (0 or a prime number), or p is sf (from "(Reduce) Standard Forms").
By default and after the call of (setmodulus 0), the coefficient field is the field Q of rational numbers, and the coefficient domain is the ring Z of integers. This means that all input coefficients and most internal and output coefficients are considered as integers. There are no restrictions for the length of the integers - only the restrictions of the memory of your own computer. Nevertheless, when you are sure from the very beginning that your coefficients (even inside the calculations) never will be too large (e.g. if the relations have a semigroup form: fg, where f and g are words) you can try to achieve more efficiency using the flag nobignum - see the subsection 3.5 for more details.
However, if you want to perform series calculations, you should also decide whether or not the series coefficients may exceed the `small integer limit' of your Lisp implementation, before turning on nobignums.
You cannot use fractions in the input and do not ordinarily get them as output.
Another minor mode choice affecting the characteristic zero (and the sf) coefficient mode is the dense or sparse content taking.

After the call setmodulus p, where p is a prime number, the coefficient field and the coefficient domain both are Z/ (p) = GF(p), the unique field with p elements.
Note that in the prime characteristic the highest term of any polynomial in the Gröbner basis has always the coefficient 1 (in contrast to the zero characteristic case).
In odd prime characteristic with a reasonably small p, bergman employs efficient `small number calculations' only with the coefficients. If you need to optimise coefficient handling further, please note the following. With some hardware and software architectures, multiplication is a much more time consuming operation than are (single) additions and multiplications. In such cases, you should consider employing the modulus logarithms method . Mathematically speaking, it works by finding a generator γ for the cyclic multiplicative group of non-zero elements in Z/(p), and by representing such elements by their "γ-logaritms" (i.e., representing a = γs by s), whenever convenient.
The main effect of using the `modular logaritms mode' in typical bergman Gröbner basis calculations is that in the most time consuming combined coefficient operation, of the type
 a ·b + c  ,
one multiplication and one addition is replaced by two additions and one `logaritm table lookup operation', represented by finding an item in a Lisp vector (array). In addition, one Lisp remainder operation is replaced by one comparison and (in average) a half subtraction. The net effect is to replace one multiplication and one remainder operation by one addition, a half subtraction, one comparison and one `look-up'.
The draw-back is that bergman must construct or to read the `logarithm table' and the inverse `exponential table' into memory.
If you want to employ this, do
(setoddprimesmoduli modlogarithmic)
before you do the setmodulus p for your odd prime p.
When you do this, bergman may or may not succeed in finding a prepared file for the look-up tables; and if it doesn't find the file, it may or it may not succeed in creating the tables. In the present version, it is depending on being able to create the tables file, if this doesn't exist. Thus, you may run into troubles, e.g. if you do not have write access to the directory for modular logarithm tables handling. Some ways of overcoming this are discussed in the next chapter.
You need not this mode in characteristic 2 or 0, and should avoid it (possibly loosing a bit in time efficiency) if you want to save memory. By default, modular logarithms are off.

In addition to the few efficient basic coefficient modes available in bergman, there is a possibility to set up `your own' coefficient field and domain in an ordinary Reduce way. In this case, bergman calls Reduce for each coefficient operation. The domain elements are represented as Standard Forms, and the field elements as Standard Quotients. Similarly, the general Reduce Greatest Common Divisor procedure is employed for taking contents. Any reduction rules for calculating in Reduce are active, including Reduce modulus setting, but with the following exception: At input from Reduce, the variables specified as bergman in-variables are treated by bergman variable handling procedures.
In order to employ this, the user should have a good understanding both of the mathematics and of Reduce. It is entirely her/his responsibility to ensure that indeed the given in-coefficients reside in a mathematically well-defined field, with respect to the given Reduce rules.
Example: In order to calculate with coefficients in the field GF(169)(a) (where a is transcendent over GF(169)), you may note that GF(169) may be realised as a quadratic extension of its prime field GF(13), e.g., by means of √2. Thus, you might try
algebraic;
setmod 13;
on modular;
b^2 := 2;
and then go on as usual, employing the i+j*b (i,j ∈ {0,1,…,12}) as representatives for the elements in GF(169).

### 2.4.6  Weights handling

There are possibilities to handle some non-naturally graded situations, i.e., situations where not all variables have degree 1. Then the weights, i.e., the degrees of the variables, may be set to arbitrary positive integers. (Thus weight 0 is not allowed.) The degree of a monomial then will be calculated as the sum of the weights of its variable factors.
The natural grading corresponds to giving each variable weight 1. However, using the weighted variables mode could yield considerably slower calculations than using the natural grading mode. Thus weights should be set only if some of them deviate from 1.
Restrictions: For computational efficiency reasons, all degrees appearing during calculations are assumed to be "inums", i.e., small enough to fit into the small numbers representation of your computer. In the naturally graded situation, this is hardly ever a practical limitation; but if you give rather high weights to some variables, you could get into some trouble.
There are moreover some inconsistencies in the variable ordering in this version of bergman. Also, series calculation and the Anick resolution implementation are not yet compatible with the weighted variables mode.
The weight list contains the weights of variable 1, 2, 3, ... , in this order.
There are several procedures for weights handling in bergman.
(setweights int1 int2 ... intn)
Sets the weights to int1, ... , intn. The inti must be positive integers. No weights given restores the naturally graded mode.
(clearweights)
Restores the naturally graded mode. Returns the old weight list.
(getweights)
Returns the current weight list.
(printweights)
If weights are set, print these (with spaces between but without parentheses or line feeds) and return T. Else, print nothing and return NIL.
Example of a Gröbner basis computation in a non-naturally graded situation:
```1 lisp> (setweights 2  2 1)
nil
2 lisp> (getweights)
(2 2 1)
3 lisp> (simple)
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars x,y,z;
algebraic form input> x^3, x*z-y*z;
% 3
x*z-y*z,

% 6
x^3,

% 7
y^3*z,

Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
nil
4 lisp>

```

### 2.4.7  Rings exchange

Normally bergman works with one fixed ring only. For some applications the user would like to have the access to several different rings (e.g. to compare two different normal forms of the same element).
For this purpose in bergman exists a stack of rings. Because only one ring is formally available, it is possible to save the current ring in this stack, perform the computations in a new ring and then restore the old ring from the stack. Here is the list of available procedures:
(pushring) saves the current ring on the top of the stack;
(popring) takes the ring from the top of the stack and makes it current;
(switchring) makes rings exchange: the top ring from the stack becomes a current and the current one becomes a top;
(ringstacklength) gives the length of the stack.
Here is an example of the session where we calculate the normal form of x2 in two different commutative rings:
```1 lisp> (simple)
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars x,y;x^2-y^2;

% 2
x^2-y^2,

Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL), and run a new (SIMPLE).
nil
algebraic form input> x^2;

is reduced to
y^2,

nil
3 lisp> (pushring)
1
4 lisp> (clearideal)
5 lisp> (simple)
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars x,y;x^2;
% 2
x^2,

Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL), and run a new (SIMPLE).
nil
algebraic form input> x^2;

is reduced to
0,
nil
7 lisp> (switchring)
t
algebraic form input> x^2;

is reduced to
y^2,

nil
9 lisp> (popring)
1
algebraic form input> x^2;

is reduced to
0,
nil

```

## 2.5  Homogenisation

Suppose we would like to find a minimal polynomial for α = √2+√3+√5, i.e. such a polynomial p(x) with the integer coefficients that p(α)=0.
One possible way to do it is to find a Gröbner basis for the following ring:

 A= < x,y,z,t| xx−2,yy−3,zz−5, t−x−y−z >
The important thing is the choice of ordering. We want to get the element that contains the variable t only - it would be desired minimal polynomial. So the variable t should be the lowest, for example x > y > z > t. Even more - any power of t should be less than any monomial, containing any variable different from t. It means that we need pure lexicographical ordering. In such an ordering (for example pure revlex) we should have the following Gröbner basis:t8 − 40t6 + 352t4 − 960t2 + 576,576z − 5t7 + 194t5 − 1520t3 + 2544t, 96y + t7 − 37t5 + 244t3 − 360t, 576xt7 + 28t5 + 56t3 − 960t.
How to get from the bergman such a result? The problem is that bergman uses homogeneous relations only. The solution is to homogenize the relations, using a new variable (say f):

 B= < x,y,z,t,f| x*x−2*f*f,y*y−3*f*f,z*z−5*f*f, t−x−y−z >
It means that every monomial that had less degree than highest one (constants in our case) was completed by corresponding number of factor f. The relations are now homogeneous and we can calculate the Gröbner basis in the corresponding ordering. Let us see the session:
```1 lisp> (purelexify)
nil
3 lisp> (setalgoutmode alg)
nil
4 lisp> (algforminput)
algebraic form input> vars x,y,z,t;
algebraic form input> x^2-2, y^2-3, z^2-5, t-x-y-z;
t
5 lisp> (homogeniseinput)
*** Function `h!O!M!O!Gpm!O!N' has been redefined
nil
6 lisp> (groebnerinit)
nil
7 lisp> (groebnerkernel)
d!O!N!E
8 lisp> (algforminput)
algebraic form input> vars x,y,z,t,f;
algebraic form input> ;
nil
9 lisp> (bigoutput)
-x-y-z+t,
z^2-5*f^2,
2*y*z-2*y*t-2*z*t+t^2+6*f^2,
y^2-3*f^2,
2*y*f^2-3*z*t^2+6*z*f^2+t^3+4*t*f^2,
y*t^2-7*z*t^2+12*z*f^2+2*t^3+12*t*f^2,
4*z*t^3-t^4-20*t^2*f^2+24*f^4,
-80*z*t^2*f^2+96*z*f^4-t^5+60*t^3*f^2+24*t*f^4,
96*z*t*f^4-t^6+40*t^4*f^2-376*t^2*f^4+480*f^6,
576*z*f^6-5*t^7+194*t^5*f^2-1520*t^3*f^4+2544*t*f^6,
-t^8+40*t^6*f^2-352*t^4*f^4+960*t^2*f^6-576*f^8,

nil
10 lisp> (quit)

```
The reader can find some useful comments about the procedures used here in the section 2.10. Note that we used algforminput twice. The second one is necessary to create an (external) name for the homogenizing variable, otherwise printing of Gröbner basis is impossible. The ordering used here gives not exactly the same result as pure lexicographical ordering, but because t,f were the lowest variables we obtained our minimal polynomial.

## 2.6  Choosing a strategy

One of the important mode choice that should be mentioned is selecting the strategy of the calculations. Besides selecting of the algorithm (Buchberger, staggered or "the jumping rabbit" (see 2.9)) that you are doing by appropriate procedure, you have some influence on the intermediate calculation. Choosing
(setimmediatefullreduction t)
(and this is default) you demand immediate reduction of all the terms of Gröbner basis and obtain it in the reduced form. Sometimes it might be more efficient to switch OFF this flag. The obtained Gröbner basis may be not reduced, but calculations might be slightly faster. There is no clear receipts when it happens - try yourself!

## 2.7  Input-output modes for the polynomials

There are three basic output formats, named lisp (default), alg (synonim - Maple), and macaulay, corresponding to the formats, used in those 3 languages. The first two of these also are acceptable input formats. In all input and output, the polynomials are distributed (written with no parentheses). There is a difference between commutative and non-commutative case.

### 2.7.1  Commutative case

The (output) alg representation of the polynomial is
 c1*v1^m11* . . . *vn^m1n+  . . .+ cr*v1^mr1*  . . . *vn^mrn .
Here v1,  . . ., vn stand for the variable names, mij for the exponents, and ci for the coefficients. Highest terms will be printed first.
Occurrences of *vi^0 and of ^1 are omitted. + is omitted before −. The macaulay representation is similar, but without * and ^; and the polynomials then are not separated by commata. In input, some slight variation is allowed in the alg format:
• ** may be used instead of ^;
• Blank space may be inserted everywhere, except within identifiers or integers or between two successive ** .
• Exponents 0 and 1 may occur.
• The order of the variables in a monomial is arbitrary.
The lisp representation of the same commutative polynomial in n variables is a Lisp list of length n+1 lists of integers:
 ((c1 m11  . . . m1n)  . . .(cr mr1  . . . mrn))
where the CAR of the i:th list is the coefficient of the i:th monomial, and the other n integers (which should be non-negative) are the exponents. Highest terms will be printed first in the output.

### 2.7.2  Non-commutative case

If you want to have output in alg or macaulay form, you must define in one or another way the variable names, and you must set the the output mode to alg or macaulay using the function variable setalgoutmode with corresponding arguments alg or macaulay. The variable names are most easily given by vars within a algforminput, as explained below. Moreover, many of the top-of-the-top bergman's procedures use algebraic output mode as default.
You may add your own algebraic output mode options by means of
One can inspect the current mode by getalgoutmode.
In order to perform alg mode input, write
(algforminput)
vars v1, ...,vn;
pol1, ... , pols;
where v1, ..., vn are the variable names and pol1, ..., pols are polynomials on alg form.
In order to perform lisp mode input, write
(lispforminput)
pol1 pol2 ..... pols
(lispforminputend)
where pol1, ..., pols are polynomials on lisp form. If you must specify the number of variables to a number n (as in the non-commutative case, if you want to know the Hilbert series), then set embdim to n. (embdim is short for "the embedding dimension".)
Lisp form (homogeneous) polynomial of degree d is a list of lists of integers of length d+1:
 ((c1 m11  . . . m1d)  . . . (cr mr1  . . . mrd))
where the CAR of the i:th list is the coefficient of the i:th monomial, and the other n integers (which should be positive) are the "indices" of the variables, i. e., their position if they are ordered by increasing significance. The corresponding alg format is
 c1*vm11* . . .*vm1d+ . . . +cr*vmr1* . . .*vmrd .
In input, identical factors may be collected to exponents. For example, if the variables are x,y, and z (in this order), then the lisp form polynomial ((5 1 1 1 3 2 2)) will be alg form output as 5*x*x*x*z*y*y, but it may optionally be input as 5*x**3*z*y^2. Highest terms will be printed first in the output.
To perform output in the desired form apply setalgoutmode with the corresponding argument (alg, macaulay or lisp.)
1. Both algforminput parts, i. e., the input variable setting and the polynomial listing, are optional. You may thus give lisp form input, but perform algforminput vars v1,...,vn; ; (NOTE the double ;), in order to enable alg or macaulay output. Of course, if you try to print polynomials when the variables are not set, you are in trouble.
2. New successful (and non-empty) polynomial inputs replace old ones. Likewise, new successful input variable settings replace old ones. Running groebnerkernel (successfully) or clearideal kills the input polynomials, but not the variable settings.
3. The implementation of algforminput depends on specific PSL features, since the pure Standard Lisp has poor alternative scanning abilities. If algforminput should be disabled in some other implementation, and if you still wish to use algebraic output modes, then you must define the variable names in another way, using the internal representations. In bergman 0.9* and the next versions, the output variable settings performed by
vars x,y,z;
in the commutative case corresponds to
(setq O!u!tV!a!r!s (quote (!x !y !z)))
and in the non-commutative case corresponds to
(setq O!u!tV!a!r!s (quote ((1 . !x) (2 . !y) (3 . !z)))) .

## 2.8  Calculating and using series

### 2.8.1  Hilbert series computation

There is a simple way to calculate the Hilbert series in non-commutative case: using the top level procedure ncpbhgroebner. The previous chapter contains all the explanations concerning its calling, arguments and results. The only problem is that the Hilbert series computation is stopped in the degree where the computation of the corresponding Gröbner basis was finished. If you want to get the next power series coefficients you may continue computation and call two procedures:
(calctolimit degree)
(tdegreehseriesout degree)
Let us see an example. The file "test.a" should be the input file:
```(setmaxdeg 10)
(setalgoutmode alg)
(algforminput)
vars x,y;
x*x-2*y*y;

```
Here is the corresponding session:
```
1 lisp>(ncpbhgroebner "test.a" "test.gb" "test.pb" "test.hs")
*** I turn on noncommutativity
nil
alg
t
*** Function `!O!L!D!D!E!D' has been redefined
*** Function `degreeenddisplay' has been redefined
%ufn malencie bucvi seichas 'degreeenddisplay'
% No. of Spolynomials calculated until degree 2: 0
% No. of ReducePol(0) demanded until degree 2: 0
% Time: 238

% No. of Spolynomials calculated until degree 3: 1
% No. of ReducePol(0) demanded until degree 3: 0
% Time: 289

% No. of Spolynomials calculated until degree 4: 2
% No. of ReducePol(0) demanded until degree 4: 0
% Time: 323

*** Function `degreeenddisplay' has been redefined
NIL
2 lisp> (calctolimit(getmaxdeg))
+t^5*(z^4+z^5)
+t^6*(z^5+z^6)
+t^7*(z^6+z^7)
+t^8*(z^7+z^8)
+t^9*(z^8+z^9)
+t^10*(z^9+z^10)
NIL
3 lisp> (tdegreehseriesout(getmaxdeg))
+6*z^5
+7*z^6
+8*z^7
+9*z^8
+10*z^9
+11*z^10
11
4 lisp>

```
The resulting files are:
test.gb:
```% 2
-2*y^2+x^2,

% 3
-y*x^2+x^2*y,

```
test.pbs:
```+t^2*(z^2)
+t^3*(z^2+z^3)
+t^4*(z^3+z^4)

```
test.hs:
```+3*z^2
+4*z^3
+5*z^4

```
As you can see, all calculations by ncpbhgroebner are done up to the degree 4 - the last degree in which the Gröbner basis were done (though without generating a new element).
Calling
(calctolimit (getmaxdeg))
we obtain the continuation of Poincaré-Betti series and by
(tdegreehseriesout (getmaxdeg))
the next terms of Hilbert series are displayed (but not saved in the file!)
If you prefer the interactive input/output you can operate in the same manner with the procedure simple as it is illustrated in the following example:
```1 lisp> (noncommify)
NIL
2 lisp> (setmaxdeg 10)
10
3 lisp> (simple)
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form (noncomm.) input> vars x,y;
algebraic form (noncomm.) input> x*x-2*y*y;

+t^2*(z^2)
% 2
-2*y^2+x^2,

+t^3*(z^2+z^3)
% 3
-y*x^2+x^2*y,

+t^4*(z^3+z^4)

Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
NIL
4 lisp>  (calctolimit(getmaxdeg))
+t^5*(z^4+z^5)
+t^6*(z^5+z^6)
+t^7*(z^6+z^7)
+t^8*(z^7+z^8)
+t^9*(z^8+z^9)
+t^10*(z^9+z^10)
NIL
5 lisp>  (tdegreehseriesout(getmaxdeg))
+3*z^2
+4*z^3
+5*z^4
+6*z^5
+7*z^6
+8*z^7
+9*z^8
+10*z^9
+11*z^10
11
6 lisp>

```
There are two ways to compute Hilbert series in the commutative case. The easy one (hilbert) we consider at the end of this section. The more complicated one will be useful to consider if the reader wants to understand how bergman is organized internally. For this method it is necessary to involve several procedures. First of all, it is necessary to input the ring ideal variables and generators calling algforminput and following its prompt (if it was not done before). You can start Gröbner basis calculation by means of two procedures: groebnerinit and groebnerkernel. Now the system is ready to compute Hilbert series.
There are two main uses for the Hilbert series facilities: stand alone and within the Hilbert series interrupt strategy minor mode. The interrupt strategy is very efficient and more sophisticated, you can find its explanation below (see sections 2.8.2,3.4).
Let us deal here with the first case. You may get the Hilbert series as a rational expression
 p(t) (1−t)q ,
or with the power series coefficient for some specified t degree(s). The calculation is performed by procedure calcrathilbertseries. To see the result you should note that the global variables hilbertnumerator and hilbertdenominator represent a calculated
 p(t)/(1−t)q = (antn + an−1tn−1 +  . . . +a0)/(1−t)q
by (the Lisp items) ((n . an) (n−1 . an−1) ... (0 . a0)) and q, respectively.
To display the power series coefficients one may use the procedure
tdegreehseriesout giving the degree as argument.
Here is an example of Hilbert series computation.
```1 lisp> (algforminput)
algebraic form input> vars x,y; x^3, x*y^2-x^2*y;
t
2 lisp> (groebnerinit)
SetupGlobals
... done
nil
3 lisp> (groebnerkernel)
d!O!N!E
4 lisp> (calcrathilbertseries)
nil
5 lisp> (setq p hilbertnumerator)
((4 . -1) (3 . -1) (2 . 1) (1 . 1) (0 . 1))
6 lisp> (setq q hilbertdenominator)
1
7 lisp>  (tdegreehseriesout 1)
2
8 lisp>  (tdegreehseriesout 2)
3
9 lisp>  (tdegreehseriesout 3)
2
10 lisp> (tdegreehseriesout 4)
1
11 lisp> (tdegreehseriesout 5)
1
12 lisp> (tdegreehseriesout 6)
1
13 lisp> (tdegreehseriesout 7)
1
15 lisp> (groebnerfinish)

```
The obtained result presented as a rational function is the following:
 1+t+t2 −t3 − t4 1−t .
The sequence of (tdegreehseriesout degree) displays the corresponding power series coefficients representing the series:
 1+2t+3t2+2t3+t4+t5+t6+t7+ . . .
All the functions listed abowe are collected in the procedure hilbert destined to commutative Hilbert series computation reducing the manipulation to its call only. The previous example might be computed using this procedure:
```1 lisp> (hilbert)
Input the maximal power series degree you want to calculate
1 lisp> 6
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars x,y;
algebraic form input> x^3, x*y^2-x^2*y;
% 3
-x^2*y+x*y^2,
x^3,

% 4
x*y^3,

Hilbert series numerator:   +1*t^0+1*t^1+1*t^2-1*t^3-1*t^4
Hilbert series denominator:  1-t
Hilbert power series:        1+2t^1+3t^2+2t^3+t^4+t^5+t^6+...
Done

```
In this example both rational and power series are displayed. To avoid the last one it is necessary to input the maximal power series degree 0.
To perform the input from a file one should prepare it including the following lines:
```(setmaxdeg 6)
(algforminput)
vars x,y;
x^3, x*y^2-x^2*y;

```
The corresponding call containing one input file and two output files - for Gröbner basis and Hilbert series - looks like:
```(hilbert ``input_file'' ``output_gb_file'' ``output_hs_file'')

```

### 2.8.2  Computation of Gröbner basis using knownHilbert series

It rather often happens that we know (at least partly) the Hilbert series before we start any computations. Bergman proposes an efficient optimisation of the Gröbner basis calculations in those cases. Here we learn us how to translate our knowledge about the Hilbert series to bergman. Let us consider a classical example.
Suppose that we want to calculate Gröbner basis of the following ideal (the corresponding system of equations, when z=1, has a proper name "6-cyclic roots system")

 a+b+c+d+e+f,

 ab+bc+cd+de+ef+fa,

 abc+bcd+cde+def+efa+fab,

 abcd+bcde+cdef+defa+efab+fabc,

 abcde+bcdef+cdefa+defab+efabc+fabcd,

 abcdef−z6;
It is not so difficult to calculate Gröbner basis of this ideal - it takes (on our computer) about 7.72 sec. From the literature we can find that Hilbert series of the corresponding factor-ring is equal to
 1 +4t+9t2+15t3+20t4+22t5+19t6+ 11t7+t8−7t9−10t10−12t11−10t12−5t13+2t15 (1−t)2 =

 1 +6t+20t2+49t3+98t4+169t5+ 259t6+ 360t7+ 462t8+ 557t9+ 642t10+ 715t11+

 +778t12 +836t13+ 894t14+ 954t15+ 1014t16+ 1074t17+ 1134t18+ 1194t19+ . . .
The following session shows how to calculate Gröbner basis in 3.3 sec - more than twice faster!
```
1 lisp> (setinterruptstrategy minhilblimits)
nil
2 lisp> (sethseriesminima 1 6 20 49 98 169 259 360 462 557 642
715 778 836 894 954 1014 1074 1134 1194)
t
3 lisp> (simple "sixroots" "sixroots.bg")
t
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
nil
4 lisp>

```
Now some comments. In the first line bergman is informed that the strategy of the computations is changed - we want bergman to stop the calculations in the current degree d when the desired coefficient of the Hilbert series is achieved (in this degree). The next line describes coefficients themselves.
The idea is evident - we cannot get more nontrivial elements in this degree d (otherwise Hilbert series will be less then it was prescribed). The responsibility of the user is clear too - if the restrictions would be above the real coeffitient (for example, if we, by mistake, write 269 instead of 259 in the example above) the result of computations may be absolutely wrong. To avoid such a situation (for example, when we are not sure in the part of the coefficients) one can use nil instead of the numbers. This informs bergman that the calculations in this degree goes "as usual".
Another even more efficient application of this technique is skipping the Gröbner basis calculations in those degrees when they were preliminary done before. Suppose that after a 20 hours of calculations we get a Gröbner basis until degree 4 and saved it in a file. The next day we use this file (after minor changes) as input file but do not want to repeat calculation in the degree 4 or less. The solution is the line
(sethseriesminima skipcdeg skipcdeg skipcdeg skipcdeg skipcdeg)
(note that we used 5 skipcdegs, because the first degree is 0). Don't forget to precede this line by (setinterruptstrategy minhilblimits).
There is another (more advanced) way of doing it, employing a little Lisp programming (and that if the degree is - say - 15 instead of 5, then indeed this may be the point to start entering the more advanced phase). The actual programming might look like
(sethseriesminimumdefault (cond ((lessp hsdeg 5) skipcdeg)))
or like
(sethseriesminima (default (cond ((lessp hsdeg 5) skipcdeg))))
The complete information about the possibilities of using the function (sethseriesminima) the user should find in the section 3.4.

## 2.9  The jumping rabbit

In this section we discuss the possibilities to perform non-homogeneous calculations. Let A = < X|R > be an algebra we are interesting in and suppose that not all of elements of R are homogeneous. One possible way to get a Gröbner basis for A is to homogenize all the relations using the additional variable t and to calculate a Gröbner basis for another algebra B= < X,t|Rh,txxt, xX > , where Rh stands for the set of homogenized relations. After dehomogenising the obtained Gröbner basis for B by putting t=1. Though it works theoretically with some orders, which eliminates t, the problem is that even for the finite dimensional algebra A a Gröbner basis for B is usually infinite. The reason is that B is not the same algebra as C, which is obtained from A by homogenizing all the relations of A (not only the defining relations!) That is why a reduced Gröbner basis for B contains a lot of elements of the form utk, where u=0 in C but not in B. Therefore after the dehomogenization we get a Gröbner basis in A that is far from being reduced. Thus it is practically impossible to use this approach for computing the Gröbner basis even for finite dimensional algebras.
To solve this problem bergman suggests a special procedure rabbit which starts from A, homogenizes the relations getting B and then calculates a reduced Gröbner basis for C instead of B (more exactly, a part of it until the given degree maxdeg).
The trick is to cancel all obtained elements of form utk replacing them by u. This means that after finishing calculations in some degree m=degu and doing calculations in the degree m+k we need to jump back to degree m and restart the calculations beginning from this degree! That is why the program is named rabbit and takes three parameters, which permit jumping to be organized in a more or less regular manner. The parameters are startdeg, jumpstep and maxdeg. So, (rabbit startdeg jumpstep maxdeg) is a call of the procedure, which works as follows. First it suggests to input generators and relations in usual manner starting from vars. Second it homogenizes the input and starts to calculate a Gröbner basis degree after degree. When the degree becomes equal to the startdeg it prepares for jumping. It means that it collects all the elements of Gröbner basis which can be canceled by the homogenizing variable. When jumpstep degrees mostly are done the program checks if something was collected. If not, the next jumpstep degrees should be done before the next checking. If yes, the canceling is performed and the degree is reduced to the minimum degree of new obtained relations and the process continues in the same manner. It stops when maxdeg is achieved or when no new Gröbner basis elements can be obtained. In both cases the dehomogenization is performed and the result is printed, but in the first case a warning that the Gröbner basis may be wrong is displayed. Jumping during the process is always shown, but to display the intermediate homogeneous relations the program has to be run in the debug mode.
In the following example a Gröbner basis for the algebra A= < a,b,c|ab=c,bc=a,ca=b > is calculated:
```2 lisp> (rabbit 2 2 8)
algebraic form input> vars a,b,c;a*b-c, b*c-a, c*a-b;
SetupGlobals
... done
Jump number 1

RABBIT: Jump number 2

RABBIT: Jump number 3

Jump number 4

GB is completely calculated
Rabbit have finished jumping. GB is
a*b-c,
b^2-a^2,
b*c-a,
c*a-b,
-c^2+a^2,
a^3-c*b,
-a^2*c+b*a,
b*a^2-a*c,
b*a*c-a*c*b,
-c*b*a+a*c*b,

nil

```
We see that the Gröbner basis is calculated completely and there are only 8 nonempty normal words: a,b,c,a2,ac,ba,cb,cba. One can conclude that a semigroup with our defining relations is in fact the quaternion group (because it has 8 elements and has those relations).
As a rule it is possible to apply rabbit with 0,1,2 or 3 parameters. The last case (with 3 integer parameters) corresponds to the example below. If no parameters are given, then the values of the "jumping variables" are set to 0,1 and 20 correspondingly. If there are 1 or 2 parameters they should be file names. The first (or the only) one is the input file, the second is destined to output. An input file may look like the following:
```
(setrabbit 2 2 8)
(algforminput)
vars a,b,c;
a*b-c, b*c-a, c*a-b;

```
where the first line sets the startdeg, jumpstep and maxdeg to 2,2 and 8 correspondingly applying the procedure setrabbit.

## 2.10  Some bricks to build your own procedures

In this section we suppose that the user have already tried procedures, described above and want to write his own, involving Gröbner bases calculations. Bergman is an open system, you have access to its source code, you can use each of its procedures as useful items in your own applications. There is a three levels hierarchy of procedures:
• the top-of-the-top level,
• the top level,
• the level of internal using.
Simple and ncpbhgroebner, for example, are top-of-the-top procedures, they solve completely some concrete problems - to compute Gröbner basis and series. But such procedures as algforminput, groebnerinit, groebnerkernel, groebnerfinish belong to the top level. The extended list of the top level procedures you can find in Chapter 3.
Users are recommended to use the procedures from the first two levels, if they would like to see how the last level looks like, they might read the source code.
Here we describe several procedures that can help you to perform your own calculations. The reader is already familiar with part of them and now we want to explain more carefully their functions.
The first thing that might be necessary is input. If the user wants algebraic form of input (instead of Lisp form) then the procedure algforminput should be used. You have see, above several examples of its using. Algforminput scans the succeeding input for variables list and/or polynomial list in algebraic form. If you type its call on the screen you get its prompt:
```
algebraic form input>

```
and the system is waiting for the input list.
If you perform the input from a file, you should put in this file the line: (algforminput) and vars... after that.
Gröbner basis calculations are organized in such a way that a user is able to include his own operators inside them. For this purposes they are divided into 3 separate procedures:
• groebnerinit, that initiates numerous internal variables. It should be called after selecting modes and doing input.
• groebnerkernel. Here the main calculations are performed. The results of calculations are saved in several variables and files (see section 4.2.4). You can use them in your own procedures.
• groebnerfinish. This procedure closes all files and restores variables and flags.
The user can include his code between those three procedures (see section 2.8.1 as example of such the inclusion).
There exists another way which demands less knowledge in the Lisp programming. The user has a possibility to have some minor influence on computations or displaying the result using custstrategy or custdisplay mode. To do this simply write (setcuststrategy t) or (setcustdisplay t) changing the corresponding mode (see 3.1).
After that the user has a possibility to write (or, better to say, to rewrite) several own procedures to change the strategy of the calculations or the displaying of the result. We refer to the section 2.14 for complete list of the procedures and here consider only one of them - degreeenddisplay. This top level procedure will be called immediately after the ending of the calculations in the current degree and exactly here we should "explain" to the computer what we would like to have as output.
Of course, the most natural way to do it is to take the existing template procedure which looks as
```(DE DEGREEENDDISPLAY ()
(PROGN
(DEGREEOUTPUT)
(TERPRI)
(PRIN2 "% No. of Spolynomials calculated until degree ")
(PRIN2 (GETCURRENTDEGREE)) (PRIN2 ": ")
(PRINT NOOFSPOLCALCS)
(PRIN2 "% Time: ") (PRINT (TIME))
))

```
If you have some difficulties to understand it (e.g. PRIN2 and TERPRI are some of the Lisp printing procedures) you can find the explanation using index at the end of the book. But maybe it will be easier when you will see the example below. Suppose, we want to print the leading monomials instead of the Gröbner basis elements. It is sufficient to replace the procedure degreeprintout, which prints all Gröbner basis elements by the existing procedure degreelmoutput which prints the leading monomials only.
You can write it directly (or better in a separate file, suppose its name is "mydisplay"):
```(DE DEGREEENDDISPLAY ()
(PROGN
(DEGREELMOUTPUT)
(TERPRI)
(PRIN2 "% No. of Spolynomials calculated until degree ")
(PRIN2 (GETCURRENTDEGREE)) (PRIN2 ": ")
(PRINT NOOFSPOLCALCS)
(PRIN2 "% Time: ") (PRINT (TIME))
))

```
Now we do our usual calculations. We use dskin to skip copying the file.
```1 lisp> (setcustdisplay t)
nil
2 lisp> (dskin "mydisplay")
*** Function `degreeenddisplay' has been redefined
degreeenddisplay
nil
3 lisp> (simple)
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars x,y;x*x-y*y,x*y;
SetupGlobals
... done
% 2
x*y
x^2

% No. of Spolynomials calculated until degree 2: 0
% Time: 30

% 3
y^3

% No. of Spolynomials calculated until degree 3: 1
% Time: 30

Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL), and run a new (SIMPLE).
nil

```
One can see we get the leading monomials only, as desired, time and the number of S-polynomials.

## 2.11  Modules over non-commutative algebras

In the previous sections we have described how to work with the ring (more exactly with the algebra over a field K) both in the commutative and non-commutative cases. In this section we restrict ourselves to non-commutative algebras only and will study modules over such algebras, and their homological properties.
Let A be a non-commutative algebra and M be a right module M over A. Bergman does not consider the module M as a special structure. Instead bergman works with a larger ring, that has as a generators set the union of the generators for A and M and as the set of the relations the union of the relations. This ring mathematically can be considered as the AT(M), where T(M) is the tensor algebra
 T(M)=K⊕M⊕M⊗M+ M⊗M⊗M+…,
and the multiplication is given by
 (a⊗m1…⊗mr)·(a′⊗n1…⊗ns) = a⊗m1…⊗mra′⊗n1…⊗ns.
It is important to understand how to extract the information from this extended ring to obtain the necessary results about the module M. We use mainly mathematics and partly some programming tricks to do this. But we still are working with the ring (though large). Nevertheless the computations of the Anick resolution are different in different cases and the user will get the warning about the changing mode from RING to MODULE, or TWOMODULES. All the procedures we describe below do changes automatically and those modes are important for Anick calculations only.
The structure of the section is the following. First we describe how to get Gröbner basis and Hilbert series for modules. Then the Anick resolution will be introduced and will be explained how to calculate Betti numbers for algebra A (i.e. dimensions B(i,j)=dimTorAi,j(K,K) in homological degree i and degree j). Betti numbers can be printed in two forms - ordinary B(i,j)=… and so-called Macaulay form, i.e. in matrix form C, where C(k,l)=B(l,k+l). We do not loose any information because B(i,j)=0 if j < i.
Using Anick resolution for the extended ring we will extract Anick resolution and Betti numbers for the right module (i.e. B(i,j)=dimTorAi,j(M,K) and will show how to proceed with the right ideals, two-sided ideals, factor-algebras (considered as right modules) and how to work with this for left modules.
Then we consider the most general case B(i,j)=dimTorAi,j(M,N). Since this employs the computer resources maximally, it should not be used in the previous cases (although of course this can be done).
At last we will show how to calculate the Hochschild homology of an algebra.

### 2.11.1  Gröbner basis for modules overnon-commutative algebras

To obtain a Gröbner basis for a right module M over a non-commutative algebra A it is sufficient to calculate the Gröbner basis for the extended ring. In other words, one needs to input the union of the set of variables and a set of generators for M (considered as a right module) and all algebra and module relations (in any order). What we get is the set that is the union of two Gröbner bases - one for the algebra and one for our module. To distinguish them we need only to check the presence of a module variables. If an element contains a module variable (it should be on the first place if it was a right module and on the last if it was a left module) then the element belongs to the module Gröbner basis. Let us consider an example. Suppose we want to calculate a Gröbner basis for the right module M= < a,b|axby > over the algebra A= < x,y|x2y2 > . We can do it (after the switching to the non-commutative mode), for example, with the help of the procedure simple (note the order we used in variable names - we want x be larger than y and a larger than b).
```2 lisp>  (noncommify)
nil
3 lisp> (simple)
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form (noncomm.) input> vars y,x,b,a;x*x-y*y,a*x-b*y;
+t^2*(2*z^2)
% 2
x*x-y*y,
a*x-b*y,

+t^3*(2*z^2+2*z^3)
% 3
x*y*y-y*y*x,
a*y*y-b*y*x,

+t^4*(2*z^3+2*z^4)
Done

```
What we get are two Gröbner bases: one for the algebra:
 xx−yy,xy2−y2x
and another for the module:
 ax−by,ay2−byx.
Now we can construct a K−basis for M, which consists of the normal words, containing a or b on the first place and only algebra variables after them, i.e.:
 a,b; ay, bx,by; ayx,bxy,byx,byy; ayxy,bxyx, byxy, byyx,byyy;…
and we can even calculate the Hilbert series:
 HM(t)=2t+3t2+4t3+… = 2t−t2 (1−t)2 .
Unfortunately we do not get the correct Hilbert series if we will try to use the procedure ncpbhgroebner - instead we get the Hilbert series for the extended ring R. But knowing it and the Hilbert series for algebra A one can obtain the Hilbert series for M using the formula
 HR=HA  1 1−HM  .
But if the user needs a Hilbert series he can apply a procedure that uses this formula and is described in the following section.

### 2.11.2  Hilbert series for modules overnon-commutative algebras

It is possible to calculate both Gröbner basis and Hilbert series for finitely-presented (right or left) modules. Gröbner bases and Hilbert series computations for modules are performed by the top level procedure modulehseries. It is necessary to input:
• the maximal degree of computation,
• the number of module variables,
• the list of the algebra and module variables, (the algebra variables should be at the beginning of the list),
• the algebra relations (more exactly - ideal generators, because instead of the relation ri=0 we input ri itself.)
• the module relations.
The input/output may be performed from the screen or by means of files. Depending of this the procedure call may contain 0, 2, 3 or 4 parameters.
Interactive input/output.
It is the simplest way to start the computations. You should type only: (modulehseries)
In this case a dialogue is initiated. The user is asked to input:
• the maximal degree of computation,
• the number of module variables,
• the list of the algebra and module variables (the algebra variables should be at the beginning of the list) and the ideal generators,
Receiving this data the Gröbner basis for ideal is calculated and user is asked to input
• the module relations.
Here is an example of computations over modules:
```2 lisp> (modulehseries)
*** Function `modulehseries' has been redefined
*** We turn on noncommutativity
Input the Maximum Degree you want to calculate
2 lisp> 4
Input the number of module generators
2 lisp> 2
Now input ALL ring and module variables but ONLY
the ring ideal generators in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are all the variables,
and r1, ..., rm the generators.
algebraic form (noncomm.) input> vars x,y,a,b;
algebraic form (noncomm.) input> x*x-y*y, x*y;
+t^2*(2*z^2)
% 2
x*y,
-y^2+x^2,

+t^3*(2*z^2+2*z^3)
% 3
x^3,
y*x^2,

+t^4*(6*z^3+2*z^4)
+14*z^2
+48*z^3
+168*z^4
Now input ONLY the module relations,
thus:    r1, ..., rm;
where  r1, ..., rm are the module relations.
algebraic form (noncomm.) input> a*x-b*y;
+t^2*(3*z^2)
% 2
-b*y+a*x,

+t^3*(3*z^2+3*z^3)
% 3
b*x*x,

+t^4*(9*z^3+3*z^4)
Done
+13*z^2
+40*z^3
+127*z^4

Here is (1-H)^(-1) for the Hilbert series H of the module

+1
+2*t^1
+7*t^2
+22*t^3
+69*t^4
Here is the Hilbert series H of the module
+2*t^1
+3*t^2
+2*t^3
nil
3 lisp>

```
Input from a file - output on the screen
In this case you should type the procedure call with two parameters, which are names of existing files.
(modulehseries < file1 > < file2 > )
The file < file1 > should contain:
• the maximal degree of computation defined by
(setmaxdeg degree)
• the number of module generators defined by
(setq nmodgen number)
• the procedure call to process the list of variables presented in algebraic form:
(algforminput)
• the list of the algebra and module variables (the algebra variables should be at the beginning of the list). To input them it is necessary to write (without brackets!):
vars v1, ... , vn;
r1,...,rn;
where vi are the algebra and module variables, ri are the ideal generators only. Note that the items are separated by commas and every list is ended by semicolon.
Besides the above mentioned strings this file may contain flags and variables setting etc. according to bergman common rules explained above and in the next chapter.
The file < file2 > should contain:
• the procedure call to process the list of variables presented in algebraic form:
(algforminput)
• the module relations:
m1,...,mn;
The file "tesths1" is an example of < file1 > :
```(setmaxdeg 16)
(setq nmodgen 2)
(algforminput)
vars z,y,x,b,a;
x*x, x*y+z*x;

```
and the file "tesths2" is an example of < file2 > :
```(algforminput)
a*x*y-b*y*y+14*b*z*z,
a*z*z*z-b*x*z*y;

```
Errors messages.
If there was only one parameter in the parameter list it yields the following message:
***It must be two input files.
Input data from keyboard
and the system will turn to the interactive input/output mode.
If some file name is not a name of an existing file it yields the following message:
***Input file must exist
Input data from keyboard
and the system will turn to the interactive input/output mode.
Input from the files - output to one or two files
In this case the procedure call contains three or four parameters and looks like
(modulehseries < file1 > < file2 > < file3 > < file4 > )
The first two are input files and should respect all the rules mentioned above. The third parameter is a file to output Gröbner basis, the fourth is destined for Hilbert series output. If the last parameter is absent only the Gröbner basis will be printed in the file. Independently of the number of parameters, the resulted Gröbner basis and Hilbert series always are displayed on the screen (in the two last cases the output is performed simultaneously in files and on the screen). If the output file is one of the existing it will be overwritten without some warning message.
Errors messages.
If the name of the third file is incorrect (it is not a quoted string), it yields the following message:
***Incorrect output file.
Do you agree to use the file outf mgb as output?
Type Yes or No

and the system will be switched to waiting of input.
If your answer is Y (it means "Yes") the following message will be displayed:
outf mgb is used as output file.
Don't forget to rename it after calculations!

and computing will continue using the file outf mgb as output file to print the resulting Gröbner basis.
If your answer is N ("Not") the following message will be displayed:
No output file. Program is cancelled
and bergman will finish its work.
If the fourth parameter is incorrect an analogous dialogue appears proposing to use the file outf mhs to output Hilbert series.

### 2.11.3  The Anick resolution and Betti numbers for the trivial module

The Anick resolution and the Betti numbers for K as a trivial module may be computed in the non-commutative case. Resolution and Betti numbers for an arbitrary right module over non-commutative ring are described in the subsection 2.11.5.
To perform the calculations it is necessary to apply the procedure anick
It is necessary to input:
• the maximal degree of computation,
• the list of the algebra variables,
• the algebra relations.
The input/output may be performed from the screen or by means of files. Depending of this the procedure call may contain 0, 1 or 2 parameters.
Interactive input/output
This is the simplest way to start the computations. You should type only:
(anick)
In this case a dialog is initiated. The user is asked to input:
• the maximal degree of computation,
• the list of the ideal variables and relations.
Here is an example of computation:
```
2 lisp> (anick)
*** We turn on noncommutativity
Input the Maximum Degree you want to calculate
2 lisp> 4

Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars x,y; x*x+y*y+x*y+y*x;
The Anick resolution initialization...
B(1,1)=2
The Anick resolution initialization done.
+t^2*(z^2)
% 2
y^2+y*x+x*y+x^2,

Calculating the Anick resolution in degree 2...
B(1,1)=2
B(2,2)=1
0   1   2
+----------
0 | 1   2   1
1 | -   -
end of Calculations.
+t^3*(z^3)
Calculating the Anick resolution in degree 3...
B(1,1)=2
B(2,2)=1
B(3,3)=1
0   1   2   3
+--------------
0 | 1   2   1   1
1 | -   -   -
2 | -   -
end of Calculations.

Groebner basis is finite.
If you want to continue calculations until maximal degree
type (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
nil
3 lisp> (calculateanickresolutiontolimit (getmaxdeg))
Calculating the Anick resolution in degree 4...
B(1,1)=2
B(2,2)=1
B(3,3)=1
B(4,4)=1
0   1   2   3   4
+------------------
0 | 1   2   1   1   1
1 | -   -   -   -
2 | -   -   -
3 | -   -
end of Calculations.
nil
4 lisp> (anickdisplay)
Printing the results ...
Printing is done.
nil
5 lisp> (quit)

```
The procedure prints in every degree new Gröbner basis elements and all Betti numbers both in ordinary and Macaulay form. Sometimes (when the Gröbner basis is finite) it finishes the calculations before the desired maximal degree is achieved. To continue the calulations the user can write the suggested line
(calculateanickresolutiontolimit (getmaxdeg))
(e.g. copying from the prompt). Of course the number (getmaxdeg) may be replaced by another one. All the intermediate results, if any, are printed on the terminal.
The procedure (anick) does not print the resolution itself, though calculates it. To print the resolution and Betti numbers into a file one should use the procedure (anickdisplay). It prints the outcoming resolution in the file which name is assigned to the variable anickresolutionoutputfile. If no file name is assigned the result by default will be printed in the file andifres.txt. Note that the assigment should be done before the call of (anick), for example as
```(setq anickresolutionoutputfile "resolution.txt")

```
Another important note is that this file is impossible to see before it will be closed. In our example it was achieved simply by quitting bergman. You can see the computed resolution in the resulting file (andifres.txt by default) in your current directory.
```
D(0, x)=1.x
D(0, y)=1.y
D(1, yy)=y.y+y.x+x.y+x.x
D(2, yyy)=yy.y+yy.x
D(3, yyyy)=yyy.y+yyy.x
B(1,1)=2
B(2,2)=1
B(3,3)=1
B(4,4)=1
0   1   2   3   4
+------------------
0 | 1   2   1   1   1
1 | -   -   -   -
2 | -   -   -
3 | -   -

```
D(1, yy)=y.y+y.x+x.y+x.x means that there exists the only 1-chain - yy and the differential d1 acts as
 d1: y2⊗1 → y⊗y+y⊗x+ x⊗y +x⊗x,
thus the sign "." means the tensor product (see more comments about the Anick resolution for example in [2],[23]).
To have a file input and screen output one should type
(anick < file1 > )
The file < file1 > should contain:
• the maximal degree of computation defined by
(setmaxdeg degree). In fact this line may be omitted. In this case calculations will finish when the Gröbner basis will be completely calculated or be formally infinite (until there are enough resources).
• the procedure call to process the list of variables presented in algebraic form:
(algforminput)
• the list of the algebra variables and the list of the algebra relations. To input them it is necessary to write (without brackets!):
vars v1, ... , vn;
r1,...,rn;
where vi are the algebra variables, ri are the algebra relations. Note that the items are separated by commas and every list is ended by semicolon.
The following file"anick" is an example of < file1 > :
```(setmaxdeg 4)
(algforminput)
vars x,y,a,b;
x*x-y*y, a*x-b*y;

```
To have a file input and file output for Gröbner basis one should type
(anick < file1 > < file2 > )
where < file2 > is an output file containing the corresponding Gröbner basis. Note that output file does not contain results related to the Anick resolution. For this purpose one should define before apply anick the corresponding output file by (setq anickresolutionoutputfile < file3 > ).

### 2.11.4  Writing own procedures

The procedures described above and later are sufficient to make different type of calculations of Betti numbers. Nevertheless the user can find their output inconvenient or insufficient. To give him a possibility to create without problem his own procedure we will describe in this subsection how the procedure anick is organized.
Inside this short procedure the reader can find the following important lines:
(setringobject) to switch to the RING mode,
(noncommify) to switch to the non-commutative mode and
Those lines are mandatory.
As usual, doing non-commutative computations it is recommended to limit the process with some maximal degree. Thus the next procedure could be:
(setmaxdeg degree)
Two following flags are switched on:
• (on calcbetti) - turns on the Betti numbers calculation mode. This flag is mandatory.
• (on onflybetti) - informs the application to calculate Betti numbers after each degree of Gröbner basis is operated out. This allows to view Betti numbers degree by degree during the Gröbner basis computations.
Both switches can be set on by the only procedure (onflybetti value ), where value should have the value T to switch ON and NIL for OFF.
After that the user can call simple, which performs all the calculations, one can obtain now not only Gröbner basis, but the Anick resolution and Betti numbers also. But (s)he may also replace simple by the series of procedures, described in section 2.10.
One useful procedure is (calculateanickresolutiontolimit n) which invokes a method for calculation of the Anick resolution till the given degree n.
All the intermediate results, if any, are printed on the terminal. Here is an example of the session which explains how the procedure anick works.
```2 lisp> (setringobject)
nil
3 lisp> (noncommify)
nil
nil
5 lisp> (setmaxdeg 4)
nil
6 lisp> (onflybetti)
nil
7 lisp> (simple)
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars x;x*x;
The Anick resolution initialization...
B(1,1)=1
The Anick resolution initialization done.
+t^2*(z^2)
% 2
x^2,
Calculating the Anick resolution in degree 2...
B(1,1)=1
B(2,2)=1
0   1   2
+----------
0 | 1   1   1
1 | -   -
end of Calculations.
+t^3*(z^3)
Calculating the Anick resolution in degree 3...
B(1,1)=1
B(2,2)=1
B(3,3)=1
0   1   2   3
+--------------
0 | 1   1   1   1
1 | -   -   -
2 | -   -
end of Calculations.
Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).
nil
8 lisp>

```

### 2.11.5  The Anick resolution and Betti numbers for a right module

It is possible to calculate Anick resolution and Betti numbers for a homogenious right module over non-commutative algebra. The computation is performed by the top level procedure modulebettinumbers. It is necessary to input:
• the maximal degree of computation,
• the number of module variables,
• the list of the algebra and module variables (the algebra variables should be at the beginning of the list),
• the algebra relations (more exactly - the corresponding ideal generators, but it will be convenient to call them relations to avoid in the future ambiguity in the interpretation of the word "generators")
• the module relations.
The input/output may be performed from the screen or by means of files. Depending of this the procedure call may contain 0, 1 or 2 parameters.
Interactive input/output
It is the simplest way to start the computations. You should type only:
(modulebettinumbers)
In this case a dialogue is initiated. The user is asked to input:
• the maximal degree of computation,
• the number of module variables,
• the list of the algebra and module variables (the algebra variables should be at the beginning of the list) and the algebra and module relations.
Here is an example of computations over modules:
```1 lisp> (setq anickresolutionoutputfile  "resolution.txt")
"resolution.txt"
2 lisp> (modulebettinumbers)

*** We turn on the MODULE mode
*** We turn on noncommutativity
Input the Maximum Degree you want to calculate
2 lisp> 5
Input the number of the module variables
2 lisp> 1
Now input all ring and then all module variables.
Input  the ring ideal and module relations
in algebraic form  thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are all the variables,
and r1, ..., rm the  relations.
algebraic form input>  vars x,a;x*x,a*x;
The Anick resolution initialization...
B(0,0)=1
The Anick resolution initialization done.
+t^2*(2*z^2)
% 2
x^2,
a*x,

Calculating the module Anick resolution in degree 2...
B(0,0)=1
B(1,1)=1
0   1   2
+----------
0 | 1   1
1 | -
end of Calculations.
+t^3*(2*z^3)
Calculating the module Anick resolution in degree 3...
B(0,0)=1
B(1,1)=1
B(2,2)=1
0   1   2   3
+--------------
0 | 1   1   1
1 | -   -
2 | -
end of Calculations.

Groebner basis is finite.
If you want to continue calculations until the maximal
degree type (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
nil
3 lisp>  (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
Calculating the module Anick resolution in degree 4...
B(0,0)=1
B(1,1)=1
B(2,2)=1
B(3,3)=1
0   1   2   3   4
+------------------
0 | 1   1   1   1
1 | -   -   -
2 | -   -
3 | -
end of Calculations.
Calculating the module Anick resolution in degree 5...
B(0,0)=1
B(1,1)=1
B(2,2)=1
B(3,3)=1
B(4,4)=1
0   1   2   3   4   5
+----------------------
0 | 1   1   1   1   1
1 | -   -   -   -
2 | -   -   -
3 | -   -
4 | -
end of Calculations.
nil
4 lisp> (anickdisplay)
Printing the results ...
Printing is done.
nil
5 lisp> (quit)

```
In this example the input is performed from the screen and, correspondingly, the result is displayed on the screen also. The computed resolution you can see in the file resolution.txt in your current directory. For this example it contains just:
```D(0, a)=1.a
D(1, ax)=a.x
D(2, axx)=ax.x
D(3, axxx)=axx.x
D(4, axxxx)=axxx.x
B(0,0)=1
B(1,1)=1
B(2,2)=1
B(3,3)=1
B(4,4)=1
0   1   2   3   4   5
+----------------------
0 | 1   1   1   1   1
1 | -   -   -   -
2 | -   -   -
3 | -   -
4 | -

```
Note that in the case of Betti numbers computations the module generators are considered as zero degree elements. That is why the maximal degree which we have got for Betti numbers is one less than the maximal degree used in the Gröbner basis calculations.
To have a file input and screen output one should type
(modulebettinumbers < file1 > )
The file < file1 > should contain:
• the maximal degree of computation defined by
(setmaxdeg degree). In fact this line may be omitted. In this case calculations will finish when the Gröbner basis will be completely calculated or be formally infinite (until there are enough resources).
• the number of module generators defined by
(setq nmodgen number)
• the procedure call to process the list of variables presented in algebraic form:
(algforminput)
• the list of the algebra and module variables (the algebra variables should be at the beginning of the list) and the list of the algebra and module relations. To input them it is necessary to write (without brackets!):
vars v1, ... , vn;
r1,...,rn;
where vi are the algebra and module variables, ri are the algebra and module relations. Note that the items are separated by commas and every list is ended by semicolon.
Besides the above mentioned strings this file may contain flags and variables setting etc. according to bergman common rules explained above and in the next chapter.
The following file"bnmt" is an example of < file1 > :
```(setmaxdeg 4)
(setq nmodgen 2)
(algforminput)
vars x,y,a,b;
x*x-y*y, a*x-b*y;

```
To have a file input and file output for Gröbner basis one should type
(modulebettinumbers < file1 > < file2 > )
where < file2 > is an output file containing the corresponding Gröbner basis. Note that output file does not contain results related to the Anick resolution.

### 2.11.6  The Anick resolution and Betti numbers for right, two-sided ideals, and factor-algebras, considered as right modules

Though we have a possibility to calculate Betti numbers for arbitrary module, we need to know defining relations for it and it is not always convenient. Here we describe another procedure that may be used for calculating Betti numbers for an ideal I in a given algebra A.
If I is a right ideal, generated by the set S, then we can consider a factor-module M = A/I and get an exact sequence IAM.
The Betti numbers for I could be extracted without problem from the Betti numbers for M (they are only shifted by one), but the module M is nothing else than a one-generated module. It means that we can use our procedure modulebettinumbers to calculate the Betti numbers.
The situation is more complicated if I is a two-sided ideal, generated by a set S. In this case M is nothing else than the factor-algebra, and still is one-generated (considered as a right module). But now we do not know the defining relations for this module, because I was two-sided and we do not have generators for I as a right ideal.
There is a special procedure factalgbettinumbers that solves this problem. It calculates Betti numbers for M using only S (and the relations for A). It has usual parameters, described later, but to work with the input for this procedure the user should introduce additional variables and relations.
We start from the variable list vars. The user needs the algebra variables, a copy for every algebra variable, and one additional variable for the module. In the list of variables the single module variable should be in the middle - after algebra variables and before their copies.
As to the relations, they should contain (in any order) all algebra relations, all ideal generators, multiplied from the left by the module variable.
Some additional relations of the form
(copy of variable)*(module_ variable)-(module_ variable)*(variable)
for every variable of the algebra are generated automatically by the corresponding procedure.
Example. Suppose that the algebra has x, y as variables and x*y as single defining relation. We want to consider a two-sided ideal generated by x and to calculate Betti numbers for a corresponding factor-algebra.
Suppose that we have selected the names X and Y for copies of x and y and c for module variable. Then the input my look like
```vars x,y,c,X,Y; x*y, c*x;

```
The computation is performed by the top level procedure factalgbettinumbers. It is necessary to input:
• the maximal degree of Gröbner basis computation,
• the list of the algebra variables, the module variable and copies of the algebra variables, as it is described above.
• the algebra relations,
• the ideal generators, multiplied by the module variable.
The input/output may be performed from the screen or by means of files. Depending of this the procedure call may contain 0, 1 or 2 parameters.
Interactive input/output
It is the simplest way to start the computations. You should type only: (factalgbettinumbers)
In this case a dialog is initiated. The user is asked to input:
• the maximal degree of computation,
• the input list of variables and relations.
Here is an example of computation:
```
1 lisp> (factalgbettinumbers)
*** We turn on the MODULE mode
*** We turn on noncommutativity
Input the Maximum Degree you want to calculate
1 lisp> 5
Now input all ring variables, a dummy variable (D),
and copies of the ring variables
(in this order), in this manner:
vars x1, ..., xn, D, y1, ..., yn;
(where x1,..., xn are the ring varables,
and y1,...,yn their copies)
Then input  the ring ideal relations
(in ordinary algebraic form);
but the factor algebra relations in the form
D*r1, ..., D*rm,
where r1, ..., rm are the relations.
algebraic form input>  vars x,y, D, X,Y;
algebraic form input>  x*y,y*x, y*y,D*x*x;
The Anick resolution initialization...
B(0,0)=1
The Anick resolution initialization done.
+t^2*(5*z^2)
% 2
x*y,
y*x,
y^2,
X*D-D*x,
Y*D-D*y,

Calculating the module Anick resolution in degree 2...
B(0,0)=1
0   1
+------
0 | 1
end of Calculations.
+t^3*(z^2+5*z^3)
% 3
D*x^2,

Calculating the module Anick resolution in degree 3...
B(0,0)=1
B(1,2)=1
0   1   2   3
+--------------
0 | 1   -   -
1 | -   1
2 | -
end of Calculations.
+t^4*(3*z^3+8*z^4)
Calculating the module Anick resolution in degree 4...
B(0,0)=1
B(1,2)=1
B(2,3)=1
0   1   2   3   4
+------------------
0 | 1   -   -   -
1 | -   1   1
2 | -   -
3 | -
end of Calculations.

Groebner basis is finite.
If you want to continue calculations until the maximal
degree type (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
nil
2 lisp> (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
Calculating the module Anick resolution in degree 5...
B(0,0)=1
B(1,2)=1
B(2,3)=1
B(3,4)=2
0   1   2   3   4   5
+----------------------
0 | 1   -   -   -   -
1 | -   1   1   2
2 | -   -   -
3 | -   -
4 | -
end of Calculations.
nil
3 lisp> (anickdisplay)
Printing the results ...
Printing is done.

```
In this example the input is performed from the screen and, correspondingly, the result is displayed on the screen also. The computed resolution you can see in the file andifres.txt in your current directory.
For this example it contains just:
```D(0, D)=1.D
D(1, Dx^2)=D.x^2
D(2, Dx^2y)=Dx^2.y
D(3, Dx^2yx)=Dx^2y.x
D(3, Dx^2yy)=Dx^2y.y
B(0,0)=1
B(1,2)=1
B(2,3)=1
B(3,4)=2
0   1   2   3   4   5
+----------------------
0 | 1   -   -   -   -
1 | -   1   1   2
2 | -   -   -
3 | -   -
4 | -

```
Note that in the case of Betti numbers computations the module generators are considered as zero degree elements. That is why the maximal degree which we have got for Betti numbers is one less than the maximal degree used in the Gröbner basis calculations. One can see in the second degree of Groebner basis the automatically generated additional realtions X*DD*x, Y*DD*y.
To have a file input and screen output one should type
(factalgbettinumbers < file1 > )
The file < file1 > should contain:
• the maximal degree of computation defined by
(setmaxdeg degree)
• the procedure call to process the list of variables presented in algebraic form:
(algforminput)
• the input list of variables and relations. To input them it is necessary to write (without brackets!):
vars v1, ... , vn;
r1,...,rn;
where vi are the algebra, module or copy variables, ri are all the relations. Note that the items are separated by commas and every list is ended by semicolon.
Besides the above mentioned strings this file may contain flags and variables setting etc. according to bergman common rules explained above and in the next chapter.
The following file"ftinput" is an example of < file1 > :
```(setmaxdeg 8)
(algforminput)
vars  x,y,c,X,Y;
x*y,  c*x;

```
One can apply factalgbettinumbers with two parameters:
(factalgbettinumbers < file1 > < file2 > )
The < file2 > is an output file containing the corresponding Gröbner basis.
Sometimes, especially if the Gröbner basis is finite, the calculation of the Anick resolution can be stopped before the desired degree is achieved. One can see in the example how to continue the computing using the procedure (calculateanickresolutiontolimit).
The procedure (anickdisplay) prints the complete resolution (with the differentials) into the file. Because no file name was assigned to the variable anickresolutionoutputfile the result by default was printed into the file andifres.txt.

### 2.11.7  Working with the left modules

We have described some procedures for the right modules. The user might expect that the same procedure can be used for the left modules, but it is not the case for the procedures calculating resolution and Betti numbers. The reason is that the Anick resolution is constructed as an exact sequence of right modules, and this was essentially used in programming. Of course, it would be possible to program the left variant too, but it is much less trivial than one might expect. There is the only procedure designed to operate with left modules: leftmodulebettinumbers. Let us see an example of its applying:
```1 lisp>  (leftmodulebettinumbers)
Input the Maximum Degree you want to calculate
1 lisp> 5
Input the number of the module variables
1 lisp> 1
Now input all ring and then all module variables.
Input  the ring ideal and module relations
in algebraic form  thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are all the variables,
and r1, ..., rm the  relations.
algebraic form input> vars x,a; x*x, x*a;
The Anick resolution initialization...
B(0,0)=1
The Anick resolution initialization done.
+t^2*(2*z^2)
% 2
x^2,
a*x,

Calculating the module Anick resolution in degree 2...
B(0,0)=1
B(1,1)=1
0   1   2
+----------
0 | 1   1
1 | -
end of Calculations.
+t^3*(2*z^3)

Calculating the module Anick resolution in degree 3...
B(0,0)=1
B(1,1)=1
B(2,2)=1
0   1   2   3
+--------------
0 | 1   1   1
1 | -   -
2 | -
end of Calculations.

Groebner basis is finite.
If you want to continue calculations until the maximal
degree type (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
nil
2 lisp> (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
Calculating the module Anick resolution in degree 4...
B(0,0)=1
B(1,1)=1
B(2,2)=1
B(3,3)=1
0   1   2   3   4
+------------------
0 | 1   1   1   1
1 | -   -   -
2 | -   -
3 | -
end of Calculations.
Calculating the module Anick resolution in degree 5...
B(0,0)=1
B(1,1)=1
B(2,2)=1
B(3,3)=1
B(4,4)=1
0   1   2   3   4   5
+----------------------
0 | 1   1   1   1   1
1 | -   -   -   -
2 | -   -   -
3 | -   -
4 | -
end of Calculations.
nil
3 lisp>

```
As you see the procedure simply calculates in the corresponding right module, using the fact that the Betti numbers are the same. Unfortunately, there are no more special left module processing procedures in bergman. Instead the user should use mathematical approach and replace a left module N over an algebra A by the right module M over the algebra Aop. What one need to do is only to rewrite all words in the defining relations in the inverse order (as you see, it was done automatically above). For example, if one have two relations: x*y+ y*y in the algebra and y*x*a+2*y*x*b in the module they should be replaced by y*x+y*y and a*x*y+2*b*x*y correspondingly.
Example. We would like to know if the two-sided ideal I, generated in the algebra A= < x,y|xxxy > by the element x has the same Betti numbers considered as a right or as a left module. The following session gives us both calculations (we start from the right module and after that perform computing for the left module).
```2 lisp>  (factalgbettinumbers)

*** We turn on the MODULE mode
*** We turn on noncommutativity
Input the Maximum Degree you want to calculate
2 lisp> 4
Now input all ring variables, a dummy variable (D),
and copies of the ring variables
(in this order), in this manner:
vars x1, ..., xn, D, y1, ..., yn;
(where x1,..., xn are the ring varables,
and y1,...,yn their copies
Then input  the ring ideal relations
(in ordinary algebraic form);
but the factor algebra relations in the form
D*r1, ..., D*rm,
where r1, ..., rm are the relations.
Finally, input the dummy commutators
y1*D-D*x1, ..., ym*D-D*ym;
algebraic form input>  vars x,y,c, X,Y;
algebraic form input>  x*x-x*y, c*x;
The Anick resolution initialization...
B(0,0)=1
The Anick resolution initialization done.
+t^2*(4*z^2)
% 2
-x*y+x^2,
c*x,
X*c,
Y*c-c*y,

Calculating the module Anick resolution in degree 2...
B(0,0)=1
B(1,1)=1

0   1   2
+----------
0 | 1   1
1 | -
end of Calculations.
+t^3*(z^2+3*z^3)
% 3
c*y*x,

Calculating the module Anick resolution in degree 3...
B(0,0)=1
B(1,1)=1
B(1,2)=1
B(2,2)=1
0   1   2   3
+--------------
0 | 1   1   1
1 | -   1
2 | -
end of Calculations.
+t^4*(z^2+3*z^3+2*z^4)
% 4
c*y^2*x,

Calculating the module Anick resolution in degree 4...
B(0,0)=1
B(1,1)=1
B(1,2)=1
B(2,2)=1
B(1,3)=1
B(2,3)=1
0   1   2   3   4
+------------------
0 | 1   1   1   -
1 | -   1   1
2 | -   1
3 | -
end of Calculations.

nil
3 lisp>  (clearideal)
Closing the streams.Cleaning the variables
nil
4 lisp> (factalagbettinumbers)
Input the Maximum Degree you want to calculate
4 lisp> 4
Now input all ring variables, a dummy variable (D),
and copies of the ring variables
(in this order), in this manner:
vars x1, ..., xn, D, y1, ..., yn;
(where x1,..., xn are the ring varables,
and y1,...,yn their copies
Then input  the ring ideal relations
(in ordinary algebraic form);
but the factor algebra relations in the form
D*r1, ..., D*rm,
where r1, ..., rm are the relations.
Finally, input the dummy commutators
y1*D-D*x1, ..., ym*D-D*ym;
algebraic form input>  vars x,y,c, X,Y;
algebraic form input>  x*x-y*x,c*x;
The Anick resolution initialization...
B(0,0)=1
The Anick resolution initialization done.
+t^2*(4*z^2)
% 2
-y*x+x^2,
c*x,
X*c,
Y*c-c*y,

Calculating the module Anick resolution in degree 2...

B(0,0)=1
B(1,1)=1

0   1   2
+----------
0 | 1   1
1 | -
end of Calculations.
+t^3*(2*z^3)
Calculating the module Anick resolution in degree 3...
B(0,0)=1
B(1,1)=1
0   1   2
+----------
0 | 1   1
1 | -
end of Calculations.

Groebner basis is finite.
If you want to continue calculations until the maximal
degree type (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
nil
5 lisp> (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
Calculating the module Anick resolution in degree 4...
B(0,0)=1
B(1,1)=1
0   1   2
+----------
0 | 1   1
1 | -
end of Calculations.
nil

```
Note that the only difference is the term y*x instead of x*y, because other terms (x*x and x) are symmetric, but the results are quite different. Also note that in fact we could skip the call of the procedure calculateanickresolutiontolimit, because we could see that degree 3 was already proceeded and gave a different result.

### 2.11.8  Betti numbers for two modules

Here we describe a procedure that calculates the Betti numbers for the most general situation, when we have two modules: a right A-module M and a left A-module N and want to know the dimensions B(i,j)=TorAi,j(M,N) in every homological degree i and degree j as a vector graded space. Note that the procedure takes a lot of resources and it is recommended to use the procedures, described above for those special cases where they can be applied.
The computation is performed by the top level procedure twomodbettinumbers. It is necessary to input:
• the maximal degree of computation,
• the number of the right module variables,
• the number of the left module variables,
• the list of the algebra and module variables (the algebra variables should be at the beginning of the list, followed by right module variables. The left module variables should be at the end of the list.)
• the algebra and both module relations (in arbitrary order).
The input/output may be performed from the screen or by means of files. Depending of this the procedure call may contain 0, 1 or 2 parameters.
Interactive input/output
It is the simplest way to start the computations. You should type only:
(twomodbettinumbers)
In this case a dialogue is initiated. The user is asked to input:
• the maximal degree of computation,
• the number of the right module variables,
• the number of the left module variables,
• the list of the algebra and module variables (the algebra variables should be at the beginning and the left module variables should be at the end of the list.) and the ideal and module relations.
Here is an example of computations over modules:
```1 lisp> (twomodbettinumbers)

*** We turn on the TWOMODULES mode
*** We turn on noncommutativity
Input the Maximum Degree you want to calculate
1 lisp> 6
Input the number of the right  module variables
1 lisp> 1
Input the number of the left  module variables
1 lisp> 1
Now input all ring and then all module variables.
Right module variables should be before the left ones.
Input  the ring ideal and module relations
in algebraic form  thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are all the variables,
and r1, ..., rm the  relations.
algebraic form input> vars x,y,r,l;
algebraic form input> r*x, y*l-x*l;
SetupGlobals
... done
The Anick resolution initialization (for two modules)...
The Anick resolution initialization done.
+t^2*(2*z^2)
% 2
y*l-x*l,
r*x,

Calculating the module Anick resolution in degree 2...
B(0,0)=1

0   1   2
+----------
0 | 1

end of Calculations.

Groebner basis is finite.
If you want to continue calculations until the maximal
degree type (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
nil
2 lisp> (CALCULATEANICKRESOLUTIONTOLIMIT (GETMAXDEG))
Calculating the module Anick resolution in degree 3...
B(0,0)=1
0   1   2
+----------
0 | 1
end of Calculations.
Calculating the module Anick resolution in degree 4...
B(0,0)=1
B(0,2)=1
0   1   2   3   4
+------------------
0 | 1   -   -
1 | -   -
2 | 1
end of Calculations.
Calculating the module Anick resolution in degree 5...
B(0,0)=1
B(0,2)=1
B(0,3)=2
0   1   2   3   4   5
+----------------------
0 | 1   -   -   -
1 | -   -   -
2 | 1   -
3 | 2
end of Calculations.
Calculating the module Anick resolution in degree 6...
B(0,0)=1
B(0,2)=1
B(0,3)=2
B(0,4)=4
0   1   2   3   4   5   6
+--------------------------
0 | 1   -   -   -   -
1 | -   -   -   -
2 | 1   -   -
3 | 2   -
4 | 4
end of Calculations.
nil
3 lisp>

```
In our example the algebra is free - there were no algebra relations. Note that in the case of Betti numbers computations the module generators (both left and right) are considered as zero degree elements. That is why the maximal degree which we have got for Betti numbers is two less than the maximal degree used in the Gröbner basis calculations.
In this example the input is performed from the screen and, correspondingly, the result is displayed on the screen also. To have a file input and screen output one should type
(twomodbettinumbers < file1 > )
The file < file1 > should contain:
• the maximal degree of computation defined by
(setmaxdeg degree). In fact this line may be omitted. In this case calculations will finish when the Gröbner basis will be completely calculated or be formally infinite (until the resources are exhausted).
• the number of the right module generators defined by
(setq nrmodgen number)
• the number of the left module generators defined by
(setq nlmodgen number)
• the procedure call to process the list of variables presented in algebraic form:
(algforminput)
• the list of the algebra and module variables (in the order described above) and the list of the ideal and module relations. To input them it is necessary to write (without brackets!):
vars v1, ... , vn;
r1,...,rn;
where vi are the algebra and module variables, ri are the ideal and module relations. Note that the items are separated by commas and every list is ended by semicolon.
Besides the above mentioned strings this file may contain flags and variables setting etc. according to bergman common rules explained above and in the next chapter.
The following file"twomodtest" is an example of < file1 > :
```(setmaxdeg 4)
(setq nrmodgen 2)
(setq nlmodgen 2)
(algforminput)
vars  x,y,A1,A2,B1,B2;
x*x+x*y+y*x+y*y,
A1*x*x+A2*y*y,A1*y*y,y*x*B1+x*y*B2,y*y*y*B1;

```
To have a file input and file output for the Gröbner basis one should type (twomodbettinumbers < file1 > < file2 > ) where < file2 > is an output file containing the corresponding Gröbner basis. Note that output file does not contain results related to the Anick resolution.

### 2.11.9  Calculating Hochschild homology of an algebra

Let A be an algebra over K, Aop be the opposite algebra and Ae=AAop. It is known that in this situation A is K−flat and its Hochschild homology Hn(A) can be obtained by the isomorphism
 Hn(A)=TorAen(A,A),
where A is considered both as right and left Ae− module. Because we have a possibility to calculate TorAen(A,A) we need only to know how to get the defining relations for the algebra Ae, right Ae− module A and left Ae−module A.
Besides the original variables x,y… of the algebra A we need copies of them (for example X,Y…) to generate the algebra Aop, and two variables (for example, r and l ) for the right Ae− module A and left Ae−module A.
Now let us consider the relations. We need, of course, the defining relations for A, and the relations for Aop, which we get from A by reverting all the monomials and replacing variables by their copies.
To create Ae we need only to add the commutativity relations between all variables and all copies:
 xX−Xx, xY−Yx, yX−Xy, yY−Yy…
And at last the module relations should be appended. For the right module they looks like rxrX, ryrY… i.e. module generator, multiplied by the difference xX between a variable and its copy for every variable x. Note that as a right Ae−module A is isomorphic to the factor module
 Ae/(x⊗1 − 1⊗x)Ae+(y⊗1 − 1⊗y)Ae+…,
so the corresponding cyclic right module get the relations rxrX, ryrY,…. For the left module we need, of course the symmetric variant: xlXl, ylYl….
Let us consider an example. Suppose that we want to calculate the Hochschild homology of the algebra A= < x,y|xy=0 > . The session looks as following:
```2 lisp> (twomodbettinumbers)

*** We turn on the TWOMODULES mode
*** We turn on noncommutativity
Input the Maximum Degree you want to calculate
2 lisp> 5
Input the number of the right  module variables
2 lisp> 1
Input the number of the left  module variables
2 lisp> 1
Now input all ring and then all module variables.
Right module variables should be before the left ones.
Input  the ring ideal and module relations
in algebraic form  thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are all the variables,
and r1, ..., rm the  relations.
algebraic form input> vars x,y,X,Y,r,l;
algebraic form input> x*y,Y*X, x*X-X*x,
algebraic form input> x*Y-Y*x, y*X-X*y, y*Y-Y*y,
algebraic form input> r*x-r*X, r*y-r*Y, x*l-X*l, y*l-Y*l;
The Anick resolution initialization (for two modules)...
The Anick resolution initialization done.
+t^2*(10*z^2)
% 2
x*y,
-X*x+x*X,
-X*y+y*X,
-X*l+x*l,
-Y*x+x*Y,
-Y*y+y*Y,
Y*X,
-Y*l+y*l,
-r*X+r*x,
-r*Y+r*y,

Calculating the module Anick resolution in degree 2...
B(0,0)=1

0   1   2
+----------
0 | 1
end of Calculations.
+t^3*(4*z^2+12*z^3)
% 3
r*x*X-r*x^2,
-r*y*x+r*x*Y,
r*y*X,
r*y*Y-r*y^2,

Calculating the module Anick resolution in degree 3...
B(0,0)=1
B(0,1)=2
B(1,1)=2

0   1   2   3
+--------------
0 | 1   2
1 | 2
end of Calculations.
+t^4*(4*z^2+11*z^3+6*z^4)
% 4
r*x^2*X-r*x^3,
-r*y^2*x+r*x*Y^2,
r*y^2*X,
r*y^2*Y-r*y^3,

Calculating the module Anick resolution in degree 4...
B(0,0)=1
B(0,1)=2
B(1,1)=2
B(0,2)=2
B(1,2)=2
0   1   2   3   4
+------------------
0 | 1   2   -
1 | 2   2
2 | 2
end of Calculations.
+t^5*(4*z^2+11*z^3+6*z^4+z^5)
% 5
r*x^3*X-r*x^4,
-r*y^3*x+r*x*Y^3,
r*y^3*X,
r*y^3*Y-r*y^4,

Calculating the module Anick resolution in degree 5...
B(0,0)=1
B(0,1)=2
B(1,1)=2
B(0,2)=2
B(1,2)=2
B(0,3)=2
B(1,3)=2
0   1   2   3   4   5
+----------------------
0 | 1   2   -   -
1 | 2   2   -
2 | 2   2
3 | 2
end of Calculations.

```
Once again, the maximal degree of Betti numbers is two less than maximal degree we used in Gr\"obner basis calculations.
Instead of universal procedure twomodbettinumbers it is possibly to use a more convenient one hochschild designed especially for this purpose. In fact, it performs the same calculations, but the additional relations are generated automatically.
The following example (using the same variables and relations as above) illustrates its application:
```4 lisp> (hochschild)
Input the Maximum Degree you want to calculate
4 lisp> 5

Now input all ring variables, copies of the ring variables,
and two dummy variable (D1,D2)
(in this order), in this manner:
vars x1, ..., xn,  y1, ..., yn, D1, D2;
(where x1,..., xn are the ring varables,
and y1,...,yn their copies)
Then input  the ring ideal relations
(in ordinary algebraic form);
r1, ..., rm;

algebraic form input> vars  x,y, X,Y,r,l;
algebraic form input> x*y;
The Anick resolution initialization (for two modules)...
The Anick resolution initialization done.
+t^2*(10*z^2)
% 2
x*y,
-X*x+x*X,
-X*y+y*X,
X*l-x*l,
-Y*x+x*Y,
-Y*y+y*Y,
Y*X,
Y*l-y*l,
r*X-r*x,
r*Y-r*y,

Calculating the module Anick resolution in degree 2...
B(0,0)=1
0   1   2
+----------
0 | 1
end of Calculations.
+t^3*(4*z^2+12*z^3)
% 3
r*x*X-r*x^2,
-r*y*x+r*x*Y,
r*y*X,
r*y*Y-r*y^2,

Calculating the module Anick resolution in degree 3...
B(0,0)=1
B(0,1)=2
B(1,1)=2
0   1   2   3
+--------------
0 | 1   2
1 | 2
end of Calculations.
+t^4*(4*z^2+11*z^3+6*z^4)
% 4
r*x^2*X-r*x^3,
-r*y^2*x+r*x*Y^2,
r*y^2*X,
r*y^2*Y-r*y^3,

Calculating the module Anick resolution in degree 4...
B(0,0)=1
B(0,1)=2
B(1,1)=2
B(0,2)=2
B(1,2)=2
0   1   2   3   4
+------------------
0 | 1   2   -
1 | 2   2
2 | 2
end of Calculations.
+t^5*(4*z^2+11*z^3+6*z^4+z^5)
% 5
r*x^3*X-r*x^4,
-r*y^3*x+r*x*Y^3,
r*y^3*X,
r*y^3*Y-r*y^4,

Calculating the module Anick resolution in degree 5...
B(0,0)=1
B(0,1)=2
B(1,1)=2
B(0,2)=2
B(1,2)=2
B(0,3)=2
B(1,3)=2
0   1   2   3   4   5
+----------------------
0 | 1   2   -   -
1 | 2   2   -
2 | 2   2
3 | 2
end of Calculations.

nil
5 lisp>

```
One can see all the automatically generated additional relations in degree 2 of Gröbner basis.

## 2.12  Bergman under Reduce

### 2.12.1  Working in the Reduce syntax

Starting bergman you are in the algebraic mode of Reduce. It means that you have the possibility to work in the Reduce syntax, and someone could prefer it because the notation is more closed to usual algebraic mode and to most of Algol-like programming languages.
There are several important syntactical differences.
For example, you can use infix operators in algebraic formulae and write a+b instead of (plus a b) in Lisp. You can do also the assignment in prefix form: the usual command
 x:=2+3;
produces the expected assignment 5 to a variable x.
One can check the result, for example, by
if x = 5 then print (x);
There are also while and repeat statements, for and for each loops and so on. See for details Anthony C.Hearn "Reduce User's Manual".
Note that all the commands are finished by a semicolon.
The important difference is that empty parenthesis are necessary in every call of a procedure without arguments, for example, to call the procedure simple it is necessary to write simple(); . If you write simple; (without parenthesis) the following message will occurred:
***** `simple' is an unbound ID
Being in the Reduce mode one has the full access to Lisp (more exactly to RLisp, because it is still the Reduce syntax) symbolic calculations switching the mode to the symbolic one by means of symbolic; or lisp;
To return to the algebraic mode it is necessary to type algebraic;
To check the current mode one types eval mode;. The current mode will be printed as algebraic or symbolic.
One can prefix the relevant expression by the appropriate mode. For example, if the current mode is algebraic, then the commands
```symbolic car '(a);
x+y;

```
will cause the first expression to be evaluated and printed in symbolic mode and the second in algebraic mode.
Now let us check a bergman session in the Reduce mode.
```> bergman
4: simple();
Now input in-variables and ideal generators
in algebraic form, thus:
vars v1, ..., vn;
r1, ..., rm;
where v1, ..., vn are the variables,
and r1, ..., rm the generators.
algebraic form input> vars x,y; x^2-y^2,x*y;
% 2
x*y,
x^2-y^2,

% 3
y^3,

Done
- All is OK (I hope). Now you may (e. g.):
- kill bergman with (QUIT); or
- interrupt bergman with ^Z; or
- clear the memory with (CLEARIDEAL),
and run a new (SIMPLE).

nil

5: quit;

Quitting

```
Note that quit; is with the semicolon too.
To switch from the Reduce mode to the standard Lisp mode the user can use the familiar command end;

### 2.12.2  Parametric coefficients

One of the advantages in using Reduce mode is the possibility to use arbitrary coefficients that Reduce allows. For example, it is possible to use parametric coefficients and to work with the generic rings. The idea is that you allow coefficients and operations be taken from Reduce, but the main procedures for Gröbner bases calculations are the same.
Let us check one example. Suppose that we need a Gröbner basis for a generic ring
 A= < x,y | x2−a*y2,x*y > ,
where a is a parameter (it means that we work over the field of fractions K(a)).
The session begins with switching to symbolic mode. The input variables are settled up and the coefficients handling procedure setreducesfcoeffs() is called. After that we switch to algebraic mode and start Gröbner basis calculations.
```
> bergman

7:  symbolic;

nil

8:  setreducesfcoeffs();

nil

9: setiovars '(x,y);

nil

10:  algebraic;

11: lpol:= {x^2-a*y^2,x*y};

2    2
lpol := { - a*y  + x ,x*y}

12:  bmgroebner lpol;

2    2    3
{x*y, - a*y  + x ,a*y }

13:  bye;

```
Note, that all mode-changers (including setiovars) must be run symbolically. Then bmgroebner may be called from algebraic mode, with a list of polynomials as (single) argument. Each polynomial should be homogeneous, and only contain input variables listed in setiovars. If all is well, bmgroebner returns a reduced Gröbner basis (as a list of polynomials).
Right now, only integer or standard form coefficients are permitted.
Important! Only commutative version is available: the noncommutative version can be called, but right now produces wrong results.

## 2.13  Debugging in bergman

Unfortunately bergman hasn't too many special debugging tools and in the most cases only the usual Lisp error handling system can be applied. Let us take an example containing several input errors and follow the debugging steps trying to correct them. Suppose, you are preparing an input file and the list of polynomials is huge. Of course, it is quite easy to make some errors in its typing. Here we have a fragment of such a list, it is extracted from a real problem offered by prof. M. Popa.
```(setmaxdeg 10)
(algforminput)
vars v,d,r,s,t,e,q,m,b,c,h,g,l,k,p,n,a;
g*q^3+h*p^3-k^2*l^2,
2*a^2*g^2-2*a^2*l^2+2*a^2*m^2-b^2*g^2+2*c^3*h-4*g*n^3+
2*g*p^3+2*k^4,
a^2*b^2*h+3*a^2*g*k^2-2*a^2*q^3-b^2*g*k^2-2*c^3*m^2+
4*e^4*h+2*g*s^4-4*k^2*n^3, 3*a^2*b^2*h+12*a^2*g*k^2-
12*a^2*q^3+2*c^3*g^2-6*c^3*l^2-6*c^3*m^2-2*d^3*g^2+
12*e^4*h+12*g*s^4-12*k^2*n^3-6*k^2*p^3,
-a^4*g^2+4*a^2*k^4+8*a^2*t^4-2*b^4*g^2-4*b^2*g*n^3+
8*c^3*g*k^2-16*e^4*g^2+8*e^4*m^2+8*g*v^5-4*n^6+8*p^6,
a^2*g^3-a^2*g*l^2-a^2*g*m^2-2*a^2*h*k^2+2*a^2*r^3+
2*g^2*p^3+4*k^2*q^3-2*l^2*n^3-2*m^2*p^3,
-2*a^2*g^3+4*a^2*g*l^2+8*a^2*h*k^2-4*a^2*r^3-b^2*g^3+
2*c^3*g*h-10*g^2*p^3-6*g*k^2-8*k^2*q^3+4*l^2*n^3+
8*l^2*p^3+4*m^2*p^3,
-a^2*g*l^2-3*a^2*h*k^2-b^2*h*k^2-2*c^3*g*h+4*g^2*p^3+
4*g*k^4+4*g*t^4-2*h*s^4+2*l^2*n^3-8*l^2*p^3,
-6*a^2*h*k^2-3*b^2*g*l^2-4*c^3*g*h-2*d^3*g*h+6*g^2*p^3+
12*g*k^4+12*g*t^4-6*k^2*q^3-18*l^2*p^3+6*m^2*p^3,
3*a^2*g^3-4*a^2*g*l^2-6*a^2*h*k^2+4*a^2*r^3-2*g^2*n^3+
8*g^2*p^3+4*g*k^4+8*k^2*q^3-4*l^2*n^3-4*l^2*p^3-4*m^2*p^3,
18*a^12-81*a^10*b^2+189*a^8*b^4+108*a^8*e^4-279*a^6*b^6-
108*a^6*b^2*e^4-30*a^6*c^6+96*a^6*c^3*d^3-12*a^6*d^6-
144*a^6*f^6+243*a^4*b^8-324*a^4*b^4*e^4+162*a^4*b^2*c^6-
432*a^4*b^2*c^3*d^3+108*a^4*b^2*d^6+324*a^4*b^2*f^6-
108*a^2*b^10+540*a^2*b^6*e^4-198*a^2*b^4*c^6+
504*a^2*b^4*c^3*d*3-144*a^2*b^4*d^6-432*a^2*b^4*f^6-
648*a^2*b^2*e^8+288*a^2*c^6*e^4-144*a^2*c^3*d^3*e^4-
144*a^2*d^6*e^4-432*a^2*e^4*f^6+18*b^12-216*b^8*e^4+
66*b^6*c^6-168*b^6*c^3*d^3+48*b^6*d^6+144*b^6*f^6+
648*b^4*e^8-720*b^2*c^6*e^4+1008*b^2*c^3*d^3*e^4-
288*b^2*d^6*e^4-864*b^2*e^4*f^6+128*c^12-416*c^9*d^3+
480*c^6*d^6+264*c^6*f^6-224*c^3*d^9-672*c^3*d^3*f^6+
32*d^12+192*d^6*f^6-2592*e^12+288*f^12,
-a^2*b^2*g^2+2*a^2*k^4+4*c^3*g*k^2-4*e^4*g^2+4*p^6;

```
The first attempt to compute it (working in the Reduce version) failed:
```
1 lisp> (simple "tests/inv.err")
10
*****
dskin of `tests/inv.err' aborted after 1 form(s).
***** Segmentation Violation
2 lisp>

```
The yielded error message "Segmentation Violation" is not very informative. One can obtain more information using the possibility of tracing, offered by Lisp. According to the PSL documentation, "the error handler typically calls an interactive break loop, which permits the user to examine the context of the error and optionally make some corrections and continue the computation, or to abort the computation."
If we are in bergman compiled under PSL the break loop is coming immediately:
```1 lisp> (simple "tests/inv.err")
10
*****
***** Continuable error.
Break loop
2 lisp break (1) >

```
Being in the Reduce version one should switch on the corresponding flag before the computation:
```
1 lisp> (on break)
nil
2 lisp> (simple "tests/inv.err")
10
*****
Break loop
3 lisp break (1) >

```
Now we have similar situations in both cases and can start the debugging. First of all, we can use the tracing to locate the erroneous place. So, let us try some of the break loop commands, for example, T:
```1 lisp> (simple "tests/inv.err")
10
*****
***** Continuable error.
Break loop
2 lisp break (1) > T
Backtrace from top of stack:
backtrace top!-loop!-eval!-and!-print continuableerror
a!L!G!I!Nr!E!A!De!R!Rm!E!S!S!A!G!E
p!O!La!L!Gr!E!A!D algforminput dskin!-step
unprotected!-dskin!-stream
dskin!-stream dskin simple top!-loop!-eval!-and!-print
standardlisp
nil

```
Looking on this information one can presume, that something is wrong with the input, because the continuableerror was created by the procedure a!L!G!I!Nr!E!A!De!R!... followed by p!O!La!L!Gr!E!A!D. Continuing investigation we can use the "V" option:
```3 lisp break (1) > V

```
Omitting a part of output, which seems to be not very understandable, let us pay attention to the following strings:
```a!L!G!I!Nr!E!A!De!R!Rm!E!S!S!A!G!E -> continuableerror:
p!O!La!L!Gr!E!A!D -> a!L!G!I!Nr!E!A!De!R!Rm!E!S!S!A!G!E:
18
f

```
"18" is the number of input variables. What is "f"? One of the input variables, why it appears here? It seems, that it is treated in a special manner, but why? Checking the list of input variables one can see that it is absent in the vars list! So, we found one error and should correct it inserting the variable "f".
Starting the computation again we obtain, unfortunately, a new continuable error and try to repeat the debugging process. Among the information obtained after the applying of "V" option one should pick out the following strings:
```a!L!G!I!Nr!E!A!De!R!Rm!E!S!S!A!G!E -> continuableerror:
p!O!La!L!Gr!E!A!D -> a!L!G!I!Nr!E!A!De!R!Rm!E!S!S!A!G!E:
18
3
nil
504

```
504 is one of the coefficients of the 11th polynomial, this polynomial is the largest one and we may expect some troubles here. Searching the input file we find the monomial with such a coefficient:
```504*a^2*b^4*c^3*d*3

```
An error occurred because the sign ''^'' on the end of monomial was mistyped (being replaced by "*"). After its correction we try again:
```1 lisp> (simple "tests/inv.err")
10
t
% 4
q^3*g-l^2*k^2+h*p^3,
2*c^3*h-b^2*g^2+2*k^4+2*g*p^3-4*g*n^3+2*m^2*a^2+
2*g^2*a^2-2*l^2*a^2,
% 5
4*g*k^4+4*g^2*p^3-4*l^2*p^3-2*g^2*n^3+2*m^2*g*a^2+
g^3*a^2-2*g*l^2*a^2-2*h*k^2*a^2,
-4*g*k^2-4*g^2*p^3+4*l^2*p^3+2*g^2*n^3-2*m^2*g*a^2-
g^3*a^2+2*g*l^2*a^2+2*h*k^2*a^2,
4*q^3*k^2-2*m^2*p^3+2*g^2*p^3-2*l^2*n^3+2*r^3*a^2-
m^2*g*a^2+g^3*a^2-g*l^2*a^2-2*h*k^2*a^2,
24*t^4*g-4*d^3*h*g-4*b^2*g^3-6*b^2*g*l^2+6*m^2*p^3-
6*g^2*p^3-4*l^2*p^3-6*l^2*n^3+6*r^3*a^2-11*m^2*g*a^2+
3*g^3*a^2+5*g*l^2*a^2-2*h*k^2*a^2,
6*s^4*g-2*d^3*g^2+2*c^3*g^2-6*c^3*l^2+3*b^2*g*k^2-
6*k^2*p^3-6*q^3*a^2+3*g*k^2*a^2,
-12*s^4*h+4*d^3*h*g-2*b^2*g^3+6*b^2*g*l^2-6*b^2*h*k^2-
6*m^2*p^3+6*g^2*p^3-8*l^2*p^3-6*g^2*n^3+18*l^2*n^3-
6*r^3*a^2+5*m^2*g*a^2-5*g*l^2*a^2+2*h*k^2*a^2,
-6*m^2*c^3+12*e^4*h+2*d^3*g^2-2*c^3*g^2+6*c^3*l^2-
6*b^2*g*k^2+6*k^2*p^3-12*k^2*n^3+3*b^2*h*a^2+6*g*k^2*a^2,

***** Segmentation Violation
Break loop
2 lisp break (1) >

```
The computation started, but something was wrong. The input data were successfully read, the computation started ... What happened? One of the most frequent error is non-homogeneity. To check it we can use, as previously, the tracing, but there is a special bergman function testindata to help us in debugging. This function tests the homogeneity of input polynomials. It should be called immediately after the input (before starting the computation), for example:
```
1 lisp> (dskin "tests/inv.err")
10
t
nil
2 lisp> (testindata)
((4 4) (5 5 nil 5 5 5 5) (6 6) (12))

```
The function prints the list of monomial's degrees, the value nil shows that one of the polynomials in degree 5 is not homogeneous. In our example it is the monomial
```-6*g*k^2

```
in the 7th polynomial (we skip the question how to locate it using Lisp). After its correction we can restart the computations and are lucky to see the result, which is too large and not so interesting to be included here.
One more bergman function to help you on debugging is printsetup which displays some useful information:
```
3 lisp> (printsetup)
(resolutiontype none)
(variablesetup
(ringtype commutative)
(commutativeorder tdegrevlex)
(noncommutativeorder tdegleftlex)
(variablenumber 18)
(invariables (v d r s t e q m f b c h g l k p n a))
(outvariables (v d r s t e q m f b c h g l k p n a))
(variableweights nil)(homogenisationvariable nil))
(strategy default
(mindeg nil)
(maxdeg 10)
(interruption ordinary)(customised nil))
(coefficientdomain nil (oddprimesmoduli ordinary))
(inputformat casesensalgin)
(outputformat algexptsprint
(immediateassocringpbdisplay nil)
(overwrite nil) (customised nil))
(checkfailuredisplay t)
(activetracebreaks nil))
(variousflags
(degreeprintoutput off)
(dynamiclogtables off)
(immediatecrit off)
(immediatefullreduction on)
(immediaterecdefine off)
(nobignum off)
(standardanickmodes on)
(pbseries off)
(reductivity on) (savedegree off)
(saverecvalues on)))

```
One can check the values of the polynomial ring set up:
• ring type (in our example: (ringtype commutative)),
• ordering (in our example: (commutativeorder tdegrevlex)),
• characteristic (in our example: (coefficientdomain nil (oddprimesmoduli ordinary)) corresponds to characteristic 0),
• number, list of input and output variables, their weights (variableweights nil) in our example means the naturally graded list).
Besides that we can see the set up of:
• strategy,
• resolution type,
• maximal and minimal degrees,
• input and output formats (in our example: case sensitive algebraic form input and algebraic form output where the exponents values are printed explicitly),
• various flags, their meaning is explained in the manual.
Sometimes one can be in troubles because of the settings incompatibility. It is necessary to take in account the previous settings in order to avoid strange situations, when the well known procedure yields some unexpected results. It might happens, for example, if you have computed the Gröbner basis in non-commutaive mode, forgot about this setting and start a new simple expecting the commutative calculations and seeing a strange result.
It will surprise you even more in the case, when you computed the Anick resolution (which assigns to the resolution type the value "anick"), call clearideal, setup commify and start simple obtaining in an unexpected way an output with Betti numbers! (which, by the way, are very far from the real ones. To keep off this situation one should call the function (setresolutiontype nil).)
If you are interested only to know if your mode settings are correct you can apply the function checksetup:
```3 lisp> (checksetup (getsetup))
t

```
The displayed value t informs that the settings are OK. Note there we use also the function getsetup which gives the current setup.
But you are in troubles if you obtain the following message:
```9 lisp> (checksetup (getsetup))

*** Clashes between different mode settings were found.

```
The pair of functions findmodeclashes and findmodeclashes1 are destined to give more detailed information. Let us apply one of them, namely findmodeclashes1:
```10 lisp> (findmodeclashes1 (getsetup))
((((resolutiontype) eq (car item) (quote anick))
(variousflags pbseries) eq (car item) (quote off))
(((resolutiontype) eq (car item) (quote anick))
(variablesetup ringtype) not (eq (car item)
(quote noncommutative))))

```
Perhaps, at the very beginning this information looks slightly confusedly, however one can understand that the problems are caused by the resolutiontype.

## 2.14  Customising bergman

Bergman is an open system, and you may change any or all parts of it in order to get something more suitable for your purposes. However, in order to do this in a very general setting, you may probably have to learn much more than you want about the precise interactions of different parts of the program. Changing one procedure is only safe if you are sure exactly what it calls, and for what purposes it may be called. There is some documentation of this, in the manual and in the file protocol.txt in the doc area; but it is not complete, and does not cover most of the `internal' procedures.
However, there are a number of ways to influence the behavior of bergman at well defined critical points, by writing your own procedures, and by activating a corresponding customisation minor mode. These possibilities exist in such points where we suspect that the user may be most interested in intervening. If you think we missed some important points, please let us know!
There are two different modes where the user can do some customisations: display and strategy.
Recall that to change the display mode to the custom one we call the procedure setcustdisplay and the procedure setcuststrategy is used to the changing the strategy mode (see section 2.10 to find an example). Of course, the corresponding boolean get-procedures getcustdisplay, getcuststrategy inform bergman that you are in the customising mode.
Here is a brief overview over the specific procedures intended for customisation. We write the function name and a very brief description of what it does. In most cases, the intervention demands both that the submode is activated, and that the procedure is actually defined; sometimes, else some kind of default action is taken.
Many of the procedures perform actions related to "the current degree". This may be accessed as the value of (getcurrentdegree).
DISPLAY Mode customisation
(CUSTDISPLAYINIT)
: EXPR
Called (if it is defined) at initialising Gröbner basis calculations. Then, supplants the default action, which initialises two counters (NOOFSPOLCALC and NOOFNILREDUCTIONS) to NIL. Intended for similar purposes.
(DEGREEENDDISPLAY)
: EXPR
Called (if it is defined) whenever calculations of the new Gröbner basis elements of a certain degree are finished. Will supplant both other degree-wise output, and optional Poincaré-Betti series calculation. An example of a DEGREEENDDISPLAY template is given in the section 2.10.
(CUSTCLEARCDEGDISPLAY)
: EXPR
Called (if it is defined), if the `Hilbert series limitation' is active, and for a particular degree returns the verdict that both the input and the obstruction monomials of this degree shall be discarded, without any calculations.
It is called before this abandoning, but does not supplant any action. May be used e.g. for printing information on how many input polynomials or obstruction monomials are to be discarded at this degree.
(CUSTCLEARCDEGOBSTRDISPLAY)
: EXPR
Called (if it is defined), if the `Hilbert series limitation' is active, and for a particular degree returns the verdict that only input polynomials should be processed (and thus all current degree obstruction monomials should be discarded). Apart from this, as the preceding procedure.
(HSERIESMINCRITDISPLAY)
: EXPR
Called (if it is defined), if the `Hilbert series limitation' is active, and causes the rest of the input polynomials and obstruction monomials of a certain degree to be discarded. since the prescribed number of new Gröbner basis elements (now) have been found. Apart from this, as the preceding procedures.
(NODISPLAY)
: EXPR
Empty procedure to do nothing. It is a pre-defined alternative for some of the procedures above.
STRATEGY Mode customisation
(CUSTNEWCDEGFIX binno)
: EXPR
If it is defined, it is called and supplants the ordinary action of the procedure FixNcDeg (defined in two variants in the file strategy.sl). The result of the procedure decides whether or not to continue calculations, when a new current degree was found.
Returning NIL signifies ßtop"; all other return values signify "continue".
The input "binno" is one of the integers 1, 2, and 3, which should be considered as binary strings of length 2 (i.e., as 01, 10, and 11, respectively). The left bit (right bit) is 1 if and only if there are input polynomials (obstruction monomials, respectively) of the proposed new current degree.
The proposed new current degree may be accessed as the value of (GETCURRENTDEGREE) (or of the variable cDeg).
(CUSTNEWINPUTGBEFIND)
: EXPR
If it is defined, calls and supplants other action, whenever ordinarily the next input polynomial would be reduced, and the resulting polynomial in normal form, if non-zero, would be returned as a new Gröbner basis element. The value of the call to CUSTNEWINPUTGBEFIND ought to be either NIL (signifying "this was a reduction to zero"), or a new Gröbner basis element, in Reductand form.
The supplanted action of the procedure FindInputNGbe (defined in monom.sl) would have included removing an investigated polynomial from the list of current input polynomials (cInPols).
(CUSTCRITPAIRTONEWGBE)
: EXPR
If it is defined, calls and supplants other action, whenever ordinarily an S-polynomial would have been formed from the next critical pair, then would be reduced, and the resulting polynomial in normal form, if non-zero, would be returned as a new Gröbner basis element. The value of the call to CUSTCRITPAIRTONEWGBE ought to be either NIL (signifying "this was a reduction to zero") or a new Gröbner basis element, in Reductand form.
The supplanted action of the procedure FindCritPairNGbe (defined in monom.sl) would have included removing an investigated critical pair from the list of currently investigated critical pairs (SP2r).
(CUSTENDDEGREECRITPAIRFIND)
: EXPR
If it is defined, calls and supplants other action, whenever ordinarily new critical pairs would have been calculated and saved, since all new Gröbner elements of the current degree just were found. If you plan to employ this, you are recommended to view the definition of the procedure whose action it supplants, DEnSPairs (defined in monom.sl).
Note, that the return value is without interest; only the side effects of this procedure matters.

## 2.15  Computations in bergman under shell

The aim of this section is to describe an additional feature in bergman - an interface shell that simplifies the usage of the system. We start from a brief description of the problems arising in bergman's interface. Then we show how the shell solves those problems. At last we describe in more details how to use the shell and comment its additional possibilities and future development.

### 2.15.1  Problems of interface to bergman

Interfaces for computer algebra systems were investigated and discussed, e.g., in [15]. See also [10,p. 150-160].
Most modern computer algebra systems have their own programming language. E.g., CoCoA has both simple commands, like expression evaluation, assignment, printing, and structured commands, like conditional operators, for- and while-loops, function definitions, etc. More advanced (from the interface point of view) systems like Mathematica permits to develop mathematical software looking like the Mathematica itself with windows, buttons, and hyperlinks. This level is called front-end programming.
Some systems like Maple or Maple-based Scientific Workplace have so-called document style interface. In this kind of interface, user prepares a document that includes formulas, calculation results, and graphics. The result can be typeset. LaTeX is usually used as intermediate language in such systems. Entering of formulae in such systems can be made using palettes of symbols and formula patterns.
Bergman mainly uses a not very transparent Lisp syntax, and Lisp console for input and output.
Looking on the previous examples one can conclude that bergman rather friendly suggests what actions should be executed.
But despite of the detailed suggestions leading us step-by-step during the input and computing process, we should take care about too many things: the correct number of module variables, the order in which variables are written, the respect of the syntactical rules, especially inserting of the commata and semicolons in the requested places. Any mistake in the input probably will demand to start input from the very beginning.
Looking on those examples one can conclude also that this type of interface seems to most users not being as friendly as we could expect from a developed computer algebra system. Some stress may be taken off by choosing the Reduce version and its language RLisp, which is more closed to the syntax adopted by many of the computer algebra systems.
Another problem is presented by Lisp interpreter error messages.
Bergman hasn't very developed debugging tools and often only the usual Lisp error handling system can be applied. Assume you skipped an apostrophe or forgot that input relations are supposed to be homogeneous. If you mistyped your input and err in one of the relations, you can see something like:
```dskin of `tests/test1.txt' aborted after 1 form(s).
***** Segmentation Violation

```
This is not as informative as one could desire.
The last problem we note here is that non-commutative Gröbner basis may be infinite. Therefore, we are to stop calculations, analyze intermediate results, and, possibly, restart calculations.
Moreover, bergman uses only one window for input and output and in the case if one needs to return and to see the input he should scroll back through the output lines (which might be rather voluminous) searching the string beginning with "vars...".
Summing up the analysed aspects of bergman's interface we can ascertain the following: the original interface based on Lisp creates some inconveniences, namely
• the functional programming style with its forest of strictly balanced parentheses is rather far from the usual (mathematical) language and can create difficulties for non-experienced user;
• bergman doesn't perform the checking of the input information correctness, in particular, the compatibility of the different parameters values, the homogeneity of the input relations (in the proper case) etc. The last one could be checked only by applying a special function.
• in many cases the error messages are yielded by Lisp interpreter being not understandable for a user who is not skilled in Lisp programming;
• the usage of a single window for interface, where the different zones, destined to different actions, are mixed, causes some troubles in finding of the necessary information.

### 2.15.2  Shell overview

The solution offering a comfortable environment and avoiding the problems mentioned above is the developing of a new kind of interface, which permits to operate with bergman in a manner closed to the usual mathematical surroundings. Moreover, it will serve also as a prospectus for bergman giving the possibility to see on the graphical panel the most important facilities without the reading a manual or applying the corresponding help function.
The communication between user and bergman can be implemented in different ways. One of them we have considered in the previous sections is based on programming in Lisp: choosing parameters and flags, and applying the corresponding setup procedures. It is a good way for a user experienced in programming and desiring to get maximum possible efficiency of bergman.
We take also into account different users that need more or less routine calculations in the repeating environment performed as easy as possible, preferable without any programming at all. A friendly interface may be for such users one of main reasons to prefer bergman to any other system.
In the very beginning it is impossible to guess what the user wants exactly. That is why he needs to describe his preferences and this is the only part of a boring work for him, when he should be patient. But this should be done only once and later the system will do exactly he wants without any essential troubles for the user. According to his preferences, a personalized profile will be created. It establishes the preferable setup immediately after starting bergman. It is possible to have a number of profiles for each user, depending on the class of problems he is interested to solve. Moreover, it is possible to make some changes in a profile, permanent or valid during the current session.
The user can skip some questions: then a standard bergman default setup values will be used. Recall, for example, that bergman calculates by default only the commutative Gröbner basis in characteristics zero.
It is presumed that user is familiar with bergman manual, but in fact one can skip its preliminary reading and use instead the on-line help directly from the interface in order to obtain some explanations.
Before starting the detailed interface description let us return to one of the previous example (see section 2.11.5) showing how to compute Betti numbers for module using a graphical interface called below shell. To perform the computation it is necessary to select "Betti numbers" from the calculation menu and "Right module" from the object menu (all other specifications will be done automatically), to click the button "Variables and Relations" and to input in the corresponding place the maximal degree of computations, the ideal and module variables and relations (each in its own window). Then the user selects "Run | Generate and Run" from the main menu. The result will be displayed in the separate window. The calculations can be repeated editing only that data, which are to be changed.
We describe below the work with bergman shell on its current stage of development. The shell simplifies the access to existing bergman functions, tests data before the calculation, saves data in profiles (configuration files), and permits repeated calculations with the same or modified data.

### 2.15.3  Shell description

The shell consists of the main menu at its top, then the toolbar, and then three panels (top-left, bottom-left, and right ones). The main menu consists of items that are used to organize calculations, and the top-left panel contains drop-down menus and other elements that specifies mathematical parameters of the solved problem. The bottom-left and right panels display information, or are used to enter some data (e.g., variables and relations are input from the right panel). Borders of panels can be moved by mouse, and any panel can be collapsed or expanded by clicking the corresponding label (little black triangle on the border).
1. File;
2. Profiles;
3. Sessions;
4. View properties;
5. Preview LISP;
6. Run;
7. Process results;
8. Tools;
9. Options;
10. Windows;
11. Help.
The less obvious items are Profiles and Sessions. A session is a set of parameters that fully defines the problem to be solved. Session is implemented as a directory where all data are saved, bergman input files are generated, and bergman output files are produced. Sessions serve to return to previous bergman calculations, modify them, and experiment with them.
Informally, sessions give to a mathematician the possibility to use the previous experience of bergman's users (own or others) and to save the current setup for the future calculations.
With sessions, it is possible:
• select a session and load its data to panels, i.e., switch to the saved problem;
• create a new session (by selecting < new session > from the session drop-down list);
• save data in the selected session;
• save data in a different session (save as...);
• delete a session.
One can see also the session directory, comment, and statistics of its usage.
Figure 2.1: bergman shell: sessions panel
When the user wants to create a new session, he/she will be asked which profile should be used as the base to create this session. A profile is a partial set of data common for several sessions. It corresponds to the group of mathematical problems the user investigates during different sessions. E.g., after the installation the profiles directory contains a profile called "commutative" that fixes a single parameter, the commutativity.
All new sessions are created using the current default profile. Inversely, when a new profile is created, it is based on the parameters of the current session. To save a session as a profile, the user selects parameters that are to be fixed, and drops other parameters.
The calculations menu on the top-left panel sets the problem to be solved: what does the user want to calculate? Two main tasks are Gröbner basis and Anick resolution. For Gröbner basis, it is possible to use coefficients of Hilbert series that was calculated before or found from another considerations. This information permits to shorten calculations. The corresponding input fields exist on the panel. We can calculate Hilbert series or Betti numbers (the latter includes Anick resolution). These tasks are more general. One particular task is Hochschild homology.
The listed five problems are solved for homogeneous relations, i.e., for graded orderings. The jumping rabbit is used for non-homogeneous relations.
We included in the panel the graduation menu for future; now the user can not manipulate it.
Figure 2.2: bergman shell: calculations menu, variables and relations input areas
The top-left panel contains also the menu for resulting Gröbner basis form: algebraic, Lisp, Macaulay, visual, or LaTeX.
Domain and field coefficients can be selected in the coefficients field menu. The following cases are included:
• integers of different length (1/2/4 bytes and arbitrary integers, characteristic 0); the coefficient field is the field Q of rational numbers, and the coefficient domain is the ring Z of integers;
• characteristic 2 (modulo 2); the coefficient field and the coefficient domain both are Z/ (2) = GF(2);
• characteristic p (modulo p, p is an odd prime); the coefficient field and the coefficient domain both are Z/ (p) = GF(p).
Figure 2.3: bergman shell: coefficients menu
A possibility to use Reduce forms as coefficients is not implemented in the current shell version.
The object menu permits to select object type (ring, one or two modules). There are also menu for commutativity and ordering of monomials. Possible orderings depend on commutativity. In the commutative mode the user may switch between  deglex  and  revdeglex. In the non-commutative mode only deglex  and several eliminating orderings are possible.
Figure 2.4: bergman shell: object menu
When the user clicks the variables and relations button, input areas for variables, their weights, and relations appear in the right panel. Input from this panel depends on selected calculation and object type. E.g., if you will calculate Betti numbers for two modules, you need to differ left module, ring, and right module variables. In that case, input areas for left module variables and right module variables are unblocked. Analogously ring and module relations go to the different input zones. The information from this panel is used (in graded case) for checking the homogeneity of relations before run.
The strategy menu is used to choose the strategy of the calculations: Buchberger's original algorithm or Staggered one.
As the user selects the "Run | Generate and Run" item from the main menu, the shell generates Lisp program and input data, checks the homogeneity (except for "the jumping rabbit"). The calculation starts asynchronously, in a separate thread and in the separate window. In the meantime the user can work with the same or different profile but he/she can not save profile or run it until the current run is finished and its log window is closed.
There is a possibility using the "Preview LISP" item from the main menu to see the input files, generated by bergman. The option is used mostly in debug mode and is intended mainly for bergman developers.

# Chapter 3 Bergman for the advanced user

## 3.1  References

This chapter contains more formal, but also more complete descriptions of the user available procedures and variables, and choices of modes of operation. You may use it for references. Since some of the alternatives were not mentioned before, it may also be valuable to glance through e.g. the entire section 3.1, although part of the information may not seem to be very clear at a first reading.

### 3.1.1  Mode handling

There are a large number of choices of modes of operations in bergman. In this section, we list all of them, with brief (but sometimes not quite complete) descriptions of their impacts. All such chosen modes together form the setup.
The large number of possibilities may be good for flexibility, but it also may be a bit hard to survey and handle in an easy manner. For this reason, bergman provides three principal ways to handle mode settings: By the shell interface, by individual mode changing procedures, and by handling entire setups directly as objects in their own right.
If you use the shell interface, the most convenient way to inspect and change mode settings is by employing the corresponding interface item. The shell choices are essentially organised in the same tree-like manner as the mode setup as described in this section, and you should have no trouble to find the manual description corresponding to a shell choice, or vice versa.
(There is also an experimental and incomplete `dialogue' interface, which is intended to have similar properties.)
Each individual major or minor mode change may be achieved by calling a mode changing procedure. In fact, often there are alternative such procedures; e.g., one for a specific mode change effect, and one more general, where the arguments provided by the user will decide the effect. In the latter case, giving the argument "help" often yields a list of all legal alternatives, followed by a prompt for inputting one of them.
Finally, the whole mode setup may be represented by a lisp object, which may be inspected, saved, changed, checked for consistency, and put into simultaneous effect. The latter is achieved by means of the procedure putsetup, which also may be given just a partial setup as argument, effecting a single or a group of single mode changes. We call this approach `the compact mode handler'.
It is worth to repeat, that there is no essential difference between these three ways to change modes. Internally, the shell employs the compact mode handler, which in its turn employs the individual mode setting procedures. The user thus may learn one way to handle this, and safely forget all about the others.
Internally, a mode change normally consists of two parts: a change of some procedure definitions, and a reassignment of the value of some variable or switch. The procedure definition changes employs the fact that Lisp automatically has an element of indirection in its function calls, even from within compiled procedures (excepting macros or inlined procedures). Thus, in time sensitive parts of the programme, a change of procedure definitions offers flexibility at no run time cost. Instead, the price is paid by the programmer, who has to define a multitude of variants for the same procedure, and keep track of which one of the function definition is to be `copied' (which mostly essentially means `linked', but sometimes even may mean `recompiled') in a specific situation.
Finally, one word of warning to the practioned Lisp or Reduce programmer: You may view the source code, and help yourself to customised deep level changes, as you wish. When you do, you'll soon find out which switches (identifiers starting with an asterisk) are accompanied to which mode choices. If you wish, you may access them for direct information on the current mode setting (always running the risk that these internal names are changed in the next bergman version, of course). However, do not use them for achieving mode changes! For a Reduce user or programmer, it is natural to change switches by means of the procedures ON and OFF. However, if you do, you miss the rather essential other part of the mode change: the procedure redefinitions.
One example: In the present version, the switch associated with the choice of commutativity or noncommutativity has a name like *#NonCommutativity#, or in the `inverted case' implementations, *#nONcOMMUTATIVITY#. You may turn on this directly, in order to fool a few procedures that actually look at the value of the switch to behave as if you were in noncommutative mode. However, the actual mode change performed by the procedure noncommify essentially consists of more than twenty procedure redefinitions, which you miss by just changing the switch value. Thus, if you run your own variant, with this switch changed instead of the mode changed in a proper manner, you are apt to run into rather queer and unpredictable difficulties - and we will not be inclined to help you to entangle this mess.

### 3.1.2  Sustained operating mode alternatives

In the right column, appropriate procedures or flags are named. The procedures are described (in alphabetical orders) after the overview. Default settings (if any) are underlined.

Types of objects:

 Modes Procedures RING SETRINGOBJECT() MODULE SETMODULEOBJECT() TWOMODULES SETTWOMODULESOBJECT()

The polynomial ring set-up:

 Modes Procedures Commutative DEG-REVLEX COMMIFY(),REVLEXIFY() Commutative DEG-LEX COMMIFY(),DEGLEXIFY() Non-commutative DEG-LEX NONCOMMIFY() Non-commutative ELIMLEFTLEX ELIMORDER() Non-commutative INVELIMLEFTLEX INVELIMORDER() Non-commutative HOMOGELIMLEFTLEX HOMOGELIMORDER()

Weights handling:
 Procedures SETWEIGHTS(list) GETWEIGHTS() CLEARWEIGHTS()
Coefficient arithmetic:

 Modes Procedures Characteristic 0, SETMODULUS(0) arbitrary integers Characteristic 0, SETMODULUS(0) only inums Characteristic 2 SETMODULUS(2) Odd characteristic SETMODULUS(pr) ordinary inum Odd characteristic SETMODULUS(pr) ordinary bignum SETODDPRIMESMODULI(ordinary) Odd characteristic SETMODULUS(pr) logarithm table SETODDPRIMESMODULI(modlogarithmic) inum arithmetic Arbitrary Reduce SETREDUCES Standard Forms FCOEFFS() (only available under REDUCE)

Fundamental strategy:
 Strategy Procedures Ordinary (Buchberger) SETIMMEDIATEFULLREDUCTION(t) with immediate full autoreduction Ordinary (Buchberger) SETIMMEDIATEFULLREDUCTION(nil) without immediate full autoreduction Dehomogenization RABBIT (start step finish) and jumping

Ordinary or Hilbert series limit interruption strategy:

 Mode Procedures Ordinary ORDNGBESTRATEGY() Hilbert series MINHILBLIMITSTRATEGY()

Output mode:

 Mode ALGOUTMODE set Lisp form LISP Ordinary algebraic form ALG Macaulay-like form MACAULAY

Minor mode modifications:
 Mode Procedures Densely DENSECONTENTS() Sparsely performed SPARSECONTENTS() factoring out of contents
In general, modes should not be changed while a set up is in progress. Therefore, mode changing procedure calls are only recommended early in a bergman run, or (almost) immediately after a call to the procedure clearideal. If the latter does not work well, restart bergman and try the former.
The saws mode is achieved by calling saws alternative procedures (such as stagsimple instead of simple).

### 3.1.3  The mode designator tree structure

This section is intended to be an overview of the names used for modes and submodes in the compact mode handler. In principal, each line will contain a mode designator, and may contain a list of valid values of this. However, if the latter list is rather long, it may continue over several lines.
Submodes are denoted by indentation; and top level modes are separated by empty lines. Thus
``` XXXXX <...>
YYYYY
ZZZZZ <...>

WWWWW <...>

```
would denote two major modes XXXXX and WWWWW (two nodes immediately under the mode tree root), while YYYYY and ZZZZZ would be minor modes (nodes immediately under XXXXX). In addition, 'legal values' for XXXXX, ZZZZZ, and WWWWW would be enumerated.
``` OBJECTTYPE  <RING | MODULE | TWOMODULES | FACTORALGEBRA>
AUTOADDRELATIONSTATE  <NIL NIL | T NIL | NIL T>
LOWTERMSHANDLING    <QUICK | SAFE>

```
``` RESOLUTIONTYPE  <NONE | ANICK>

ANICK
TENSPOL-PRINTMODE     <SEMIDISTRIBUTED | DISTRIBUTED>
TENSTERM-PRINTMODE    <NIL | <a string>>
<NIL | <a string>> <NIL | <a string>>
EDGE-STRING           <<a string>>
EDGE-STRING-PRINTING  <NIL | T>
BETTI                 <T | NIL>
BETTI-FOREACHDEGREE   <T | NIL>

```
``` VARIABLESETUP
RINGTYPE            <COMMUTATIVE | NONCOMMUTATIVE>
COMMUTATIVEORDER    <TDEGLEX | PURELEX | TDEGREVLEX>
NONCOMMUTATIVEORDER <TDEGLEFTLEX | ELIMLEFTLEX
| HOMOGELIMLEFTLEX | INVELIMLEFTLEX>
VARIABLENUMBER      <NIL | <a non-negative integer>>
INVARIABLES         <<a list of different identifiers>>
OUTVARIABLES        <<a list of different identifiers>>
VARIABLEWEIGHTS
HOMOGENISATIONVARIABLE <<an identifier>>

```
``` STRATEGY               <ORDINARY | RABBIT | SAWS>
AUTOREDUCTION       <IMMEDIATE | POSTPONED>
CONTENTS            <DENSE | SPARSE>
MINDEG              <NIL | <a non-negative integer>>
MAXDEG              <NIL | <a non-negative integer>>
INTERRUPTION        <ORDINARY | MINHILBLIMITS>
HSERIESLIMITATIONS
CUSTOMISED    <NIL | T>

```
``` COEFFICIENTDOMAIN      <NIL | SF | 0 | <a prime>>
ODDPRIMESMODULI      <MODLOGARITHMIC | ORDINARY>

```
``` INPUTFORMAT   <CASESENSALGIN | NOCASESENSALGIN>

OUTPUTFORMAT  <LISP | ALG | MACAULAY>
<NOEXPTSPRINT | EXPTSPRINT>
IMMEDIATEASSOCRINGPBDISPLAY   <NIL | T>
CUSTOMISED              <NIL | T>

```
``` DEBUGSTATUS
CHECKFAILUREDISPLAY <NIL | T>
ACTIVETRACEBREAKS <NIL | T>

```
``` VARIOUSFLAGS
DEGREEPRINTOUTPUT
DYNAMICLOGTABLES
IMMEDIATECRIT
IMMEDIATERECDEFINE
NOBIGNUM
OBSOLETENAMESINFORM
OLDPRINTMODES1
OLDSERIESMODES1
STANDARDANICKMODES
PBSERIES
REDUCTIVITY
SAVEDEGREE
SAVERECVALUES

```
This tree contains branches and leaves. Some of the branches bbb have two procedures with the names
(GETbbb),
which returns for the given branch bbb the current value of its chosen leaf or subtree.
(SETbbb chosen),
which sets the chosen value for the given branch bbb.
For the majority of the leaves lll from this tree there exists a procedure:
(SETlll),
which makes a leaf lll to be chosen as a current value.
For example, there exists a branch procedure setobjecttype which takes one parameter from the list of the admisible object type values (e.g. RING). There are also leaf procedures for each leaf (e.g. setringobject).
We do not itemize all of the leaf and branch procedures, because they are logically quite similar and limit our description by the most important ones.

### 3.1.4  The mode handling procedures

In the description below, an EXPR evals its arguments, while a FEXPR doesn't. Recall, that in Lisp if you want to give an identifier name directly as an argument to an EXPR, you must quote it (QUOTE name) or 'name; otherwise the Lisp will try to feed the value of the identifier to the EXPR. On the other hand, you should NOT quote the arguments to a FEXPR. (Numbers and strings need never be quoted, since they are evaluated to themselves.)
General mode handling
(SETSETUP mode-tree-structure)
: EXPR
Sets the whole mode setup tree. Normally it is used to recover the peviously saved tree. For changing a particular mode is more efficient to use specialised setting procedures described below.
(GETSETUP)
: EXPR
Gets the current mode setup tree.
(PRINTSETUP)
: EXPR
Prints the current mode tree.
Setup checking
The function CHECKSETUP performs the following checks:
• It checks that the input is an association list (i.e., a list, whose members are dotted pairs).
• It checks that the items are of different types, and of types which we consider as (major) modes.
• If there is an OBJECTTYPE item, CHECKSETUP checks that its CDR is a list.
• If there is a RESOLUTIONTYPE item, CHECKSETUP checks that it is a list of length two, and that its second member <s> is a valid resolution type name.
• If there is a VARIABLESETUP item, CHECKSETUP checks that its CDR is an alist. If so, then this alist is searched for some subitems.
• If there is a VARIABLENUMBER subitem, CHECKSETUP should check that the subitem is a list of length two, and that its second member <s> is either NIL or a non-negative integer. If <s> is a number, and INVARIABLES and/or OUTVARIABLES are explicitly given, but of length(s) different from <s>, then a non-fatal warning is issued (but this part of the setup is accepted).
• If there is a STRATEGY item, CHECKSETUP checks that its CDR is an alist. If so, then this alist is searched for some subitems:
If there is an INTERRUPTION subitem, CHECKSETUP checks that it is a list of length two, and that its second member <s> is a valid interruption minor strategy mode. If <s>= MINHILBLIMITS, CHECKSETUP checks that the VARIABLESETUP item (if any) does not contain a VARIABLEWEIGHTS subitem, with a non-NIL argument.
• If there is a COEFFICIENTDOMAIN item, CHECKSETUP checks that its CDR is a non-empty list, whose CAR is NIL or a non-negative integer, and whose CDR is an alist.
• If there is an INPUTFORMAT item, CHECKSETUP checks that its CDR is a list.
• If there is an OUTPUTFORMAT item, CHECKSETUP checks that its CDR is a list.
• If there is an ANICK item, CHECKSETUP notes it but ignores it.
• If there is a VARIOUSFLAGS item, CHECKSETUP checks that its CDR is an alist.
See an example of its using in the section 2.13.
The function displays the value t which informs that the settings are OK or yields the following message:
```*** Clashes between different mode settings were found.

```
There are two functions findmodeclashes and findmodeclashes1 to analyse the setup and to give detailed information about clashes.
(FINDMODECLASHES mst1 mst2)
: EXPR
Gives the information about the found incompatibility between two setups mst1 mst2.
(FINDMODECLASHES1 mst)
: EXPR
Gives the information about the found incompatibility into the setup mst.
Objects handling
(SETOBJECTTYPE objecttype)
: EXPR
Sets the current object type (e.g., RING, MODULE, TWOMODULES).
(GETOBJECTTYPE)
: EXPR
Gets the current object type (e.g.,RING, MODULE, TWOMODULES).
(SETRINGOBJECT)
: EXPR
Sets the current object type to RING.
(SETMODULEOBJECT)
: EXPR
Sets the current object type to MODULE.
(SETTWOMODULESOBJECT)
: EXPR
Sets the current object type to TWOMODULES.
(MODULEOBJECT)
: EXPR
A boolean procedure cheking if the current type is MODULE.
Resolution setup
(SETANICKRESOLUTION)
: EXPR
Sets the resolutiontype to ANICK which forced bergman to compute Anick resolution together with Gröbner basis.
(SETNORESOLUTION)
: EXPR
Sets the resolutiontype to NIL.
(SETRESOLUTIONTYPE rt)
: EXPR
Sets the resolutiontype to NIL or to ANICK depending of the value of rt.
(GETRESOLUTIONTYPE)
: EXPR
Gets the current resolutiontype.
Input-output variables setup
The lists are set up in two variants: as plain lists, and as alists. In the second case, the dotted pairs consist of variable name identifiers and of integers, giving the position in the list. Presently, input and output lists are EQUAL; this is not to be relied on for the future.
(SETINVARS list)
: EXPR
Sets the list of input variables. Sets also the variable number, if it is not already set.
(SETOUTVARS list)
: EXPR
Sets the list of output variables.
(SETIOVARS list)
: EXPR
Sets both lists of the input and output variables.
(CLEARVARS)
: EXPR
Clears the variables lists.
(GETINVARS)
: EXPR
Gets the list of input variables.
(GETOUTVARS)
: EXPR
Gets the list of output variables.
(GETINVARNO)
: EXPR
Gets the number of input variables.
Switching commutativity
(SETRINGTYPE ringtype)
: FEXPR
Sets the current ring type to the parameter ringtype value (COMMUTATIVE or NONCOMMUTATIVE).
(GETRINGTYPE)
: EXPR
Gets the current ring type (COMMUTATIVE or NONCOMMUTATIVE).
(COMMIFY)
: EXPR
Turns on commutative mode.
(NONCOMMIFY)
: EXPR
Turns on non-commutative mode. (It is automatically performed by ncpbhgroebner, rabbit and a number of other procedures dealing with the Anick resolution. The procedures inter alia changes some flags, which should NOT be changed directly.)
Orderings
(DEGLEXIFY)
: EXPR
Should only be used in the commutative mode. Sets the monoid order to the TOTAL DEGREE - LEXICOGRAPHICAL one. (In LISP form input, the variable in first position is used first in order comparisons. In ALG form input, the first "vars" listed variable is used first.)
(DEGREVLEXIFY)
: EXPR
Should only be used in the commutative mode. Sets the monoid order to the TOTAL DEGREE - REVERSE LEXICOGRAPHICAL one. (In LISP form input, the variable in last position is first used in order comparisons. In ALG form input, the last "vars" listed variable is first used.)
(DEGLEFTLEXIFY)
: EXPR
Should only be used in the non-commutative mode. Sets the monoid order to the TOTAL DEGREE - LEFT LEXICOGRAPHICAL one.
(PURELEXIFY)
: EXPR
ONLY interesting in conjunction with homogenisation. Not to be used in ordinary manner.
(ELIMORDER)
: EXPR
Sets an elimination ordering. Should only be used in the non-commutative mode.
(INVELIMORDER)
: EXPR
Sets the INVELIMLEFTLEX elimination ordering.
(HOMOGELIMORDER)
: EXPR
Sets the HOMOGELIMLEFTLEX ordering. Is authomatically used with the rabbit strategy only and hardly can be used in other cases.
(NOELIM)
: EXPR
Takes away the HOMOGELIMLEFTLEX ordering. By default recovers DEGLEFTLEXIFY ordering.
(GETORDER)
: EXPR
Gets the current ordering.
(SETCOMMORDER order)
: FEXPR
Sets the commutative ordering indicated as a argument.
(GETCOMMORDER)
: EXPR
Gets the current commutative ordering.
(SETNONCOMMORDER order)
: FEXPR
Sets the non-commutative ordering indicated as a argument.
(GETNONCOMMORDER)
: EXPR
Gets the current non-commutative ordering.
Coefficients domain handling
(SETMODULUS pr)
: EXPR
pr should be a prime, 0, or NIL. (NIL is interpreted as 0.) The new coefficient field is set to the prime field of characteristic pr. For pr > 2, some recompilations (which may take several seconds) are performed. If furthermore the mode MODLOGARITHMIC was choosen, a file with a certain kind of "modular logarithm tables" is sought for. The (full) name of the file is supposed to be a preamble followed by the number pr (in decimal notation). The creation of the table file also requires some time, depending on the size of pr.
(RESTORECHAR0)
: EXPR
Has the same effects as
(SETMODULUS 0).
(SETMODULUS2)
: EXPR
Has the same effects as
(SETMODULUS 2).
(SETREDUCESFCOEFFS)
: EXPR
(Only in bergman-under-reduce.) The coefficients are set to be Reduce 'standard forms'. (Any previous SETMODULUS call is cancelled). In this mode, coefficient arithmetics is performed by ordinary Reduce standard form procedures, whence any Reduce flags or standard forms simplifications are in force. In this way very general domains may be set up.
(GETMODULUS)
: EXPR
Returns the characteristic of the coefficient field, or SF if the coefficients are standard forms. (Characteristic 0 may be represented by NIL.)
(SETODDPRIMESMODULI)
: FEXPR
Sets one of two possible values: ordinary to use ordinary bignum arithmetic or modlogarithmic to work with the logarithmic tables.
(GETODDPRIMESMODULI)
: EXPR
Strategy modes
(GETSTRATEGY)
: EXPR
Returns the present strategy of the calculations (DEFAULT, RABBIT or SAWS).
(SETDEFAULTSTRATEGY)
: EXPR
Sets DEFAULT strategy as a current strategy of the calculations.
(SETRABBITSTRATEGY)
: EXPR
Sets RABBIT strategy as a current strategy of the calculations.
(SETSAWSSTRATEGY)
: EXPR
Sets SAWS strategy as a current strategy of the calculations.
Interrupting strategy modes
(SETINTERRUPTSTRATEGY strategy name)
: FEXPR
(Interruption) strategy name should be one of ORDINARY, NONE, NIL, or MINHILBLIMITS. The first three cause the ordinary (default) strategy, with no interruptions. The argument MINHILBLIMITS turns on the minimal limit interruption strategy submode (see details in 3.4). In this, at any new current degree cDeg the value v of (GETHSERIESMINIMUM cDeg) is investigated. If v is NIL, no interruption is made at this degree. If v is SKIPCDEG, the degree is skipped but calculations continue for higher degrees. If v is T, all further Gröbner basis calculations are skipped. If v is an integer, then this is interpreted as the minimal possible Hilbert function value of cDeg for the factor-ring. Calculations at this degree are interrupted as soon as the found preliminary Gröbner basis elements are enough to make the corresponding monomial ring not to have a higher Hilbert series value of cDeg. (The check is performed by FixNcDeg, whence by defining CUSTNEWCDEGFIX and turning on CUSTSTRATEGY you could modify the action; see this flag.)
(GETINTERRUPTSTRATEGY)
: EXPR
Returns the current interruption strategy (ORDINARY or MINHILBLIMITS).
(CHECKINTERRUPTSTRATEGY)
: EXPR
Inspects the current interruption strategy.
(ORDNGBESTRATEGY)
: EXPR
Has the same effects as (SETINTERRUPTSTRATEGY ORDINARY).
(MINHILBLIMITSTRATEGY)
: EXPR
Has the same effects as (SETINTERRUPTSTRATEGY MINHILBLIMITS), respectively.
Contents strategy modes
(DENSECONTENTS)
: EXPR
(SPARSECONTENTS)
: EXPR
In the (integer of characteristic 0) and the (Reduce standard form) coefficient major modes, the 'coefficient domain' does not coincide with the 'base field'. Then the polynomials under reduction and the preliminary Gröbner basis elements will in general not be monic. As a consequence, we now and then get non-unit contents of polynomials under reduction (i.e., non-trivial greatest common divisors of all coefficients). There are different possible strategies for how often such contents should be calculated and factored out. The bergman default is 'densely', i.e., more or less at each reduction steps. A 'sparsely' variant is also available, where we postpone this until we have normal forms. DENSECONTENTS/SPARSECONTENTS switches between them.
(COMMENT: In the Möller et al. Reduce GROEBNER package, an intermediate strategy of some interest has been tested: Factor out the content once for each (say) tenth step.)
Degree limitations
(SETMAXDEG Degree)
: EXPR
Sets the limit for maximum degree in the calculating of the Gröbner basis. It is normally used in the non-commutative calculations to avoid an infinite process. Note that if the Gröbner basis have no elements greater than maximum degree the other calculations (as Betti numbers) will be stopped before the maximum degeree will be achieved.
(GETMAXDEG)
: EXPR
Gets the value of the current maximum degree.
(SETMINDEG Degree)
: EXPR
Sets the lower limit for the degree of the calculations. Is used in a very special situations.
(GETMINDEG)
: EXPR
Gets the value of the current minimum degree.

## 3.2  Monomials and polynomials in bergman

To be able to work inside the bergman it is important to understand the internal structure of the polynomial and monomial representation. It is far from being trivial, and efficiency, that bergman has, is partly achieved by using the internal form of the polynomial representation. But this has its opposite side: because the internal form is unprintable some intermediate forms are necessary too. The aim of this section is to explain in more details why the polynomials are implemented in different forms.
We start from the monomials forms. Monomials are always considered to be monic, (i.e. coefficient free) monomials. The simplest form of a monomial is Lisp form. Lisp form monomials are lists of exponents/of variable indices in the commutative/non-commutative case. So, the monomial x2y3z will be represented as (2, 3, 1) in the commutative case and (1, 1, 2, 2, 2, 3, 0) in the non-commutative (if x,y,z were variables, given in this order in the input). The last zero in the non-commutative form is the end-mark. The monomial xzx will be represented as (2, 0, 1) in the commutative case and as (1, 3, 1, 0) in the non-commutative. The Lisp form is printable and is used mainly for input-output procedures.
Internally monomials can be presented in two forms: as pure monomial (abbreviated as pmon or puremon in the procedure descriptions) and as augmonomial. Äug" stands for äugmented", referring to the extra information connected with the monomial. The typical abbreviation in the procedure descriptions is AugMon.
Those two forms are closed to each other. It is possible to get the augmonomial form from the pure one, and vice versa; but information about the monomial pointer or associated monomial flags or properties are directly accessible only from the augmonomials.
Pure monomials are used when no extra information about them (except the corresponding Lisp form) is necessary. For example we use it in all variants of MONLESSP procedures for the monomial orderings, when we need to compare two monomials as if they are written in Lisp form. This is important to know when the user wants to create his own ordering. Technically it is implemented as a pair, consisting of a pointer and a Lisp form monomial.
Augmented monomials have more complicated intern structure, which we will not discuss here (see section 4.2.3 if you want to know more). The augmonomials are used in the terms (summands) of the polynomials.
One useful point of view is that pure monomial is a "preliminary" form of the given monomial, which we started to work with but did not decided yet to "intern" it in some kind of database of monomials, consisting of augmented monomials.
The most important feature of an ïnterned" augmonomial is that it has guaranteed unique representation in this database in the sense that if the (mathematically) identical monomial is ïnterned" to an augmonomial twice, then the two results test as equal by Mon!=, and have the same monomial pointer, flags, and properties.
The advantage of this database is that new information (e.g. normal form of the monomial) is sent simultaneously to all the polynomials, containing this monomial. Another advantage is that for every monomial in this database we check only once if it is normal. Next time when we need to consider the same monomial we already know if it is normal or not, because the information about this is one of the property of this augmonomial.
To see the difference between two forms let us consider two monomials f,g and a (non-commutative) polynomial P. All terms of P are augmonomials. The product fPg (such a product can appear during the constructing of a new Gröbner basis element) is also a polynomial and its monomials will be interned too. But f and g, which were used only temporary have no justification to be interned, so it is reasonable to use them as a pure monomials only.
Another example of non-interned monomial are quotients, which are quite ephemeral. They result from certain monomial divisions and may be used in certain subsequent multiplications. They are not assumed to be comparable with anything else in any way. (In fact, in the non-commutative case they might consist of pairs of monomials, one left and one right 'factor'.)
The important procedures working with the monomials are:
(MONINTERN LispFormMonomial)
: EXPR
Changes its argument from a Lisp form monomial to a monomial in the appropriate internal representation (augmonomial), and returns the changed monomial.
Warning: The output monomial may not be a printable LISP object.
(MONLISPOUT puremon)
: EXPR
Produces a Lisp form of its argument (pure monomial), without changing the argument.
(MONPRINT mon)
: EXPR
Prints its argument (an internally represented monomial) in algebraic form if the appropriate settings are done, else in Lisp form.
(MONLESSP Mon1:puremon, Mon2:puremon)
: EXPR
Evaluates the current admissible order. Note, that the result may be undefined (possibly erroneous) if Mon1 and Mon2 represent the same monomial or are of different total-degrees. Else, non-NIL iff Mon1 is less than Mon2 with respect to the active order.
(MONTIMES2 Mon1:puremon, Mon2:puremon)
: EXPR
The output represents the product Mon1 * Mon2 (in the given order).
(MONFACTORP Mon1:puremon, Mon2:puremon)
: EXPR
Decides whether or not the first puremon (pure monomial) is a factor of the second one. In the latter case, the output is non-nil, and may contain enough information for deciding in what manner the first one is a factor in the second. (In the non-commutative, there indeed may be several such ways.)
(TOTALDEGREE Mon:puremon)
: EXPR
Calculates the degree of the monomial (using the weights, if they are given).
(GETMONAUGPROP mon prop)
: EXPR
Returns T if prop is found, NIL else.
(REMMONPROP augmon prop)
: EXPR
Returns T if prop is found (whence removed), NIL else. Only the first occurrence of the prop property is removed from the monomial property list of augmon.
There are a lot of low level procedures working with the monomials, normally not available to the user directly, including all type of converters. The reader can find more details about monomials in the section 4.2.3.
Now let us discuss the polynomials. Here we have a variety of choices. Mostly it depends on the different choices for the coefficients. Formally a polynomial is nothing else than a list of monomials with the coefficients. The trouble is that for the efficiency reasons we do not want to have complicated coefficients, such as fractions. On the other hand one want them sometimes rather in multiplicative than in additive form.
Let us start from the fractions. Recall that there are two fundamental mathematical concepts for the polynomials, the coefficient field and the coefficient domain. We always assume that the polynomial base ring is a (commutative) field. The coefficient domain may consist of the entire field, or of a proper subring such that the coefficient field is its field of fractions. A good example is the set of integers Z as a domain for the rational numbers Q.
Recall also that two polynomials are associated if one of them is obtained from another by the multiplication with some non-zero constant.
Most polynomials encountered in Gröbner reductions are defined "up to association" and thus may be represented as "domain polynomials", polynomials all whose coefficients belong to the coefficient domain. For example we take a polynomial f(x)=2x2−3xy+5y2 as a polynomial, representing a monic polynomial g(x)=x2−[3/2]xy+[5/2]y2. It does not matter from the Gröbner basis point of view - they have the same leading monomial, but the first one is much more easy to work with.
Therefore it is sufficient to use coefficient domain elements to check if the given monomial is normal. We need, of course, the field elements when we want to get a normal form of the given element, but we can get it "up to association" too, using coefficient domain elements only. This is sufficient for the most important question: is a given element equal to zero in the factor-ring? That is why in bergman we use mainly "domain polynomials".
But sometimes general polynomials (where the coefficients are any field elements) must be considered e.g. when we need to print this normal form or in some resolution calculations. But even in this case internally it is much more convenient to have the polynomial, represented as "domain polynomial" and corresponding factor from the field, "correcting" this polynomial. So g(x) above will be represented as a pair ([1/2],f(x)), because g(x)=[(f(x))/2].
More formally, a general polynomial may always be factorised into a product of a domain polynomial and one general field element. The internal representation of the polynomial corresponds to this, being a "quotient polynomial" (qpol) with one pure polynomial part and one "quotient" part. The quotient is of the ratio coefficient type.
But even domain polynomials have different forms in bergman.
Internally, domain polynomials are represented in two ways, as reductand polynomials (redands) or as reductor polynomials (redors). The difference is not as the difference between "and" and "or", but rather as the difference between "operand" and "operator" or may be better to say as a difference between "summand" and "multiplicator". Redands have redand coefficients and redors have redor coefficients. What is the difference? Redands are what we expect from the coefficient representation, but redors have form, more convenient for the multiplication.
Let us consider first an example. Suppose that our main field is F5 and we consider a representation of the polynomial x2+3xy+2y2.
In the redand form it will be represented as a list
 (P (1 〈x2 〉) (3 〈xy 〉) (2 〈y2 〉)),
where P stands for a pointer which we do not discuss now, 〈x2 〉 stands for representation of the pure monomial x2 as it was discussed above. But just now we are interested in the coefficients. 1,3,2 are exactly what we expect. What we do not expect from the very beginning is that in the redor form the same polynomial will be written as
 (P (0 〈x2 〉) (3 〈xy 〉) (1 〈y2 〉)).
What does it mean? Recall that 2 is a primitive element in F5, so
 20=1, 21=2,22=4, 23=3
and all non-zero elements in F5 can be represented by the corresponding logarithms. So, we can represent our elements in two different ways according to the table:
 0
 1
 2
 3
 4
 Normal representation
 NIL
 1
 2
 3
 4
 Logarithmic representation
 NIL
 0
 1
 3
 2
and it is quite clear now that redor polynomials use logarithmic representation in this case.
More exactly redors coefficients are written in the form that is more convenient for the multiplication in the corresponding domain. In reality it differs now from the redand coefficients only in the case when we work in odd prime characteristics with the logarithmic tables. So practically the user can skip to think about the inner representation of redors and redands, but it is useful to say a pair of words in what role they are used.
Redands may be reduced by means of redors. So, the Gröbner basis elements are redors. (Mathematically, the result of a reduction step need not be a domain polynomial; however, there are always associated domain polynomials to the result.) In general, the redands are more ephemeral. (In a good memory handling, the redors might be stored in blocks which not so often were garbage collected. In the present implementation, they are not.) The coefficients may be represented in quite different manners. They should be non-zero; any procedure which logically could yield a zero polynomial should yield NIL instead of this, and NIL should not be used as valid input to any procedures expecting redand or redor arguments.
Zero polynomial is always represented as NIL. A (redand or redor) term should always be non-zero. Different terms in the same redand or redor should never contain the same monomial.
A polynomial also can be pure or augmented. A pure (reductand or reductor) polynomial consists of terms, which consists of (reductand or reductor) coefficients, and (augmented) monomials.
An augmented (reductand or reductor) polynomial consists of a pure polynomial and a polynomial `priority'. An 'augmented' quotient polynomial consists of a pure polynomial and a quotient, it is the same as a quotient polynomial. The quotient is of the ratio coefficient type (with reductand coefficients for the numerator and the denominator parts).
The important procedures working with the polynomials and their redor/redand coefficients are:
(ALGFORMINPUT)
: EXPR
Scans the succeeding input for variable lists and/or polynomial input on ALG form;
(LISPFORMINPUT)
: EXPR
Scans the succeeding input for variable lists and/or polynomial input on Lisp form;
(NORMALFORM ratpol)
: EXPR
Changes its argument to the ratpol representation of the normal form of its input (with respect to GBasis). Returns NIL if the normal form is zero, its changed argument else.
(POLALGOUT InternalFormPolynomial)
: EXPR
Prints its argument (an internally represented polynomial), in algebraic form if the appropriate settings are done, else in Lisp form.
(POLINTERN LispFormPolynomial)
: EXPR
Changes its argument from a Lisp form polynomial to a polynomial in the appropriate internal representation, and returns the changed polynomial if it is non-zero; else it returns NIL.
Warning: The output polynomial may not be a printable lisp object.
(QPOLMONMULT ratpol puremon)
: EXPR
Returns a ratpol representation of the product of ratpol and puremon (in this order), without changing its arguments.
(REDAND2LISPOUT Reductand-Polynomial)
: EXPR
Produces a Lisp form of its argument, without changing the argument.
(REDANDCF!+)
:EXPR
(REDANDCF!-)
:EXPR
(REDANDCF!-!-)
:EXPR
(REDANDCF!*)
:EXPR
(REDANDCF!/)
:EXPR
(REDANDCFREMAINDER)
:EXPR
(REDANDCFDIVISION)
:EXPR
Each of these EXPRs take one or two redandcoeffs as input, and perform the operations addition, negation ( = "unary minus"), subtraction, multiplication, truncated division, taking of remainder with respect to truncated division, and lastly performing both these operations at once returning CONS of the resulting truncated quotient and the remainder). The output is a redandcoeff (or a dotted pair of such), with NIL representing zero in the output; zero input is not permitted.
Using these procedures in most cases would be very slow compared to ordinary operations; thus they should be avoided.
(REDANDCFNEGATIVE)
: EXPR
Returns T if there is a meaningful concept of "negativity" in the coefficient domain and Cf is negative; NIL else.
(REDANDMONMULT augredand puremon)
: EXPR
Returns the augredand representation of the product of augredand and puremon (in this order), without changing its arguments.
(REDOR2LISPOUT Reductor-Polynomial)
: EXPR
Produce a Lisp form of its argument, without changing the argument.
(RATCF!- Cf)
: EXPR
Performs negation ( = unary minus).
(SHORTENRATCF Cf)
: EXPR
Changes Cf to a ßimple" representative for the same coefficient field element, and returns this changed input. (Thus destructive.) If the coefficient domain comprises an algorithm for calculating greatest common divisors, the ßimple" representative may be achieved by factoring out the GCD of the numerator and the denominator parts from both.
(INTEGERISE Line)
: EXPR
Each (non-NIL) ratcoeff in Line is replaced by a redandcoeff, representing some c times the element which the ratcoeff represents, using the same c for the whole list. Returns c.
(CFMONREDANDMULT Cf Mon Pol)
: EXPR
augredand : = Cf*Mon*Pol (non-destructively and in this order).
The following procedures are converters between different forms and printing procedures:
(LISPPOLS2INPUT)
: EXPR
(LISPPOL2REDAND)
: EXPR
(REDAND2LISPPOL)
: EXPR
(REDOR2LISPPOL)
: EXPR
(QPOL2LISPPOL)
: EXPR
(OUTPUT2LISPPOLS)
: EXPR
(REDANDALGOUT)
: EXPR
(REDANDALGIN)
: EXPR
(REDORALGOUT)
: EXPR
(REDORALGIN)
: EXPR
(QPOLALGOUT)
: EXPR
(PRINTQPOLRATFACTOR)
: EXPR
(PRINTRATCF)
: EXPR

## 3.3  Controlling the calculations process

In this section we will list the top level procedures that may be used to control the calculations process if the user plans to change some standard procedure. It is recommended to see first to the existing ones, because they may contain some nontrivial hints. But to understand them the user should be familiar with the procedures described here.
Main cycle
(GROEBNERINIT)
: EXPR
Initiates various internal global variables, et cetera, before running GROEBNERKERNEL. It should be called after selecting modes and performing input.
(The reason why this is not a part of GROEBNERKERNEL, is that for some specialised applications (like reading in a partial Gröbner basis and continuing calculations from some high degree) one might want to hand-set these variables.)
(GROEBNERKERNEL)
: EXPR
Performs the main calculations. Should (normally) be preceded by GROEBNERINIT and succeeded by GROEBNERFINISH.
(GROEBNERFINISH)
: EXPR
Concludes the calculations; closes the DEGREEOUTPREPAREd file, if any; print out the entire basis, if DEGREEOUTPREPARE was not called and printing is customised; set some variables.
(Not a part of GROEBNERKERNEL for reasons similar to those for GROEBNERINIT.)
(CLEARIDEAL)
: EXPR
This removes MOST remaining memories of former calculations, such as remaining input, calculated (partial) Gröbner basis, and remaining critical pairs. It does not change the modes, nor the set input or output variables or embedding dimension.
(CLEARRING)
: EXPR
A more powerful function than clearideal, which clears also the list of input and output variables and their weights.
(CALCTOLIMIT PositiveInteger)
: EXPR
Continues the calculations different from Gröbner basis calculations until the given degree. Is used for the calculating Betii numbers or Hilbert series when Gröbner basis maximum degree is less than desired degree.
SAWS cycle
(STAGGERINIT)
: EXPR
Used in the SAWS mode for some extra initiations (after GROEBNERINIT, STAGTYPECHECKER, and AUTOREDUCEINPUT, but before STAGGERKERNEL).
(STAGGERKERNEL)
: EXPR
The SAWS mode replacement of GROEBNERKERNEL.
(STAGGERFINISH)
: EXPR
The SAWS mode replacement of GROEBNERFINISH.
(STAGTYPECHECKER)
: EXPR
Used in the SAWS mode for some mode settings.
(AUTOREDUCEINPUT)
: EXPR
This is used in the SAWS module, in order to auto-reduce the input (after reading in but before starting the Gröbner or SAWS basis calculation). It is unnecessary with the ordinary algorithms. If you are in SAWS mode and know that your input is auto-reduced anyhow, you may omit it.
Manipulations in the current degree
(GETCURRENTDEGREE)
: EXPR
Returns the "current degree" (which is ordinarily set within the Gröbner basis routines), the total degree presently or last under Gröbner basis extension consideration. (Initially and immediately after the CLEARIDEAL, the current degree is NIL.)
(SETCURRENTDEGREE int)
: EXPR
For very special applications only, this procedure provides the user the possibility to set the internal "current degree" to int, which must be a non-negative integer or nil. (Cf. GETCURRENTDEGREE.)
WARNING: Changing the current degree in the middle of calculations, or during succeeding series calculations to higher degrees, might cause rather weird results.
(DEGREEOUTPREPARE file-name)
: FEXPR
(The argument is optional.)
Redirects output to be performed degree by degree (by DEGREEOUTPUT if printing is customised), by turning on DEGREEPRINTOUT. If given a file-name argument, and the file doesn't exist, output by DEGREEOUTPUT is directed to that file.
(ENDDEGREEOUTPUT)
: EXPR
Prints "Done", and closes the Gröbner basis output file (if any) opened with DEGREEOUTPREPARE. Is automatically called at the end of calculation of the entire Gröbner basis, if DEGREEPRINTOUT is on but there is no printing customisation.
(TDEGREECALCULATEPBSERIES PositiveInteger)
: EXPR
Only works if the associated monomial ring Poincare-Betti series has been calculated, but only to some degree less than PositiveInteger. It then causes a continued calculation up to and including PositiveInteger. (It returns NIL; use other ways of seeing the result.)
: EXPR
Informs if the automatic relations adding mode is chosen.
: EXPR
Sets the automatic relations adding mode state to the given value.
: EXPR
Sets the automatic relations adding mode.
: EXPR
Cancels the automatic relations adding mode.
: EXPR
New set of polynomials in algebraic form is added to those already saved in InPols.
: EXPR
New set of polynomials is added to those already saved in InPols.
: EXPR
New set of polynomials in LISP form is added to those already saved in InPols.
: EXPR
Adds special relations to the listll.
: EXPR
Adds special relations to the list ll.
Input and output
mode-name bop+ bop- ip+ ip- ip* ip^ eop bol eol): FEXPR
If mode-name is not a recognised algebraic output mode name (to which you can set ALGOUTMODE), mode-name is added to the list of such names. The seven first of the remaining arguments are used in printing polynomials in this mode; the two last are at present only used in some specialised series output printing. The mnemonics are:
bop (eop) = beginning (end) of polynomial,
ip = within a polynomial,
bol (eol) = beginning (end) of list.
When a polynomial is output in mode mode-name, first bop+ or bop- (depending on the sign of the first coefficient) is printed; then the absolute value of the first coefficient, followed by ip*, if this absolute value is not 1; et cetera. The polynomial is ended by eop. (In alg mode, this has the bad effect of letting a comma follow also the last polynomial.)
(EXPTSPRINTMODE)
: EXPR
Chooses print mode with the collecting of the common factors to exponents.
(NOEXPTSPRINTMODE)
: EXPR
Chooses print mode when each factor is printing separately.
(BIGOUTPUT)
: EXPR
Causes the printing of the calculated Gröbner Basis, in LISP form if algoutmode has not been set to alg, macaulay, or a user defined algebraic output mode. (See also addalgoutmode.)
(DEGREEENDDISPLAY)
: EXPR (User defined option.)
Since control over output seems to be a very much wished possibility, the user is given the option of defining his/her own degree-wise output procedure. This procedure is performed after the calculation of one degree, if we are in the customised displaying mode. It then replaces other output; but you may call (e.g. DEGREEOUTPUT within it, see 2.14 for details.)
(DEGREEPBSERIESDISPLAY)
: EXPR
Prints the last degree item on DEGREEPBSERIES in an algebraic format, using the TDEGVARIABLE and HDEGVARIABLE values as names for the total degree and the homological degree variables, respectively.
(DEGREEOUTPUT)
: EXPR
Performs output of the newly calculated Gröbner basis elements (of the current degree). If DEGREEOUTPREPARE has been given a file name argument, output is directed to that file.
Is automatically called at the end of calculations for each degree, if DEGREEPRINTOUT is on but the printing process is not customised.
(NCPBHDED)
: EXPR
The DEGREEENDDISPLAY alternative definition used by
NCPBHGROEBNER.
(NCPBHDD)
: EXPR
Acts analogously as the previous one in the case when Gröbner basis is not printed.
Working with variables lists
(ALGOUTLIST listnvars)
: EXPR
Prepares variables to the algebraic form output.
(GETVARNO)
: EXPR
Gives the number of variables in the input (embedding dimension).
(SETVARNO (inum))
: EXPR
Sets the embedding dimension. Dangerous, but useful when Lisp form input was done and we need series calculations (e.g. in a free algebra, when there was no relations in the input).
(CLEARVARNO)
: EXPR
(INITVARNO u)
: EXPR Two (dangerous!) procedures to change embedding dimension interactively.
Specific Anick procedures
(PREPARETOANICK)
: EXPR
Switches several flags to the values necessary for Anick resolution computation.
(ANICKRES)
: FEXPR
Similarly with the previous one switches flags and checks the correctness of the input file in the case when input is performed by meaning of a file.
(PRINTBETTINUMBER btnumber)
: EXPR
Prints Betti number btnumber as follows:
B(homological degree, total degree) = value
(PRINTBETTI)
: EXPR
Prints all the calculated Betti numbers, applying the procedure printbettinumber to all elements of the anBETTINUMS list.
(PRINTCURRENTBETTI)
: EXPR
Prints Betti numbers for the last calculated Gröbner basis degree (applying the procedure PRINTBETTINUMBER to all elements of the anCURRENTBETTINUMS list)
(MACBETTIPRINT)
: EXPR
Prints Betti numbers in Macaulay form. Returns boolean value T.
(SETTENSPOLPRTSTRINGS strings)
: EXPR
The list strings should consist of 3 strings which are used to print tensor product. First string is printed at the beginning, second - as a tensor multiplication sign and the third - as the ending of thensor monomial. The list of 3 strings of old settings is returned.
(GETTENSPOLPRTSTRINGS)
: EXPR
Returns a list of 3 strings which are used when tensor monomials are printed as beginning, middle and ending strings.
(SETEDGESTRING strng)
: EXPR
The string strng is taken for printing as edges when chain vertexes are printed. The old value of it is returned.
(GETEDGESTRING)
: EXPR
Returns the value of string which is printed between chain vertexes.
(PRINTNEWCHAINSDIFF chan)
: EXPR
Prints differentials for the new generated chains to the channel chan.
(PRINTCHAINSDIFF chan)
: EXPR
Prints differentials for the all generated chains to the channel chan.
(PRTCHNDIFF inchain)
: EXPR
Prints differential for the chain inchain in form
D (chain length, chain) = differential
(GETBETTINUMS)
: EXPR
Returns the list of Betti numbers.
(GETBTORDER btnumber)
: EXPR
Returns the order of Betti number btnumber.
(GETBTDEGREE btnumber)
: EXPR
Returns the degree of Betti number btnumber.
(GETBTVALUE btnumber)
: EXPR
Returns the value of Betti number btnumber.
(CLEARRESOLUTION)
: EXPR
Calls ResolutionDone and ResolutionClear procedures.
(ANICKDISPLAY )
: EXPR
Prints the Betti numbers into the result file.
(CALCULATEANICKRESOLUTIONTOLIMIT limdeg)
: EXPR
Continues the process of Anick resolution calculation up to the degree limdeg. It maybe called after the Gröbner basis is calculated, in case it is finite and calculations stopped at a lower degree than that to which the Anick resolution should be calculated.
(PRINTCHAIN chain)
: EXPR
Prints chain. The vertices are printed as monomials (corresponding to the present ALGOUTMODE and minor output mode settings). If PRINTEDGESTRING is ON, then between vertices it prints the value of anEDGESTRING.
(PRETTYPRINTSDP pol)
: EXPR
Prints the semi-distributed polynomial pol in a form decided by the tensor polynomials print-mode. (See gettenspolsprintmode).
(PRINTTENSORPOLSDISTRIBUTED)
: EXPR
Selects distributed form for printing semi-distributed polynomials.
(PRINTTENSORPOLSSEMIDISTRIBUTED)
: EXPR
Selects semi-distributed form for printing semi-distributed polynomials.
(GETTENSORPOLSPRINTMODE)
: EXPR
Returns the identifier which is a keyword either DISTRIBUTED or SEMIDISTRIBUTED. This identifier points out how the current semi-distributed polynomials are printed.
Some linear algebra procedures
(MPRINT mat)
: EXPR
Prints mat as a matrix to standard output and returns T, if that is not NIL. Else it prints nothing and returns NIL.
(CFLINEPRINT ln)
: EXPR
Prints the list of coefficients ln in one line and returns T ifln is non-NIL. Else it prints nothing and returns NIL.
(RANK mat)
: EXPR Returns the rank of mat calculated in present coefficient field.
(INPUTMATRIX2REDANDMATRIX mtrx)
: EXPR
Modifies the elements of mtrx so that their type is of acceptance by further procedures.
(MEMBER2NIL element list)
: EXPR
Searches list for its first occurrence of element. If found, the occurrence is (destructively) replaced by NIL, and the number of the position of element in list is returned. If element is not found in list, NIL is returned.
Local control
(BIGARITHP)
: EXPR
"Big Arithmetics Property". Should return T if big arithmetics work, NIL else.
(CALCREDUCTORPRIORITY augmon)
: EXPR
When this procedure is called, the pointer of the input monomial is set to a new Gröbner basis element. The procedure should return an integer. Such 'priority' integers later may be used in order to compare Gröbner basis elements in order to decide which one of them to employ in a reduction. A Gröbner basis element with lower 'priority number' is preferred.
By redefining this procedure, the user thus may influence the reductions of other polynomials, and the choices of what critical pairs to consider.
(It should be noted, however, that 'priority comparisons' are made only in some situations.)
(INPOLS2GBASIS)
: EXPR
If a gbasis is read in (as InPols), it is moved to GBasis. You then may make a new input, and start reducing.

## 3.4  The commutative Hilbert series procedures

This section contains information for the user about the commutative Hilbert series procedures.
There are two main uses for the Hilbert series facilities: Stand alone and within the Hilbert series interrupt strategy minor mode. In the former case, you may get the Hilbert series of the residue class ring modulo a calculated Gröbner basis or some user input monomial ideal, as a rational expression [(p(t))/((1−t)q)], or with the power series coefficient for some specified t degree(s). In the latter, you should communicate a Hilbert series limitation to the programme; it will automatically invoke the appropriate Hilbert series calculations.
In either case, you may wish to inspect resulting series in situ (especially as there are few prepared good user interface procedures for this). You then should note that the global variables HILBERTNUMERATOR and HILBERTDENOMINATOR represent a calculated

 p(t) (1−t)−q = ant−n + an−1t−(n−1) +…+ a0 (1−t)−q
by (the lisp items) ((n . an) (n−1 . an−1)…(0 . a0)) and q, respectively.
A principal use of Hilbert series calculation is with the Hilbert series interrupt strategy (which is based on ideas by Ralf Fröberg). You then should provide a Hilbert series limitation. The limitation should be a representation of a function f from the set N = {0,1,2,...} to the union of N and the set {nil, t, skipcdeg} of lisp constants. The default limitation function has the constant value nil for each input. You may change the function with the SETHSERIES procedures, and you may inspect the current limitation function or part thereof with the GETHSERIES procedures, as explained below.
When bergman is in the Hilbert series interrupt strategy minor mode and is about to start considering a new current degree d within the GROEBNERKERNEL execution, it extracts the limitation function value f(d) and proceeds as follows:
• If f(d) is nil, then GROEBNERKERNEL follows "procedures as usual" for the current degree d (with no non-ordinary constraints on the calculations).
• If f(d) is t, then GROEBNERKERNEL is exited without any further calculations. (Thus we get an effect similar to a MAXDEG setting, but probable with some unnecessary critical pair calculation performed on degree d or higher.)
• If f(d) is skipcdeg, then the current degree d is ßkipped": critical pairs and input polynomials of degree d are removed, as if they (or the corresponding S-polynomials) were found to reduce to zero. (A new test is made for the next occurring degree.)
• If f(d) is a non-negative integer, then calculation at degree d continues only until either all input polynomials and critical pairs of degree d are processed, or the associated quotient ring Hilbert series value for d, i.e., the vector space dimension of the degree d component of the factor-ring of the current polynomial ring modulo the ideal generated by the leading monomials of all (partial) Gröbner basis elements found so far, no longer exceeds f(d); the the remaining input polynomials and critical pairs of degree d (if any) are skipped (like in the skipcdeg case).
An f(d) value either may be specified explicitly, or be calculated by a default expression. The latter may be a constant (an integer or one of nil, t and skipcdeg) or is considered as the definition part of a lisp EXPR with the single argument hsdeg. An explicitly specified value takes precedence over a default one. An example of the default expression is the following:
```        (COND ((GREATERP HSDEG 10) T)
((LESSP HSDEG 3) SKIPCDEG)
(T (PLUS HSDEG 2)))

```
will make f(0) = f(1) = f(2) = SKIPCDEG, f(3) = 5,  . . . , f(10) = 12, and f(d) = T for all other legitimate d values, except for those d for which explicit values are given.

Available high level procedures
(CALCPOLRINGHSERIES varno)
: EXPR
Initialises HILBERTNUMERATOR and HILBERTDENOMINATOR values to those for the present polynomial rings. Right now, varno isn't used; instead, the numbers of variables is extracted by means of GETVARNO.
(CALCRATHILBERTSERIES)
: EXPR
Uses the calculated (full or partial) Gröbner basis in order to calculate the Hilbert series for the factor-ring modulo the ideal generated by the leading monomials of the basis elements. Errs if no (partial) Gröbner basis is stored in GBasis.
(CLEARPBSERIES)
: EXPR
Sets all series variables to nil.
(PBINIT)
: EXPR
Sets constant and linear terms for all series variables.
(GBASIS2HSERIESMONID)
: EXPR
Creates a special kind of lisp form representation of the monomial ideal generated by the leading monomials of the calculated (full or partial) Gröbner basis. The format is a (printable) list of flagged monomials (FMon's), as described in the introduction to the source file hseries.sl.
(GETHSERIESMINIMA)
: EXPR
Extracts the full information about the pre-stored Hilbert series limitation, in a printable format acceptable as input to SETHSERIESMINIMA.
(GETHSERIESMINIMUM tdeg)
: EXPR
Extracts the information about the pre-stored Hilbert series limitation for degree tdeg, as an integer or as one of the constants NIL, T, and SKIPCDEG. (tdeg must be a non-negative integer; else, rather weird errors may occur.)
(SETHSERIESMINIMA)
: FEXPR
Specifies the Hilbert series limitations, as a sequence of dotted pairs or as a list of limitation constants, in either case optionally accompanied by a DEFAULT setting. In the dotted pair variant, each dotted pair antecedent ("CAR part") should be a non-negative integer or the identifier DEFAULT; the postcedent ("CDR part") when the CAR is an integer d should be the limitation for d (i.e., a non-negative integer or one of the constants NIL, T, and SKIPCDEG), and when the CAR is DEFAULT it should be of the SETHSERIESMINIMUMDEFAULT input form. In the sequence case, the items are considered as CDR parts corresponding to CAR parts 0, 1, 2, ... (in this order); everything after DEFAULT is considered as the DEFAULT CDR part (whether or not it is on list form). In either case, the default value or procedure is changed only if a new DEFAULT is specified.
Example:
```(SETHSERIESMINIMA T SKIPCDEG NIL 6 7 8 9 DEFAULT 8)

```
and
```(SETHSERIESMINIMA (0 . T) (1 . SKIPCDEG) (2) (3 . 6)
(4 . 7) (6 . 9) (DEFAULT . 8))

```
have the same effects. (Note that in lisp, (2) and (2 . NIL) are considered as identical.)
(SETHSERIESMINIMUMDEFAULT)
: FEXPR
Specify the Hilbert series limitation default value or procedure. (Explicitly specified values for specified degrees are not changed.)
(SERIESPRINTING)
: EXPR
Calculates and prints the power series coefficients.
(TDEGREEHSERIESOUT PositiveInteger)
: EXPR
Returns the Hilbert function (i. e. Hilbert series coefficient) for PositiveInteger (provided adequate series calculation up to that degree is done previously). If necessary, induces calculations of HILBERTSERIES and INVHILBERTSERIES items.
(REVERTSERIESCALC)
: EXPR
Should be given the last total degree for which series were calculated as an argument, or possibly a higher value. If so, all effects of (possibly) having calculated the Hilbert series, associated monomial ring double Poincare-Betti series, et cetera, should be canceled; except induced calculations in lower total degrees.

## 3.5  User available flags

The following flags may be accessed by specific SET/GET procedures: CUSTDISPLAY, CUSTSTRATEGY, DEGREEPRINTOUTPUT, DYNAMICLOGTABLES, IMMEDIATECRIT, IMMEDIATEFULLREDUCTION, IMMEDIATERECDEFINE, NOBIGNUM, PBSERIES, REDUCTIVITY,
SAVEDEGREE, SAVERECVALUES.
All others are turned ON and OFF by the procedures with these names. The flag names should not be quoted. If you need to access the flag values, you should use the values of the names, preceded by *. The value NIL means OFF, and T means ON.
Examples: You turn the flag FLAG on and off by (ON FLAG) and (OFF FLAG) respectively if there is no a special switching procedure. When FLAG is ON, the value of *FLAG is T.
If not otherwise indicated, the effect of the flag being ON is described below.
The default is OFF, if not otherwise indicated. Sometimes mode-changers will affect some flags.
CUSTDISPLAY

If it is turned on (by the procedure setcustdisplay) we get several customised display actions:
• GROEBNERKERNEL exhibits output degree by degree, by means of the user customised procedure DEGREEENDDISPLAY. (This is intended for customisation. There may exist an exemplifying definition, showing how to demand some statistics at each end of degree; if so, you could read it with (GETD DEGREEENDDISPLAY).)
• If furthermore the user has defined CUSTDISPLAYINIT, then this procedure (with no argument) replaces the normal displaying initiation actions performed when executing GROEBNERINIT. (These normal actions are to set NOOFSPOLCALCS and NOOFNILREDUCTIONS to zero.)
• If the user has defined CUSTCLEARCDEGDISPLAY, then this procedure (with no argument) is called first within a CLEARCDEGREEGKINPUT call.
• If the user has defined HSERIESMINCRITDISPLAY and the MINHILBLIMIT strategy mode is active, then when this strategy leads to the abortion of the rest of the calculations at the current degree (since the last possible new Gröbner basis element is just found) HSERIESMINCRITDISPLAY (with no argument) is called.
CUSTSTRATEGY

WARNING: Don't turn this ON unless you have familiarised yourself with the internal programming of bergman! If it is turned on and if the user has defined one or several of the following procedures, calling them supplants the action of the following procedures (see also 2.14):
• CUSTNEWINPUTGBEFIND supplants the action of FindInputNGbe;
• CUSTCRITPAIRTONEWGBE supplants the action of FindCritPairNGbe;
• CUSTENDDEGREECRITPAIRFIND supplants the action of
DEnSPairs;
• CUSTNEWCDEGFIX supplants the action of FixNcDeg.
It is possible to get the 'true' action of the bergman procedure to be performed, by the 'PROG variable initiation trick'. Whenever a variable is declared as a PROG variable, it is locally bound to NIL. Thus e.g. the following bit of Standard Lisp code
```(OFF RAISE)
(DE CUSTENDDEGREECRITPAIRFIND ()
(PROG  (!*CUSTSTRATEGY)
<action 1>
(DEnSPairs)
<action 2> ))
(ON RAISE)

```
defines CUSTENDDEGREECRITPAIRFIND in such a way, that when CUSTSTRATEGY is ON a call to DEnSPairs yields the following effect: First < action 1 > is taken, then DEnSPairs is called recursively but with CUSTSTRATEGY OFF (if < action 1 > didn't turn it ON), performing its ordinary action, and last < action 2 > is taken.
DEGREEPRINTOUTPUT

Only influential when the SAWS algorithm is used. Then makes the final reduced Gröbner basis be exhibited degree by degree, with separating degree annotations, as in `ordinary' degree-wise output. (C.f. SAVEDEGREE.)
DYNAMICLOGTABLES

When MODLOGARITHMIC is chosen and (SETMODULUS prime) is executed with an odd integer as prime, and a saved logarithms table file is not found, then logarithm tables are constructed. If DYNAMICLOGTABLES is OFF, this is done in a subshell, writing a file which is read into the bergman session but also saved for future use. If it is ON, then the tables should be constructed directly (and ephemerally). (The dynamic logtables creation is not yet implemented.)
IMMEDIATECRIT

Turned ON/OFF by NONCOMMIFY/COMMIFY. Tries to eliminate critical pairs (employing various criteria) as soon as a degree is finished, instead of waiting until the degree of the pair is reached. Should NOT be turned ON in the commutative case!
IMMEDIATEFULLREDUCTION

Default: ON. Immediate full reduction of `old' Gröbner basis elements by means of newfound ones. (This is at variance with many other systems, where a preliminary Gröbner basis element will not be changed once it is entered.)
IMMEDIATERECDEFINE

Intended meaning: When calculating PBseries, define the recursive monomial-bound sub-series while these monomials anyhow are considered from the critical pair point of view. This option is not fully implemented, however, so the flag should NOT be turned ON.
MONOIDAL

Used in some experimental variant to signify that we actually work within the monoid of monomials; i.e., that all relations are pure binomial. If this work is ever included into the general bergman framework, probably it will be in the form of mode changing procedures rather than by flag-setting, though.
NOBIGNUM

Inhibit automatic loading of the bignum package. If you "know" that no bignums will be needed in your particular run (although it e. g. is in characteristic zero or the Hilbert series is calculated), you may turn it ON BEFORE initialisations or mode-changings have invoked it.
(Note that in your installation the Bignum package may already be loaded from start, in which case the flag should be on by default. This is probable, if you run bergman under Reduce.)
PBSERIES

Turned ON/OFF by SETPBSERMODE. Should NOT be ON in the commutative case. Calculate the Poincaré-Betti series of the associated monomial ring (total degree-wise) (with a method ONLY WORKING IN THE NON-COMMUTATIVE CASE)! Its effects are partially superceeded by turning CUSTDISPLAY ON - take care that your DEGREEENDDISPLAY calls e. g. TDEGREECALCULATEPBSERIES in this case. Should be ON if Hilbert series or Anick resolution are to be calculated in the non-commutative mode.

Default: ON. In the characteristic 0 case, make sure that the final reduced Gröbner basis element leading coefficients are positive. (Turning it OFF saves very little calculation, but makes the result compatible with results from older versions of bergman.)
REDUCTIVITY

Turned ON when the SAWS module is loaded. Inhibits the `cannibalising' garbage collection of lower degree monomials, thus making it possible to use the Gröbner basis for calculating normal forms. It may be turned ON for this purpose, or because the `cannibalism' may have unwanted side effects in the context.
SAVEACCIDENTALREDUCIBILITYINFO

Only active within the SAWS mode. If ON, save and re-use information on whether or not a leading monomial is divisible by another Gröbner basis leading monomial (disregarding substance).
SAVEDEGREE

Turned ON/OFF by
DEGREEOUTPREPARE/ENDDEGREEOUTPUT. Make GROEBNERKERNEL exhibit output degree by degree, by means of the inbuilt procedure DEGREEOUTPUT. In general, the final result is output. However, if the SAWS algorithm is active, it is the preliminary (staggered linear) basis which is output. In this case, the final reduced Gröbner basis is NOT calculated degree-wise, and so no speed is gained by exhibiting output degree-wise. If you anyhow wish such output (e. g., for compatibility reasons), you may turn ON DEGREEPRINTOUTPUT.
SAVERECVALUES

Default: ON. In the Poincaré-Betti series algorithm, numerous interdepending integer series are defined by linear recursion formulae. When the flag is ON, the calculated values at each degree are saved. This saves (considerable) time, but sometimes may use considerable space.

## 3.6  User available counters

In most cases they should be initialised to 0 by SETQ or Reduce assignment.
NOOFNILREDUCTIONS

Counts the total number of times the normal form procedure ("ReducePol") is called with an argument representing the zero polynomial. (Ordinarily, this happens precisely whenever a new-formed S-polynomial is zero before reduction.)
NOOFREPRIORITATIONS

In the SAWS algorithm, counts the number of times `all' the prioritation values must be changed, in order to enable new (integer!) values between two old ones.
NOOFSPOLCALCS

Counts the number of S-polynomials actually formed. Together with a counting of the final basis (except the input), this gives a good measure of the efficiency of the critical pair elimination criteria.
NOOFSTAGCONECRIT

Counts the number of applications of a SAWS algorithm elimination criterion.

# Chapter 4 Some useful appendixes

## 4.1  Bergman proceedings extendingStandard Lisp

### 4.1.1  Introduction

Bergman is written in Standard Lisp, as defined by the Standard Lisp report [18]. This contains (on purpose) a rather restricted number of procedures. It was necessary sometimes to go outside the scope of Standard Lisp. The "general Lispic" type procedures were defined and collected in the source file slext.sl.
Many of these procedures actually exist in PSL (but often under other names). For such reasons the alternative definitions to most of them was privided, copying definitions from or calling existing procedures when available, and else defining them by means of "pure" Standard Lisp.
In this section we list (hopefully) all the (general Lisp) extensions of Standard Lisp alphabetically, with short explanations of their actions; we discuss deviations from the Standard in the bergman sources; and we briefly discuss some (potential) problems in the Standard itself, and in the way it does or does not provide a good basis for e.g. Reduce implementations.
All descriptions are in Standard Lisp syntax, but they have Rlisp (i.e., symbolic mode) correspondences in Reduce. In order to have maximal benefit from them, a reader who wishes to do some deeper level bergman programming should be acquainted with Standard Lisp (or symbolic mode).

### 4.1.2  Fast variant Standard Lisp extensions

```
BMI!+ <--> PLUS2
BMI!- <--> DIFFERENCE
BMI!* <--> TIMES2
BMI!/ <--> QUOTIENT
BMI!< <--> LESSP
BMI!= <--> EQ
BMI!> <--> GREATERP
FASTGETV <--> GETV

```
The EXPRs or MACROs to the left operate as those to the right, with the following two exceptions: input need not be typechecked, and input and (for the first six ones) resulting numbers should be ÏNUMs", i.e., fairly small integers. Thus, the compiled code may use fast integer arithmetics on them. (You may note that in the sources, these macros are used on coefficients who are known to be of limited size and on degree numbers and variable indices, while the right ones are used on integer coefficients of indefinite size and e.g. on coefficients in series calculations, where BIGNUMs may appear.)

### 4.1.3  General Standard Lisp extensions

i should be a number, and lint a list (i1 i2 i3 …) of numbers. The list (i1+i i2+i i3+i…) is returned.
(APPENDLCHARTOID lch id)
: EXPR
lch should be a list of characters, id an identifier. Returns an interned identifier, whose print name consists of the characters on lch followed by the print name of id.
(APPENDNUMBERTOSTRING numb strng)
: EXPR
A new string is formed, consisting of the characters in the string strng followed by the characters (sign if negative, digits, et cetera) in the print form of the number numb.
(APPLYIFDEF0 lexprid)
: EXPR
lexprid should be a list of identifiers. Each of these (in order) is tested for a function definition, and if one is found, the function is applied on an empty list. (Thus any one of the identifiers being defined should be an EXPR with no arguments.)
(ASSIGNSTRING id string)
: EXPR
Checks if string is a string, and then assignis it as the value of id, returning the old value. Else, prints a warning message, and returns NIL. id is neither checked for being an identifier, nor for having a value.
(ATSOC any alist)
: EXPR As ASSOC, but tests if any equals the car of a dotted pair on alist with EQ instead of EQUAL.
(BMDATING)
: EXPR
If available returns a string informing on the present date and time. (If not available, the returned string informs on this fact.)
(CALLSHELL filstr lst)
: EXPR
Makes a system call with the calling command name given by the string filstr and the arguments by the items of the list lst. (These items are represented by their print forms.)
(CIRCLENGTH any)
: EXPR
Sets !*CSTRUCTURE!*. Extends length measurement from ordinary lists to arbitrary s-expressions, including circular lists. Returns the number of CDR's possible until an atom is achieved (in which case !*CSTRUCTURE!* is set to NIL), or a former CDR is repeated (in which case !*CSTRUCTURE!* is set to T). Thus, (1 2 3 4) has circlength 4; (1 2 . 3) has circlength 2; and if we have
A= (1 2 3 4 3 4 3 4 ...) (with (CDDR A) EQ to (CDDDDR A), then A has circlength 2.
: EXPR
alist should be an association list with numeric CDRs of items. Each such CDR c is replaced by (ADD1 c). (Unspecified return value.)
(CONSTANTLIST2STRING lst)
: EXPR
Returns a string consisting of the print forms of the items on the list lst, separated by spaces.
(COPY any)
: EXPR
Returns a recursively constructed copy of the S-expression any. Dotted pairs are copied to new ones, until atoms are encountered. In other words, COPY behaves as if defined by
```(DE COPY (any)
(COND  ((PAIRP any) (CONS (COPY (CAR any))
(COPY (CDR any))))
(T any)))

```
(COPYD imgid srcid)
: EXPR
Both arguments should be identifiers; the second one should be a function name. COPYD copies the function definition from srcid to imgid. (Unspecified return value.)
(DEFP id)
: MACRO
Returns non-NIL iff has a function definition.
(DELQ lst any)
: EXPR
As DELETE, but tests if any equals an item on lst with EQ instead of EQUAL.
(DEGLIST2LIST dlist)
: EXPR
Returns the items of a degree list (but not the degree numbers) in one list, ordered in the way they come in the degree list.
(DPLISTCOPY alist)
: EXPR
Returns a copy of the association list alist; but copying is done on the top list level and on thealist dotted pair items top level. (In other words, in (DPLISTCOPY '(((1 2) 3 4))), the old and new ((1 2) 3 4) parts won't be EQ, but both the (1 2) and the (3 4) parts will be.)
(DPLISTP any)
: EXPR
Returns non-NIL iff any is an association list (i.e., a list of dotted pairs).
(DSKIN filen)
: EXPR
Open the file with name filen; reads, evals, and prints successively each s-expression therein (if not redirected as some evaluation side effect) until end-of-file is reached, and closes the file. (Unspecified return value.)
(EVENP no)
: EXPR or MACRO
Returns non-NIL iff the integer no is even.
(FASTGETV vect no)
: MACRO
Returns (GETV vect no) if the input is correct, but may be faster due to the elimination of some error checks.
(FILEP filstr)
: EXPR or MACRO
Returns non-NIL if filstr is a legal file name of an existing file. (In some versions, where this is not so easily done, it may always returns non-NIL.)
(FLIPSWITCH id boole)
: EXPR
Id must be an identifier, and be assigned a value. Id is assigned NIL if boole is NIL, T else; and the old value of id is returned.
(FLUSHCHANNEL chn)
: MACRO
Flush the output to the output channel (stream) chn.
(IBIDNOOPFCN any)
: EXPR
Just returns any. (Useful with COPYD in case some no-operator variants are wanted in some modes.)
(LAPIN filen)
: EXPR
Open the file with name filen; reads and evals successively each s-expression therein (if not redirected as some evaluation side effect) until end-of-file is reached, and closes the file. (Unspecified return value.)
(LASTCAR lst)
: EXPR
Returns the last item of the list lst.
(LASTPAIR (list) (COND ((NULL (CDR list)) list)

Returns the last top level pair (consisting of the last item and NIL) of the list lst.
(LCONC ptr lst)
: EXPR
ptr should be a dotted pair consisting of a list and of its LASTPAIR. This list is concatenated with the list lst, and the CDR of ptr is changed to the LASTPAIR of the prolonged list. (lst may be NIL.) (Unspecified return value.)
(LISTCOPY lst)
: EXPR
Returns a copy of the list lst; but copying is done only on the top list level.
(LISTONENOOPFCN0)
: EXPR
(LISTONENOOPFCN1 any)
: EXPR
(LISTONENOOPFCN2 any1 any2)
: EXPR
Just returns a freshly constructed list. (Useful with COPYD in case some no-operator variants are wanted in some modes.)
: FEXPR
For each identifier (member of lid), checks whether this is function bound to a macro, defined as a lambda expression. If so, eval this expression (with NIL bound as argument). This is only intended for 'self loading MACROs', where it efficiently forces the intended loading (and replacement of the MACRO definition by an EXPR or FEXPR one), without or before calling the function. (Useful in case self loading MACROs are called in compiled code as EXPRs or FEXPRs. Since the 'self loading MACRO' trick is principally intended for use with top level procedures, this should rarely happen.)
(MERGESTRINGS string string)
: EXPR
Returns the concatenation of the two strings.
(MINUSP no)
: EXPR or MACRO
Returns non-NIL iff the number no is negative.
(NCONS any)
: EXPR or MACRO
Returns (CONS any NIL).
(NILNOOPFCN0)
: EXPR
(NILNOOPFCN1 any)
: EXPR
(NILNOOPFCN2 any1 any2)
: EXPR
(NILNOOPFCN3 any1 any2 any3)
: EXPR
(NILNOOPFCN4 any1 any2 any3 any4)
: EXPR
Just returns NIL. (Useful with COPYD in case some no-operator variants are wanted in some modes.)
(OFF id)
: FEXPR
Sets the identifier whose name is the name of the identifier id preceeded by an asterisk ( * ) to NIL. (Unspecified return value.)
(ON id)
: FEXPR
Sets the identifier whose name is the name of the identifier id preceeded by an asterisk ( * ) to T. (Unspecified return value.)
(ONENOOPFCN1 any)
: EXPR
(ONENOOPFCN2 any1 any2)
: EXPR
Just returns 1. (Useful with COPYD in case some no-operator variants are wanted in some modes.)
(PAIRCOPYD alist)
: EXPR
alist should be an association list of identifiers; the second one in each pair should be a function name. PAIRCOPYD copies the function definition from the second identifier to the first one in each of the pairs. (Unspecified return value.)
(PNTH lst no)
: EXPR
lst should be a list of LENGTH greater than or equal to the positive integer no. Returns the no'th top level pair of the list (so that (PNTH lst 1) is EQ to lst, (PNTH lst 2) is EQ to (CDR lst), et cetera).
(PRINTX any)
: EXPR
Sometimes succeeds in printing an "unprintable object".
: EXPR
A READ is performed, and the result returned. If reading is connected with prompting, the string should be used for prompt.
(PRUNEFIRSTDEGREEITEM dlany int)
: EXPR
dlany must be a non-empty degree list. If the first degree appearing on dlany is int, then (CDR dlany) is returned; else, dlany is returned.
(RECLAIM)
: EXPR or MACRO
Performs a garbage collection. (May be a no-operator in some versions.) (Unspecified return value.)
(SETVECTPROG id no)
: EXPR
Creates a new vector of length no + 1 and name id, and successively reads the next no + 1 s-expressions (without evaluation), assigning the vector entries to these. (Unspecified return value.) (Useful for reading in very large vectors without overtaxing the recursive depth of the lisp reader.)
(SETPROMPT string)
: EXPR
Set the prompt string to prompt.
(STRIPEXPLODE atm)
: EXPR
Returns the same as EXPLODE on the atom atm, except that if atm is a string its enclosing double quotes are removed.
(TCONC ptr any)
: EXPR
ptr should be either a dotted pair consisting of a list and of its LASTPAIR, or NIL. This list is concatenated with a new dotted pair formed by any and NIL, and the CDR of ptr is changed to this dotted pair. If ptr is NIL, then a list of the one element any is formed, and the dotted pair of this list and its LASTPAIR (i.e., itself) is returned; else (the modified) ptr is returned.
(TCONCPTRCLEAR ptr)
: EXPR
ptr should be a dotted pair consisting of a list and of its LASTPAIR, as returned by successive applications of TCONC. This is modified by removing all after the first element of the list. The modified ptr (which now is EQUAL to the result of (TCONC NIL (CAAR ptr))) is returned.
(TIME)
: EXPR or MACRO
Returns an integer more or less measuring the "cpu time" of the bergman session until now. (Not necessarily available in all versions.)
(TNOOPFCN1 any)
: EXPR
Just returns T. (Useful with COPYD in case some no-operator variants are wanted in some modes.)
(UNION lst1 lst2)
: EXPR
Returns a list containing the elements in the list lst1 and lst2, avoiding repetitions of EQUAL members of both lists. (If several members in one of the lists are equal, then however this `'redundancy" may be carried over to the new list.)
(ZEROP any)
: EXPR
Returns non-NIL iff any is EQN to the number 0.

## 4.2  Formal description of bergman

### 4.2.1  Organisation of the programme source files

There is a certain amout of modularisation of bergman. The programme is divided into 'units', each of which corresponds to one or several separate files. In these it is noted which procedures and special variables are "imported" from other units, and which "exported", i. e., used in other units. This does NOT constitute "modules" in the C sense, since almost all procedures are defined and equally available everywhere in the final programme. In order to disencourage the use of lower level procedures or variables in ordinary applications, these use mixed upper and lower case letters (which makes them harder to access directly when the flag RAISE is on, as it generally is). There are some exceptions in upper cases; these are listed as "available" (if not exported), documented, and intended for general use.
As a matter of fact, the code to a high extent is written AS IF it were truly modularised. Thus there are in general only some specified procedures from one module used in the others, and these and their action are documented in the file protocol.txt, which one can find into the bergman documentation area. Very often such procedures are defined in different versions. In fact, "to change mode" in bergman mainly means "to replace one set of function definitions with another".
Each unit is referred to in comments by its "bare name" 'foo'. The corresponding source file has the bare name suffixed by .sl; compiled versions, et cetera, will of course have other extensions. Thus, the source files of the monomial manipulation unit 'monom' and 'ncmonom' are named monom.sl and ncmonom.sl, respectively; in both, versions of the "exported" monomial manipulation procedures are defined, in commutative and non-commutative variants, respectively.
There are also some "header" files, with macros and with some general lisp procedures; and "file handler" files, used to compile the source files and to add some top level interface procedures. These files probably are more sensitive to changes of system than the 'ordinary' source files; you may wish to or have to rewrite some of them.

### 4.2.2  Overview of the (main) units and source files

"FILE HANDLER" FILES:
 compan.sl Performs the compiling of sourse files for Anick reslolution and Betti numbers computation compile.sl Compiling all main units bmtop.sl Loads main compiled units and creats bergman topproc.sl Contains the top-of-the-top level functions
 macros General macro file (used in all compilation) accmacr Macro files used when compiling SAWS unit(s) subsmacr midmacr anmacros Macros for Anick procedures
STANDARD LISP EXTENSIONS:
 slext Defining procedures not in the Standard Lisp document. (Uses macros.sl. May be used in the compilation of all other files)
CENTRAL UNITS:
 main Main functions; S-pair constructions strategy Graph component algorithm for eliminating redundant S-polynomial caculations modes Mode changes
INTERFACE:
 inout Input and output routines modinout Input and output routines for modules alg2lsp PSL, Maple- and Reduce-like input parcer procedures. aninterf Interface for Anick modules bnminout Input and output routines for Anick modules t_inout
MONOMIALS AND POLYNOMIALS:
 monom Monomial handling (including puremon manipulations) ncmonom Non-commutative monomials handling (including puremon manipulations) reclaim Garbage collection routines. (Could be dependent on everything else, including on the machine) normwd Normal form calculations, and other polynomial handling reduct Contains some general routines, and some specific for the char 0 case polynom General polynomial routines
COEFFICIENTS:
 coeff Coefficient arithmetic handling. Contains mainly means to use for changing or modifying the coefficient arithmetics; e. g., by calling on a modulus changer auxiliary char0 Default ( = characteristic 0) coefficient manipulation procedures
ANICK UNITS
 anbetti Calculating Betti numbers bnmbetti chrecord Working with chains diffint Calculating resolution tenspol. Tensor polynomials gauss Some linear algebra
SPECIAL PURPOSE AUXILIARY UNITS
 odd Modulus changer auxiliary, compiled and (re)loaded when a characteristic > 2 (without 'look-up logarithms') is set logodd Modulus changer auxiliary, compiled and (re)loaded when a characteristic > 2 is set, while the 'look-up logarithms' is active char2 Modulus changer auxiliary, loaded when the characteristic is set to 2 pbseries Loaded when the double Poincare-Betti series or the Hilbert series of the associated non-commutative monomially related algebra is demanded hseries Hilbert series handling hscom Commutative Hilbert series calculation sermul Series multiplications checkstg, These files are compiled into the file stg.b, which should accproc, be loaded automatically (from stagsubstance.sl) when any subsproc, SAWS (Staggering Algorithm With Substance) procedure stg, is called monomstg, bind, write, ideal
SOME OTHER THINGS:
 auxil Extras, not necessary for ordinary usage. debug Debugging facilities (only for development usage). Not compiled (as standard). homog Procedures enabling non-homogeneous input and output; under development. Not compiled (as standard).
These units do not include any user interface (or e.g. Reduce interface) worthy of mention.

### 4.2.3  Basic structures and naming conventions

Here we give an informal description of the "types" communicated between the "modules" of bergman. The actual 'recursive definitions' are only suggestions, since the 'parts' of an object should not be accessed directly, but only by means of the procedures described in the protocol file and by the macros in macro.sl.
We are not concerned about differences between 'objects' being represented by pointers or not, here; however, in Lisp we mostly automatically have indirection.
Several objects will be composed of others by recognised Lisp operations, forming lists or (other) dotted pairs. A special such construct is the degree list. (This was introduced, since bergman is handling quite a number of homogeneous objects, and often has use of accessing them sorted by degree.)
In "Lispish" terms, a degree list DL (of type dlXXX) is an association list, where the antecedents form an increasing sequence of integers (the "degrees"). More precisely, the degree list is a list of lists, say DL = (list_1 list_2 list_3 ...), where for each i the car of list_i is an integer int_i, and the rest of the elements on list_i are objects of type XXX; i.e., list_i = (int_i . tail_i), where tail_i is of type lXXX. The integers must fulfil int_1 < int_2 < int_3 < ... . The XXX objects in Cdr(list_i) normally are said to have "degree int_i". (In many cases, DL always will fulfil the extra property that (as soon as any active change of the list is concluded) each tail_i is non-NIL. Such a degree list is called pruned.)
The prefix gen- always denotes: also NIL is a legal object. dp- , l- , dl- denotes dotted pairs lists, and degree lists, repectively. (gen- should only be used together with a type definition NOT allowing NIL as a legal object.) Thus we have the following "type macros" (or "templates"):
 genXXX ::= 〈NIL | XXX〉 dpXXX ::= 〈XXX〉〈XXX〉 lXXX ::= 〈NIL〉 | 〈XXX〉〈lXXX〉 dlXXX ::= A special kind of l(intlXXX)
General Lisp types (abbreviated):
 atom ::= 〈id(ent(ifier)) | number | string | ...〉 any ::= 〈atom | dpany〉 bool ::= 〈 any 〉
For a complete description of Standard Lisp types, see the Standard Lisp report [18]. The type äny" above includes all bergman types below, although the programmer should treat all of these not prefixed by dp-, l-, or dl- as undivisible units from the general Lisp procedures point of view. Bool denotes (quasi) boolean variables. The reserved Lisp identifier NIL is considered as standing for "false". Any other Lisp item stands for "true". (This follows ordinary Lisp conventions; which means that bool output behaves as one might expect with logical Standard Lisp procedures such as AND, COND, OR, and NOT. Likewise, it is permitted to treat an object of type genXXX as a bool, employing the fact that it is "false" if and only if it is NIL, and hence is "true" if and only if it is of type XXX.)
Coefficient types:
Primitive: redandcoeff, redorcoeff, in_form_coefficient, out_form_coefficient.
 coeff ::= 〈redandcoeff | redorcoeff | ratcoeff〉 ratcoeff ::= 〈redandcoeff〉 〈redandcoeff〉 genredandcoeff ::= 〈redandcoeff | NIL〉 genredorcoeff ::= 〈redorcoeff | NIL〉
Implementations of internal coefficients (at present):
 redandcoeff ::= 〈inum | bignum | unsigned inum | unsigned bignum | Standard_Form〉 redorcoeff ::= 〈inum | bignum | unsigned inum | unsigned bignum | Standard_Form〉 in_form_coefficient ::= 〈fixnum | Standard_Form〉 out_form_coefficient ::= 〈fixnum | Standard_Form〉
Monomial types:
Primitive: revlexpuremon, lexpuremon, ncpuremon, revlexmonquot, lexmonquot, ncmonquot, ... .
 puremon ::= 〈revlexpuremon | lexpuremon | ncpuremon | ...〉 monquot ::= 〈revlexmonquot | lexmonquot | ncmonquot | ...〉 augmon ::= 〈monptr〉 〈monaugplist〉 〈puremon〉 monptr ::= 〈any〉 monaugplist ::= 〈any〉 mon_factor_data ::= 〈bool〉 exptno ::= 〈unsigned int〉 varno ::= 〈unsigned int〉 degree ::= 〈int〉
The puremon and quotmon types might be radically different for different ring setups. When the ring setup modes are changed, no conversion of existing monomial structures is performed; but the access procedures for such structures are. Thus, e.g. performing MONLESSP on a pair of monomials formed when in another monomial mode yields unpredicted and potentially damaging results.
Similarly, mon_factor_data depends on monomial modes. However, it also is of boolean type, whence tests for being NIL or not are safe.
Types used internally in hseries:
 hsflag ::= 〈bool〉 hsmon ::= 〈exptno〉 〈lexptno〉 hsflagmon ::= 〈hsflag〉 〈hsmon〉 hsmonid ::= 〈lhsflagmon〉 hsredmonid ::= 〈hsmonid〉 hsmoniddata ::= 〈varno〉 〈lhsredmonid〉 hsmask ::= 〈hsmon〉 hscoeff ::= 〈bignum〉 hsterm ::= 〈hscoeff〉 〈degno〉 hsnum ::= 〈lhsterm〉 hsdendeg ::= 〈degno〉 (gen)hsnumdendeg ::= 〈hsnum〉 〈hsdendeg〉 hssplitnum ::= 〈hsnum〉 〈hsdendeg〉
The monomial (augmented) property list procedures should be hand-set. We only access them by means of LGET, LPUT, and LPUT!-LGET.
Term ( = Coefficient-Monomial) types:
 redandterm ::= 〈redandcoeff〉 〈augmon〉 redorterm ::= 〈redorcoeff〉 〈augmon〉 ratterm ::= 〈ratcoeff〉 〈augmon〉 term ::= 〈coeff〉 〈augmon〉, = 〈redandterm | redorterm | ratterm〉
Polynomial types:
 pureredand ::= 〈NIL〉 | 〈redandterm〉〈pureredand〉 pureredor ::= 〈NIL〉 | 〈redorterm〉〈pureredor〉 purepol ::= 〈pureredand | pureredor〉 (gen)augredand ::= 〈polhead〉 〈pureredand〉 (gen)augredor ::= 〈polhead〉 〈pureredor〉 (gen)qpol ::= 〈polhead〉 〈pureredand〉 (gen)augpol ::= 〈polhead〉 〈purepol〉 , = 〈augredand | augredor | qpol〉 redandposition ::= 〈augredand〉 | 〈qpol〉 | 〈pureredand〉 redorposition ::= 〈augredor〉 | 〈pureredor〉 polposition ::= 〈redandposition | redorposition〉 polheads ::= 〈NIL | ratcoeff | polpriorities〉 polpriorities ::= 〈unsigned long〉
The redandpositions (redorpositions) are intended to be the (non-NIL) results of zero or more successive PolTails on an augredand or a qpol (an augredor, respectively). A term ät" a polposition is the Lt of the PPol part of the polposition.
An augpol is incomplete if its purepol part is NIL. In most cases, the zero polynomial should be represented by NIL. Thus, if some (destructive) algebraic operations on a polynomial might yield a zero result, one should check whether or not the purepol part is NIL; and if so, return NIL rather than the corresponding incomplete augpol. The test preferrably should be done by means of the macro PPol0!?.
Polheads may be implemented in some smarter way in C. We use it for polpriorities in augredors and for ratcoeffs in qpols. We do not access these with the same macros, so there should be no trouble. The polpriorities type suggested below has the weakness that it is supposed to be user implementable. In the present implementation, it is set to the number of terms in the polynomial (whence it is unsigned and does not exceed the length of the longest polynomial; this length however often is greater than 256 and probably might exceed 65536 as well). The user might wish to use negative integers, too!
Strategic types:
 critpairs ::= 〈any〉 binno ::= 〈unsigned char〉 (gen)degno ::= 〈unsigned int〉 bgsize ::= 〈unsigned int〉

### 4.2.4  Global structures and programme outline

The most important global structures are:
• InPols, the input polynomials (the original ideal basis);
• cInPols, ditto of current degree;
• SPairs, the pairs of LeadMons to investigate;
• cSPairs, ditto of current degree;
• GBasis, the Gröbner basis; and
• cGBasis, the new Gröbner basis elements (of current degree).
They are described below. "Current degree" here stands for "The value of the global variable cDeg".
InPols is organised as a list of (zero or more) degree-lists, where each degree-list has a degree NUMBER as its car, and a positive number of AUGMENTED POLYNOMIALs (ordered increasingly w.r.t their LeadMons) as the rest of its elements. (Of course the polynomials in one degree-list all have that total-degree.) The degree-lists are ordered by increasing degree.
In the beginning of an ordinary application of the main procedure (which is GROEBNERKERNEL) InPols contains all input polynomials. As the work progresses, more and more of these are removed from InPols and processed; thus, in the end InPols is empty. At a given time, InPols contains the input polynomials of higher total-degree than the current degree, while the unprocessed ones of the current degree are listed on cInPols.
SPairs is a list of degree-lists, each of which has a degree as its car and MONOMIALs (of that total-degree) as the rest of its elements. Each such MONOMIAL is the lcm of at least one pair of LeadMons, which has not (yet) been discarded as yielding a non-trivial S-polynomial, a critical pair. Critical pairs are represented by dotted pairs of LeadMons (represented as MONOMIALs). The POINTER of the monomial is a list of critical pairs. The monomials in a degree-list are ordered increasingly; and SPairs is ordered by increasing degree.
In the beginning of an ordinary GROEBNERKERNEL application, SPairs is empty. In the run of the procedure, newly found critical pairs are inserted in it (as elements of POINTERs of MONOMIALs in adequate positions), while the SPair elements of the current degree are moved to cSPairs and (in due time) processed and removed. Thus, in the end SPair once more is empty.
GBasis and cGBasis are lists. Their cars are NIL; the rest of the elements are LeadMons (represented as MONOMIALs) of Gröbner basis elements, ordered increasingly by the appropriate ordering. GBasis contains the gbe's of lower than current total-degree; these are in their final form (if the flag IMMEDIATEFULLREDUCTION is on). cGBasis contains the new-found gbe's of the current degree. They may very well change, due to reduction modulo gbe's found later but with lower ordered LeadMons. However, their LeadMons cannot change!
(The fact that the main structures are GLOBAL variables makes it possible to use the main functions for slightly different purposes. E. g., in order only to perform a reduction of a polynomial P modulo a known Groebner basis B, just do
(RPLACD GBasis B')
(ReducePol P)
where B' is B represented in the above described way. Such variants may be found in 'auxiliaries'.)
The main procedure GROEBNERKERNEL roughly works as follows:
```While InPols or SPairs is non-empty do
begin
cDeg:= the lowest existing degree in InPols and/or SPairs
( = min(caar(InPols),caar(SPairs)), if both exist);
Move the cDeg component(s) of InPols and/or SPairs to cInPols
and/or cSPairs, discarding their cars (i.e., degrees);
While cInPols or cSPairs is non-empty do
begin
If cSPairs is empty, or if car(cInPols) exists, and its
LeadMon   is strictly of lower order than car(cSPairs),
then process car(cInPols), and remove it from cInPols,
else
begin
SP2r:=SPolInputs(car(cSPairs));
For (a.b) in SP2r do
process the S-polynomial POINTER(a)-POINTER(b);
end;
end;
For mon in cdr(cGBasis) do
PRIORITY(POINTER(mon)):=length(POINTER(mon));
If CUSTDISPLAY is ON then call DEGREENDDISPLAY,
else if SAVEDEGREE is ON then call DEGREEOUTPUT;
Consider new LeadMon-pairs among the new gbe's;
Call MonReclaim;
end;

```
Here to process the augmented polynomial pol signifies:
```
begin
NGroeb := ReducePol(pol) (i. e., the normal form of pol);
If NGroeb \$\ne \$ 0 then (we indeed have a new gbe, whence:)
begin
NGroeb and the old gbe's;
Insert NGroeb on its proper place in cdr(cGBasis);
If IMMEDIATEFULLREDUCTION is ON,
then reduce other new gbe's w. r. t. NGroeb;
end;
end;

```
The process SPolInputs (defined in 'compalg' or in 'noncomm') takes a MONOMIAL mon as its argument, which must have a list of critical pairs as its POINTER. It produces (more or less smartly) a final list of pairs of LeadMons of gbe's, from which S-polynomials will be calculated. (As a side effect, POINTER(mon) is changed.)
At the end of the main loop of GROEBNERKERNEL, some more or less optional procedures may be called. DEGREEOUTPUT prints the current degree gbe's, in a form decided by various global or fluid variables, e. g. OutVars, GBasOutChan, and ALGOUTMODE. In order to get its output on the file foo, perform (DEGREEOUTPREPARE "foo") before the GROEBNERKERNEL. (No argument = type on the standard output.) Also perform (ENDDEGREEOUTPUT) or (GROEBNERFINISH) after GROEBNERKERNEL. The form of the output may be governed by assigning ALGOUTMODE different values. (Right now, allowed values are LISP, MACAULAY, PBOUT, and ALG. The latter stands for a "general" (Maple or Reduce type) algebraic form.)
On the other hand, DEGREENDDISPLAY is not defined. Our experience seems to indicate that users often want to customise output. You may do this by defining DEGREENDDISPLAY as any EXPR with no argument, and by turning ON the flag CUSTDISPLAY. In this way you may also e. g. interrupt the calculations at a certain degree.
Finally, MonReclaim is defined in the 'reclaim' unit. Since Gröbner basis calculation often tend to be very space-consuming, effective reclaims may be of considerable value.

## 4.3  Mathematical background

This appendix contains a brief introduction into the Gröbner bases theory for graded algebras and does not pretend to more than a little help to the reader.
Let K be a field and A be a free commutative or non-commutative K-algebra generated by the finite alphabet: the set of variables X. So A is K[X] or KX 〉 and it has a natural K−base, consisting of monomial (including the unity 1). Note that we often use in this book the notions "algebra" and "ring" as synonyms.
We would like to compare any two monomials and there are only two essential restrictions on the ordering > between the monomials. First we demand that no infinite descending chain of monomials f1 > f2 > … exists (for the commutative case it can be replaced by the demand that no one monomial is less than the unity). Second we would like to have some kind of respect to the multiplication, namely:

 f > g ⇒ fh > gh, hf > hg
for any monomial h.
Any ordering with those conditions is called admissible and a few of them are used in this book - we refer to the section 2.4.2 to more complete list. For the simplicity in this section we restrict ourselves by the most typical one, namely DEGLEX, where the monomials first are compared by their length and then (if the lengths are equal) lexicographically. For example, if x > y > z is our ordered alphabet, then we have
 1 < z < y < x < zz < yz < yy < xz < xy < xx <  . . .
in the commutative DEGLEX and
 1 < z < y < x < zz < zy < zx < yz < yy < yx < xz < xy < xx < zzz . . .
in the non-commutative.
Having an ordering we always can choose a leading monomial lm(u) for a given nonzero element uA, i.e. the highest monomial f which has nonzero coefficient αf in the expansion u=∑αg g in our monomial basis. The coefficient itself we will call the leading coefficient and denote it as lc(u). For example if u = xy+3y2+4z2 in one of the orderings above then lm(u)=xy, lc(u)=1.
Let I be an ideal generated in A by some set R, I=(R). If R consists of the homogeneous elements (and this is the main case in bergman) then the factor-algebra A=A /I is a graded algebra,
 A=⊕n=0∞An, An·Am ⊆ An+m
and its Hilbert series HA is defined as
 HA(t)= ∞∑ i=0 dimAntn.
The Hilbert series is a rational function for the commutative case, but not necessarily in non-commutative (even when R is a finite set).
The idea of the Gröbner basis approach is to use the monomials and ordering in A for representing the base, multiplication table and calculating the Hilbert series of the factor-algebra A.
It is quite natural to identify elements of A with the linear combination of monomials, but the main trouble is that different linear combinations can represent the same element. To avoid this problem let us introduce the notion of the normal monomial. A monomial f is normal (relative ideal I and admissible ordering) if it cannot be rewritten in a factor-algebra as a linear combination of the lower monomials. It is easy to show that the normal monomials form a K−base for the factor-algebra A.
For example, if R consists of the monomials only (in this case we speak about the monomial algebra A) then a monomial f is normal if and only if it is not divisible by any of monomials in R. The situation is more complicated in the general case, especially if the algebra is non-commutative and relations are not homogeneous - in this case the problem to decide if the given monomial is normal is algorithmically undecidable!
Fortunately in the cases where bergman mainly works such an algorithm exists and it is the algorithm based on Gröbner basis calculations that is implemented here.
The shortest way to define a Gröbner basis G for an algebra A (more exactly for an ideal I) is to say that it is a subset of I with the property that any monomial that is not divisible by any leading monomial lm(g) for gG is normal. From this definition we see that for monomial algebra A=A/(R) the set R of the monomials is a Gröbner basis. This leads to the main idea: to replace an arbitrary algebra A by a monomial algebra B=A/(S) which has the same set of normal monomials (and, as result, the same Hilbert series) but is much easier to work with. The set of monomials S is nothing else than the set of leading terms { lm(g), gG}.
The multiplication tables for A and B are, of course, different, but knowing the Gröbner basis it is easy to find a multiplication in A too. First we explain the notion of normal form. If a monomial f is not normal it is divisible by some lm(g). Because g=0 in A we can replace the factor lm(g) by the linear combination of lower monomials getting the same element in A. The same procedure can be applied to those new monomials which are still not normal. Because the ordering is admissible this process should stop and we will obtain a linear combination of normal monomials, which by the definition is a normal form of the original monomial. Normal form of the normal monomial f is naturally f itself and we can extend the notion of normal form to any element uA. The process, described above is called the reduction (to normal form). The important property of the reduction is that the result is independent of way in which the reduction is performed. For example if there are two different factors lm(g),lm(h) dividing f it does not matter which of this factor we start with, the final result will be the same.
This property gives the alternative definition of the notion Gröbner basis. The process of reduction, described as above can be applied to any subset GI (when the monomial is called normal in case it is not divisible by any lm(g)). If the result of the reduction is uniquely defined for any element uA the set G is a Gröbner basis.
This also leads to the algorithm of the constructing the Gröbner basis starting from the arbitrary set R, generating I. We put G=R and check possible monomials. If we get two different reduction result from the same monomial we simply add the difference between them to the set G and repeat the check again until all the reductions will be the same. Exactly this (but in a smarter way) degree by the degree does bergman during the calculations.
Note that the normal form of a given element uA is zero if and only if uI, so we decide if two elements are equal in A, if we know a Gröbner basis - their normal forms should be equal. We know how to construct the multiplication table in A: normal monomials form a K−base and the reduction to the normal form calculates the product of two normal monomials.
We refer to Chapters 1, 2 for examples, but note that Gröbner bases theory has in reality much more applications: the art is to translate the mathematical problem to the corresponding factor-algebra problem and to see how Gröbner basis can be used here. The user can find some examples here, but much more advanced applications are in [1,4,9,11,16,19,13,].

## Bibliography

[1]
W.W.  Adams, P.  Loustaunau. An Introduction to Gröbner Bases. - Vol. 3. Graduate Studies in Mathematics - Providence, RI: AMS, 1966.
[2]
D. Anick. On the homology of associative algebras. // Transactions of the American Mathematical Society, v. 296, Nr. 2, 1986. - P. 87-112.
[3]
J. Backelin, S. Cojocaru, V. Ufnarovski. The Computer Algebra Package Bergman: Current State. / In: J. Herzog, V. Vuletescu (eds.). Commutative Algebra, Singularities and Computer Algebra. - Kluwer Academic Publishers, 2003. - P. 75-100.
[4]
T. Becker, V. Wespfening. Gröbner Bases. A Computational Approach to Commutative Algebra. - Graduate Texts in Mathematics 141. - Berlin, Heidelberg, New York: Springer-Verlag, 1993.
[5]
Buchberger, B. On Finding a Vector Space Basis of the Residue Class Ring Modulo a Zero Dimensional Polynomial Ideal (German).- PhD Thesis, Univ of Innsbruck, Austria, 1965
[6]
S. Cojocaru, A. Colesnicov, L. Malahova. Network version of the computer algebra system bergman. // Computer Science Journal of Moldova, v.10, Nr. 2(29), 2002. - P. 216-222.
[7]
S. Cojocaru, V. Ufnarovski. Noncommutative Gröbner basis, Hilbert series, Anick's resolution and BERGMAN under MS-DOS. // Computer Science Journal of Moldova, v. 3, Nr. 1(7), 1995. - P. 24-39.
[8]
D. Eisenbud, D.R. Grayson, M.E. Stillman, and B. Sturmfels (eds.). Computations in algebraic geometry with Macaulay 2. - Berlin, Heidelberg, New York: Springer-Verlag, 2001. - ISBN 3-540-42230-7.
[9]
R.  Fröberg. An Intriduction to Gröbner Bases. - Chichester : John Wiley, 1997.
[10]
J. Grabmeier, E. Kaltofen, V. Wiespfenning (eds.). Computer Algebra Handbook. - Berlin, Heidelberg, New York: Springer-Verlag, 2003. - ISBN 3-540-65466-6.
[11]
E.L.  Green. An Introduction To Noncommutative Gröbner bases. / In: Fisher K.G. (ed.), Computational Algebra, Dekker, New York, 1994. (Lect. Notes Pure Appl. Math, 151): 167-190
[12]
E.L. Green, L.S. Heath, and B.J. Keller. Opal: A system for computing noncommutative Grobner bases. / In: H. Comon (ed.). RTA-97. - LNCS Nr. 1232. - Springer-Verlag, 1997.
[13]
G.-M. Greuel, G. Pfister, and H. Schönemann. Singular 2.0. A Computer Algebra System for Polynomial Computations. Centre for Computer Algebra, University of Kaiserslautern (2001). http://www.singular.uni-kl.de.
[14]
A. C.  Hearn: REDUCE User's and Contributed Packages Manual, Version 3.7, February 1999. Available from Konrad-Zuse-Zentrum Berlin, Germany.
[15]
N. Kajler (ed.). Computer-Human Interaction in Symbolic Computation. - Wien, New York: Springer-Verlag, 1998. - ISBN 3-211-82843-5.
[16]
M.  Kreuzer, L.  Robbiano. Computational Commutative Algebra 1,2. - Heidelberg: Springer-Verlag, 2000, 2004.
[17]
C. Löfwall, J.-E. Roos. A nonnilpotent 1-2-presented graded Hopf algebra whose Hilbert series converges in the unit circle. // Adv. Math. 130 (1997), Nr. 2. - P. 161-200.
[18]
J.  Marti, A.C. Hearn, M.L. Griss, C. Griss: The Standard Lisp Report, ACM SIGPLAN Notices archive. Volume 14, Issue 10 (October 1979) P. 48-68 (see also: http://www.uni-koeln.de/REDUCE/3.6/doc/sl/)
[19]
T.  Mora, G. Pfister, C. Traverso. An Introduction to Tangent Cone Algoritm. / In: Issues in non-linear geometry and robotics. - JAI Press 6, 1992. - P.  199-270.
[20]
J.-E. Roos, B. Sturmfels. A toric ring with irrational Poincaré-Betti series. C. R. Acad. Sci. Paris, Sér. I Math. 326 (1998), no. 2. - P. 141-146.
[21]
J.-E. Roos. Some non-Koszul algebras. / In: Advances in geometry, Progr. Math., 172. - Boston, MA: Birkhäuser, 1999. - P. 385-389.
[22]
B.  Sturmfels. Gröbner Bases and Convex Polytopes. - AMS UNiversity Lecture Series 8. - Providence, 1995.
[23]
V. Ufnarovski. Introduction to Noncommutative Grobner Bases Theory. / In: Grobner Bases and Applications, London Mathematical Society Lecture Notes Series. 251. - London, 1998. - P. 259-280.
Web references
[24]
[25]
CoCoA: a system for doing Computations in Commutative Algebra, Available at http://cocoa.dima.unige.it
[26]
[27]
B. Keller's research page ():
http://people.emich.edu/bkeller/research.html
[28]
